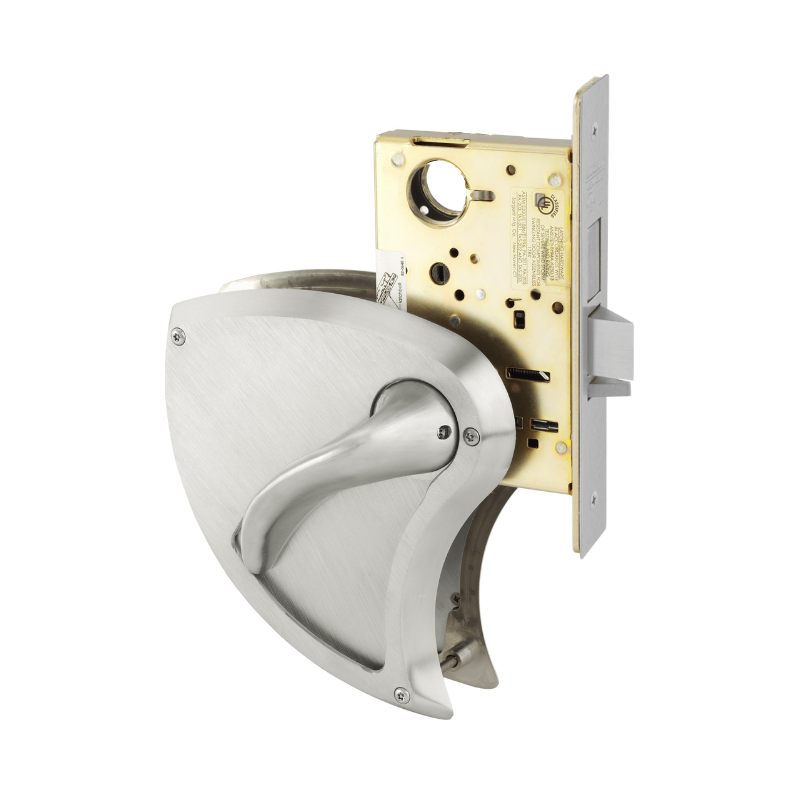

Sargent 8240-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Security Intruder Deadbolt Function, BHW Trim, Less Cylinder, Satin Stainless Steel

Sargent 8240-BHW-US32D-LC Behavioral Health Classroom Security Intruder Deadbolt Function Mortise Lock, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8240-BHW-US32D-LC is a Behavioral Health mortise lock featuring an intruder deadbolt function designed for classroom security. It includes BHW trim, comes without a cylinder, and meets Grade 1 standards. The lock is field reversible and finished in satin stainless steel (630).

• Classroom Security Intruder Deadbolt Function:
  • Key from either side retracts or projects deadbolt which also unlocks or locks outside trim

  • Trim outside retracts latchbolt, except when locked

  • Trim outside is only locked by projecting the deadbolt

  • Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim

  • Auxiliary deadlatch
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
