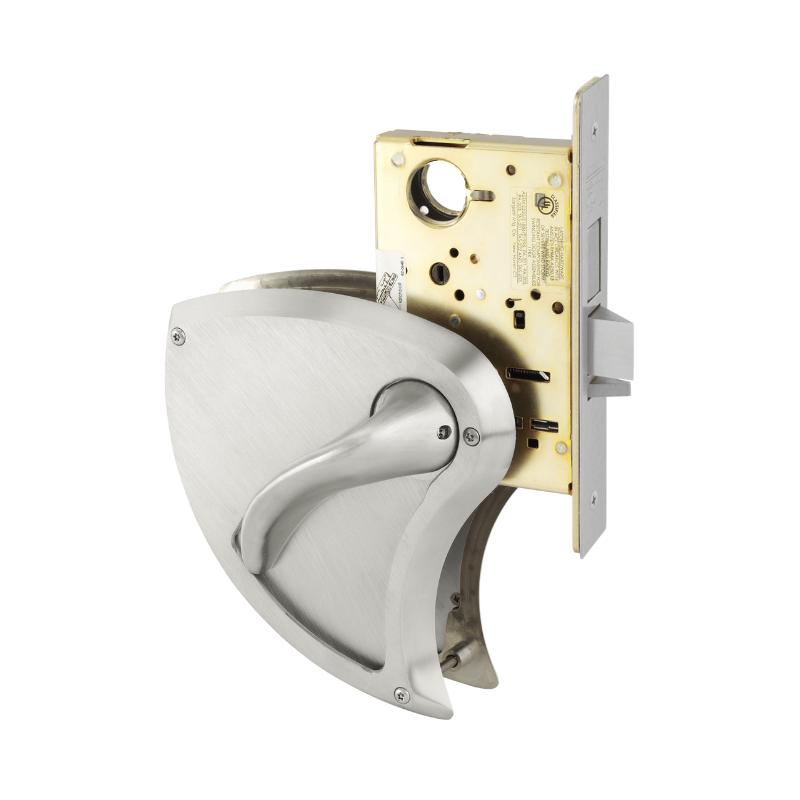

Sargent 8241-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Security Intruder Deadbolt Function, BHW Trim, Less Cylinder, Satin Stainless Steel

Sargent 8241-BHW-US32D-LC Behavioral Health Classroom Security Intruder Deadbolt Function Mortise Lock, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

Sargent 8241-BHW-US32D-LC Behavioral Health Mortise Lock designed for classroom security with an intruder deadbolt function. Featuring BHW trim, this Grade 1 lock is field reversible and comes without a cylinder, finished in satin stainless steel (630).

• Classroom Security Intruder Deadbolt Function:
  • Key from either side retracts and projects deadbolt

  • When deadbolt is projected, 1st key rotation retracts deadbolt, 2nd key rotation unlocks trim outside

  • Key retraction of latchbolt from either side unlocks trim outside

  • Trim outside retracts latchbolt, except when locked

  • Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously and the outside trim remains locked

  • Auxiliary deadlatch
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
