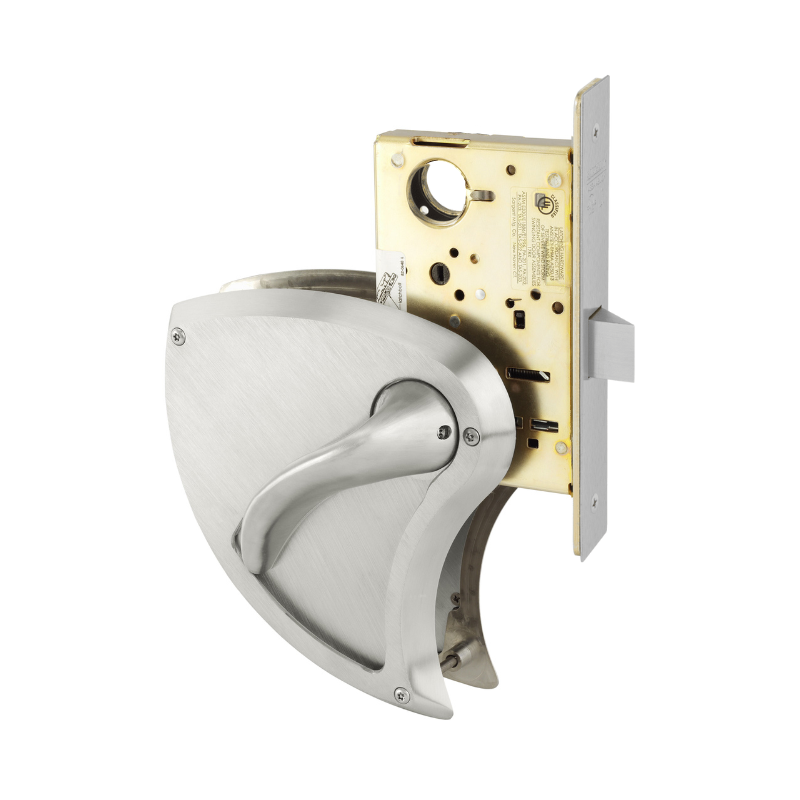

Sargent 8265-BHW-US32D Behavioral Health Mortise Lock, Privacy Bath/Bedroom Function, BHW Trim, Non-Keyed, Satin Stainless Steel

Sargent 8265-BHW-US32D Behavioral Health Privacy Function Mortise Lock, BHW Trim, Non-Keyed, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8265-BHW-US32D Behavioral Health Mortise Lock features a privacy function with BHW trim, designed without a keyed cylinder. It is a Grade 1 lock with a field-reversible design, finished in satin stainless steel (630).

• Privacy Bath/Bedroom Function:
  • Trim outside retracts latchbolt except when locked by thumbturn

  • Trim inside retracts latchbolt and unlocks outside trim

  • Emergency Release locks/unlocks trim outside-by coin, screwdriver or Emergency key (14-0057) ordered separately

  • Thumbturn locks and unlocks trim outside

  • Closing the door will unlock outside trim
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
