Description

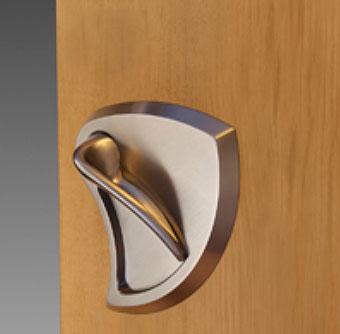

Sargent 28-8265-BHW-US32D Ligature Resistant Privacy Function Mortise Lock, BHW Trim, Field Reversible, US32D/630 Satin Stainless Steel Finish
The Sargent 28-8265-BHW-US32D is a Grade 1 Heavy Duty Ligature Resistant Privacy function Mortise Lock with BHW trim in US32D Satin Stainless Steel Finish. Sargent 28-8265-BHW-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and has BHW which is an innovative solution for behavioral health environments.
| Technical Specs | |
| Function | 65 Privacy |
| ANSI Function |
F22 - Privacy |
| Lever/Knob Design |
BHW Lever |
| Cylinder Type |
Non-Keyed |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
