Product Cut Sheet
Description
Active

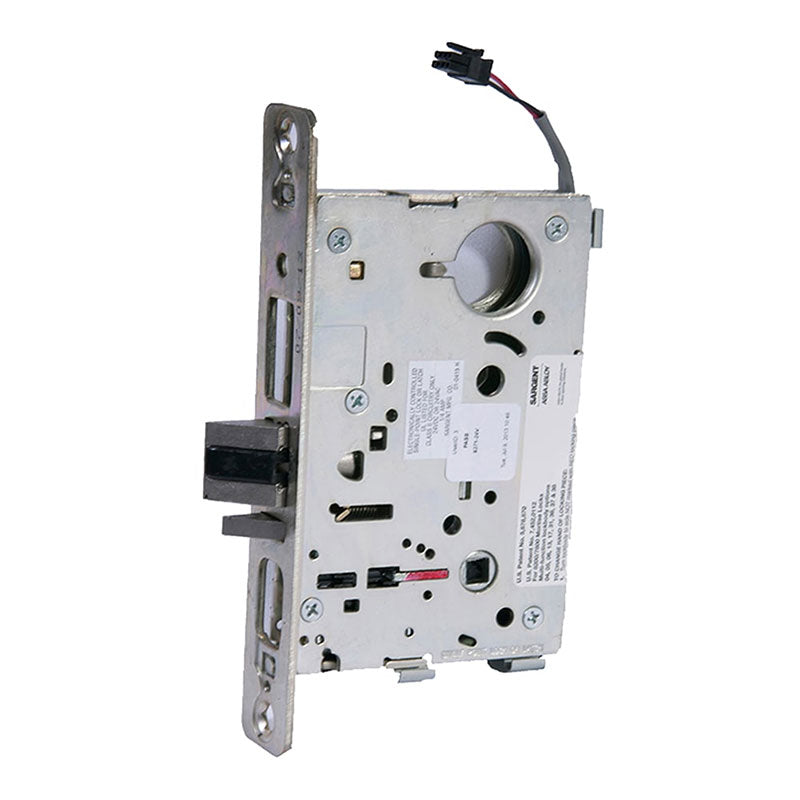

Sargent 8273-12V-US26D Lock Body Only, Electro Mechanical Fail Secure Function, Double Cylinder, 12VDC, Satin Chrome Finish
The Sargent 8273-12V-US26D Lock Body Only features an Electro Mechanical Fail Secure Function and is designed for use with a Double Cylinder. It operates on 12VDC and boasts a sleek Satin Chrome Finish.

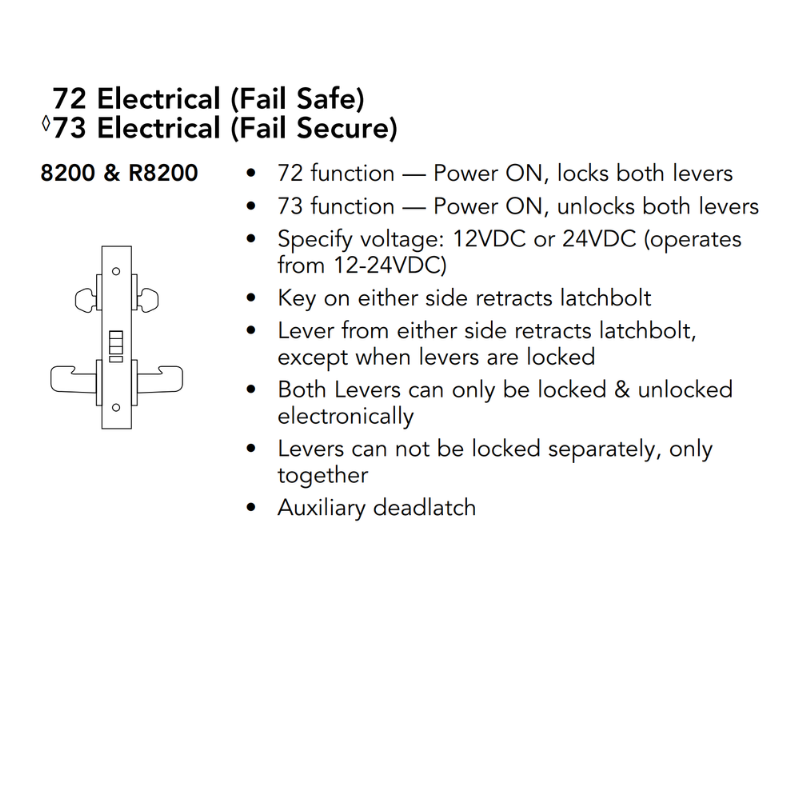

73 Electric (Fail Secure)
- 73 function — Power ON, unlocks both levers
- Specify voltage: 12VDC
- Key on either side retracts latchbolt
- Lever from either side retracts latchbolt, except when levers are locked
- Both Levers can only be locked & unlocked electronically
- Levers can not be locked separately, only together
- Auxiliary deadlatch
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
| Fire Rated | 2 Hours {B} |
| Function |
73-Electrical Fail Secure
|
| Side Locked | Both side |
| Door Thickness | 1 3/4" |
| Latch Type | Dead Latch (Guarded) |
| Latch Backset Dim | 2 3/4 In. |
| Lock Face Size | 8" X 1 1/4" |
| Bolt Projection | 3/4" |
| Strike Number | 82-0110 |
| Strike Type | ASA |
| Strike Height | 4 7/8" |
| Strike Width | 1 1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC |
| Amp Draw | 500mA Peak, 15mA Holding |
| Product Type | Electric Mortise Lock |
