Product Cut Sheet
Description
Active

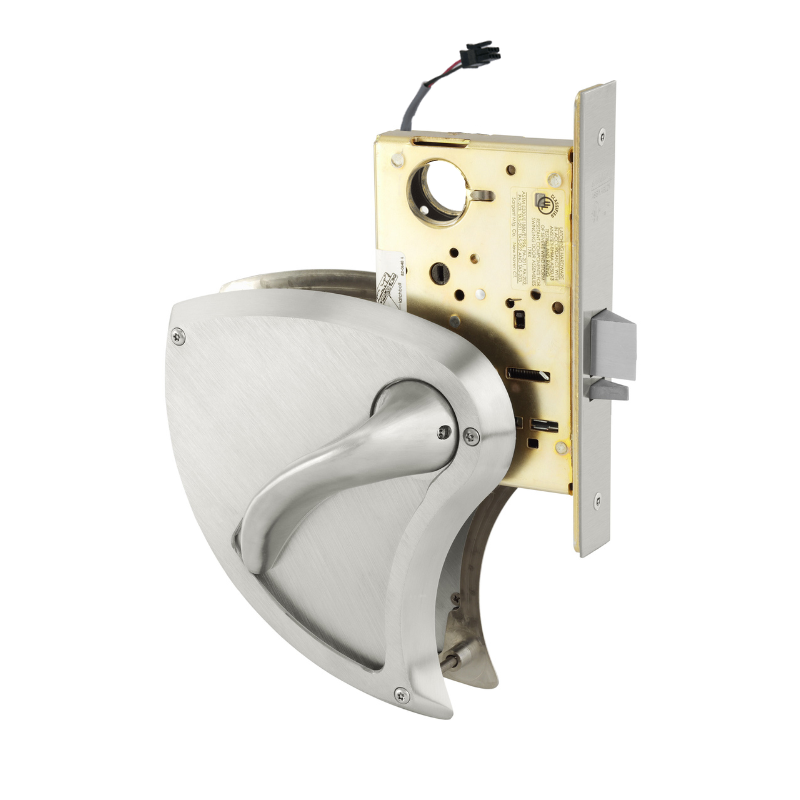

Sargent 8273-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Double Cylinder Fail Secure 24VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent 8273-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock features BHW trim with a double cylinder fail-secure design, operating at 24VDC. This Grade 1 lock is supplied without a cylinder and offers field reversibility. Finished in 630 satin stainless steel, it ensures durability and reliability for demanding healthcare environments.
- Electrical (Fail Safe) Function:
- 73 function — Power ON, unlocks both levers
- Key outside retracts latchbolt
- Lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
- Key on either side retracts latchbolt
- Lever from either side retracts latchbolt, except when levers are locked
- Both Levers can only be locked & unlocked electronically
- Levers can not be locked separately, only together
- Auxiliary deadlatch
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
73 Electrical (Fail Secure)
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
Less Cylinder
|
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
