Product Cut Sheet
Description
Active

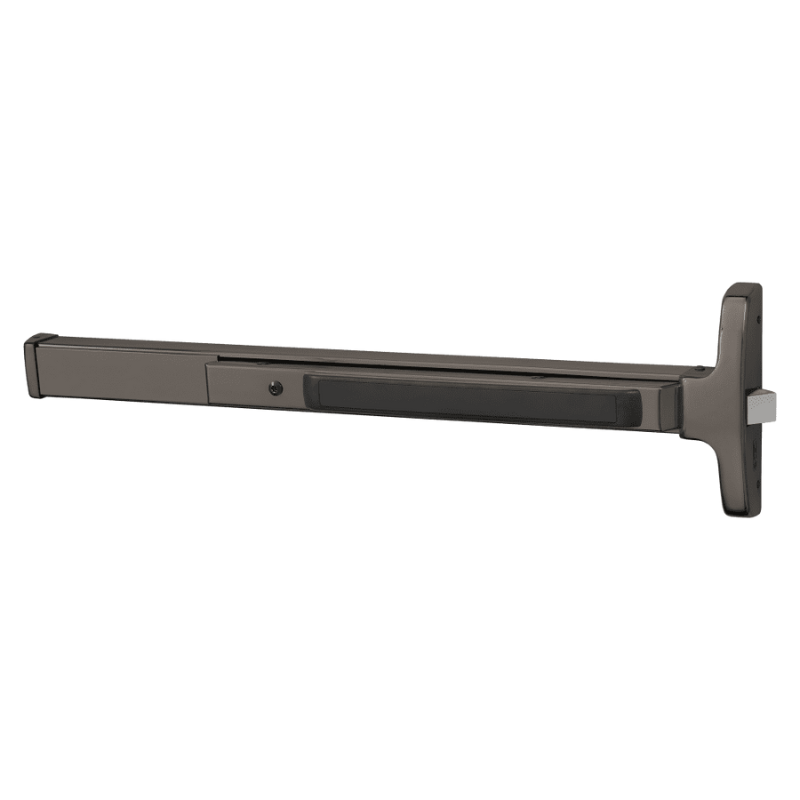

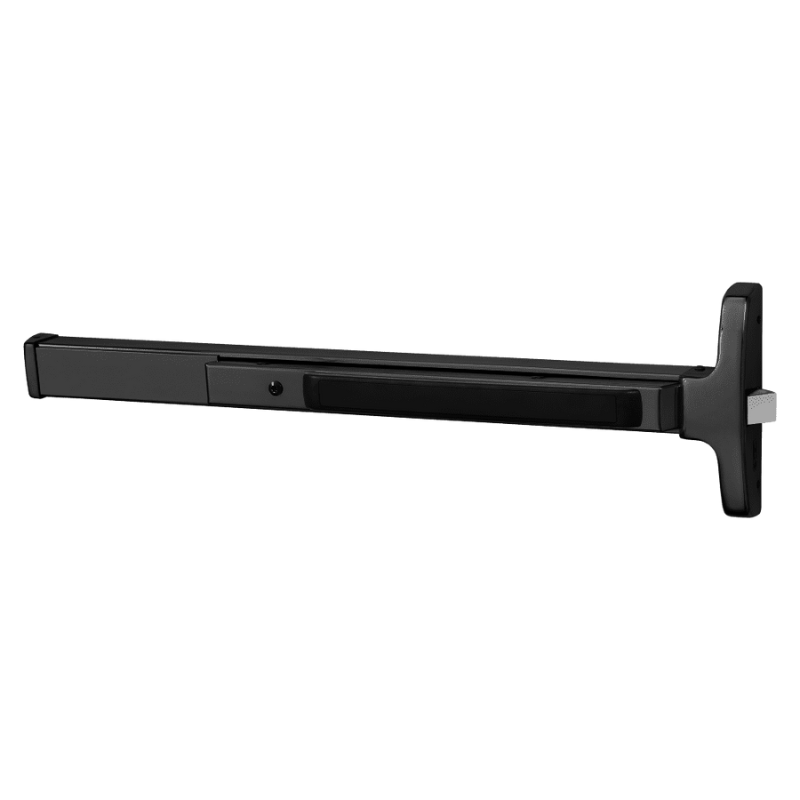

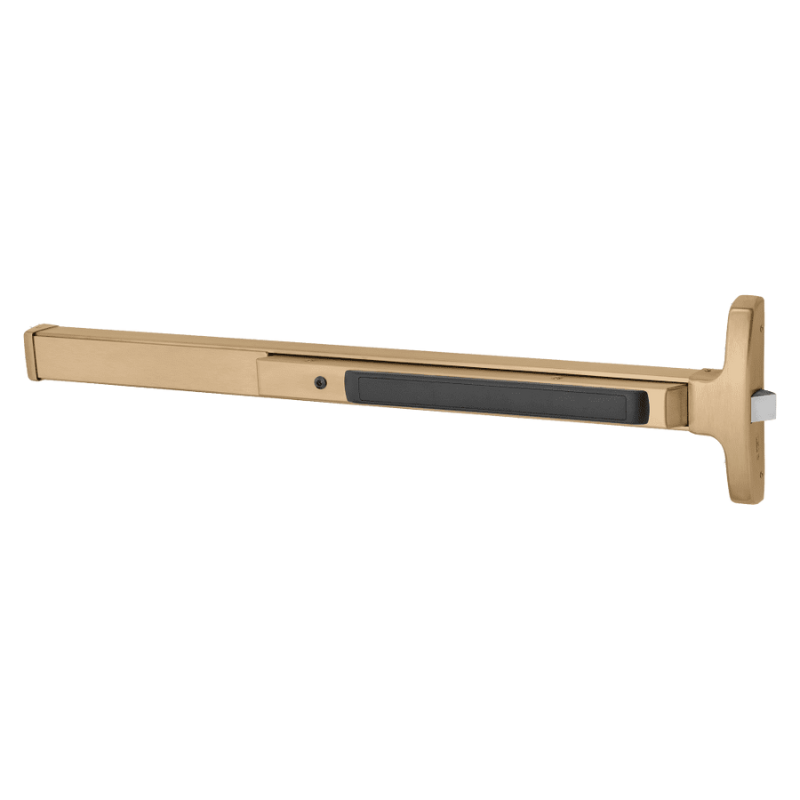

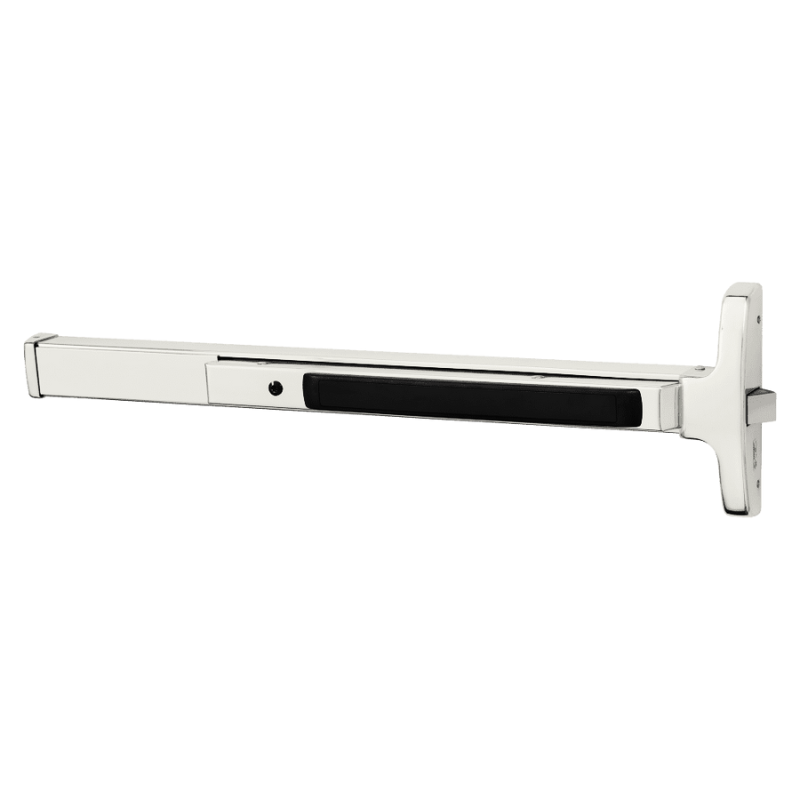

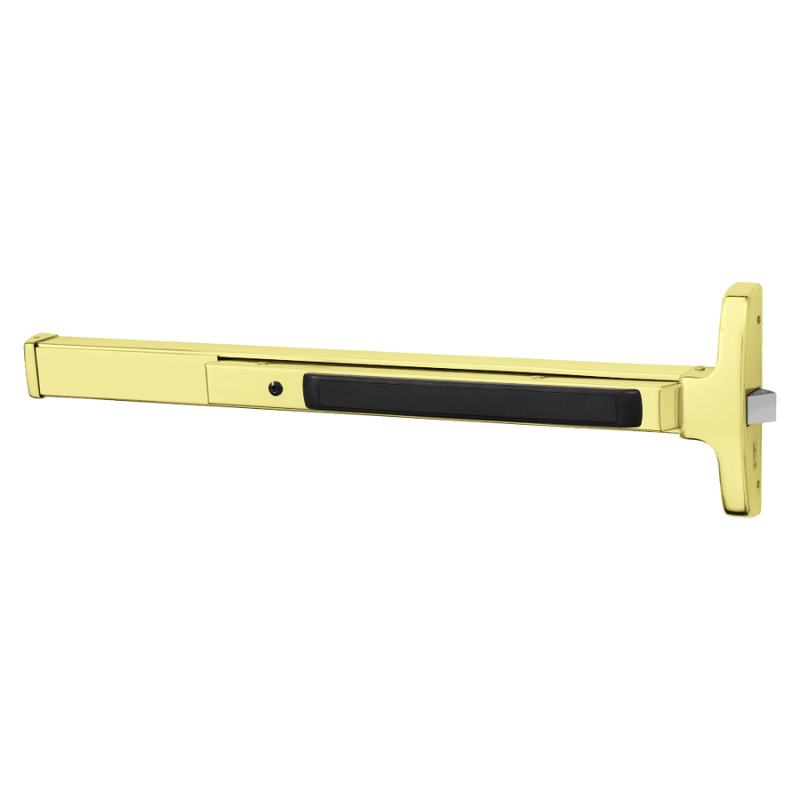

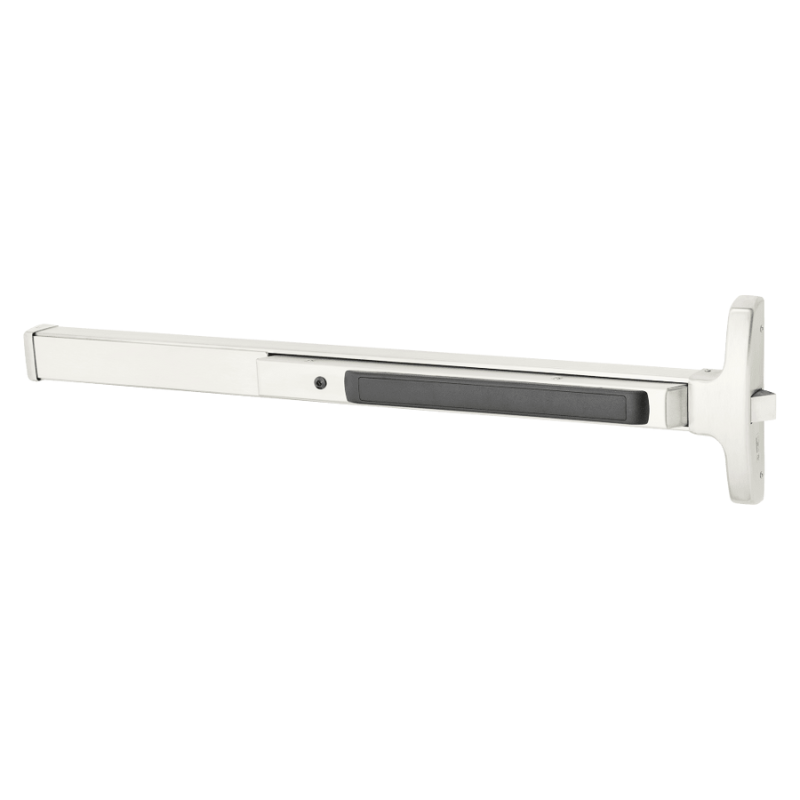

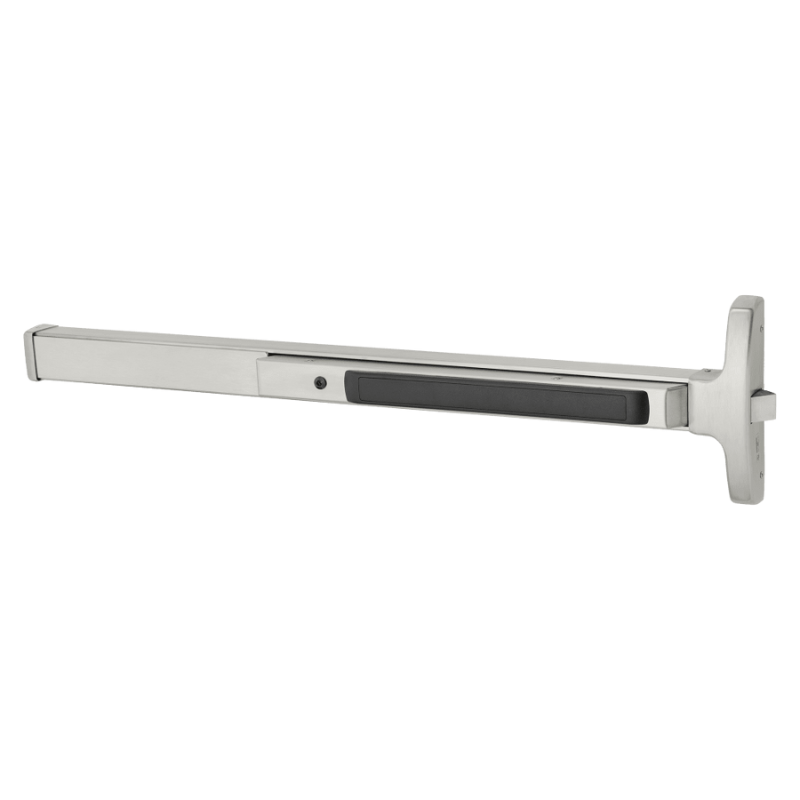

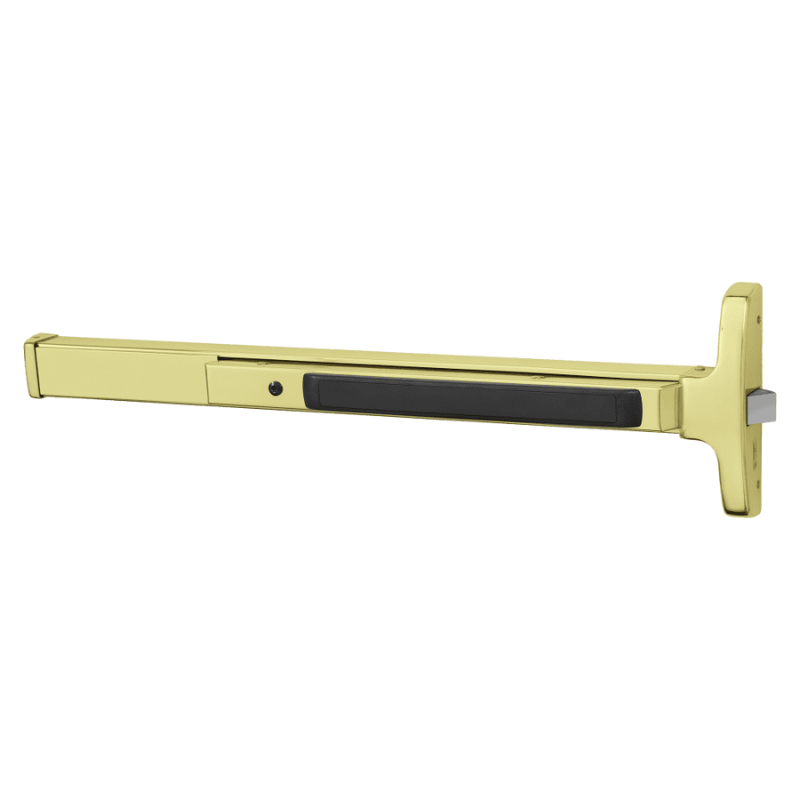

Sargent 8510-F Narrow Stile Rim Exit Device, Exit Only, 33"-36" Dr Width, Reversible, Hex Key Dogging, Grade 1
Sargent 8510-F Narrow Stile Rim Exit Device delivers exit-only functionality with a 33"-36" bar designed for narrow stile applications. This Grade 1 panic bar features field reversibility, hex key dogging capability, and meets rigorous commercial security standards for high-traffic doorways.
- Designed for narrow stile applications (e.g., aluminum frame full glass doors)
- Single and double doors with mullion
- Single point rim latching device
- Quiet operation and solid security
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 36" |
| Includes Trim | No |
| Minimum Stile Size | 2" |
| Door Material | Aluminum |
| Door Width | 33" - 36" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | No |
| Product Type | Rim Exit Devices |
