Description
Active

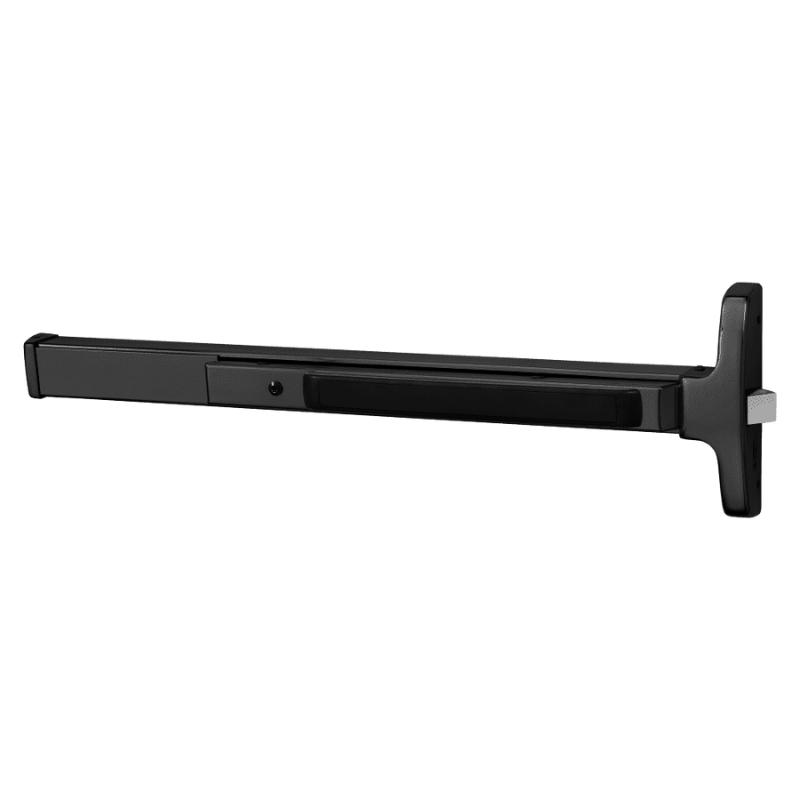

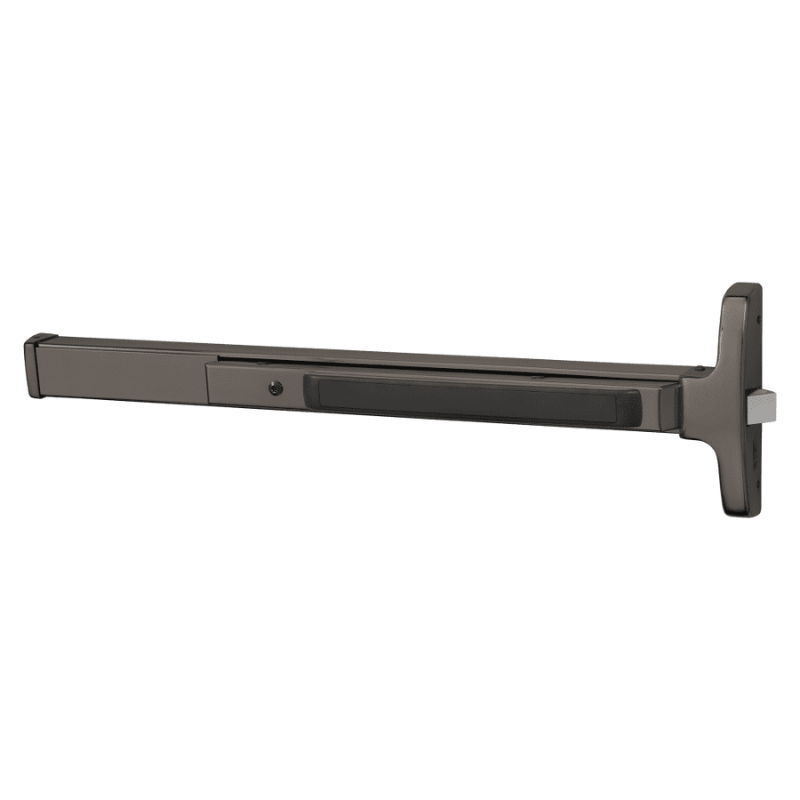

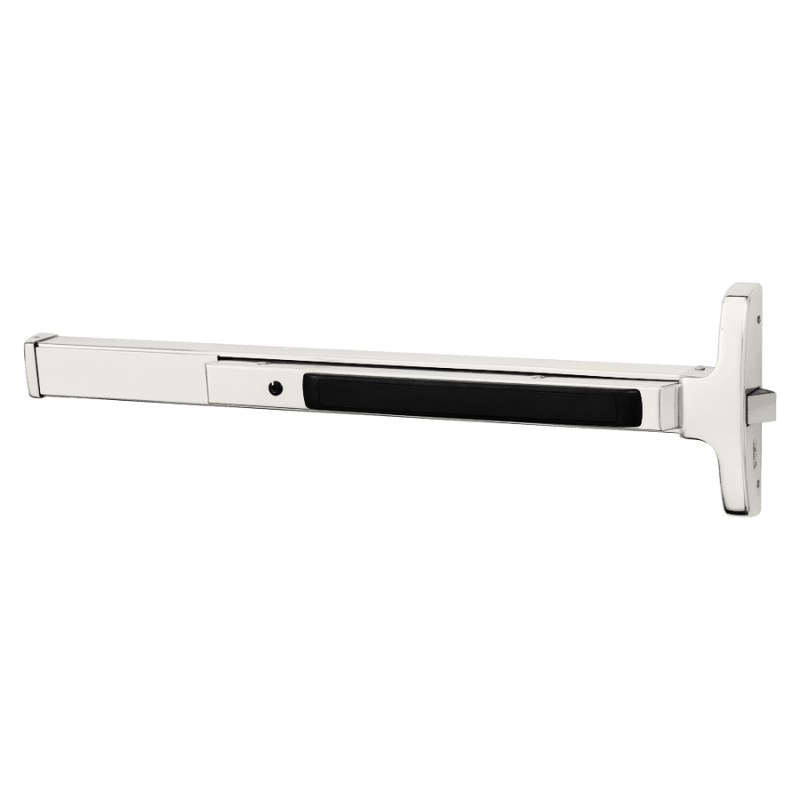

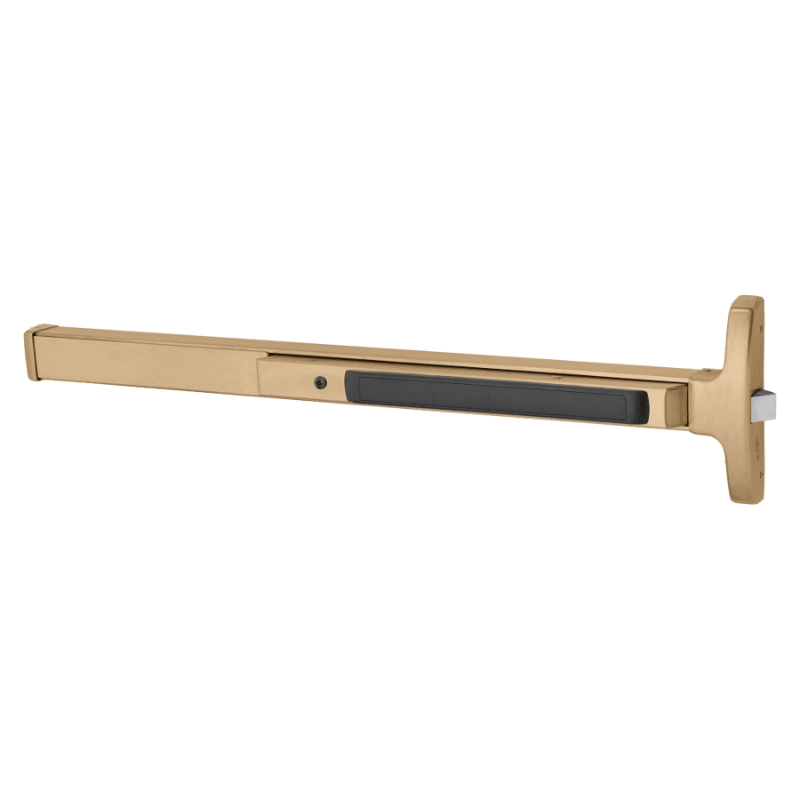

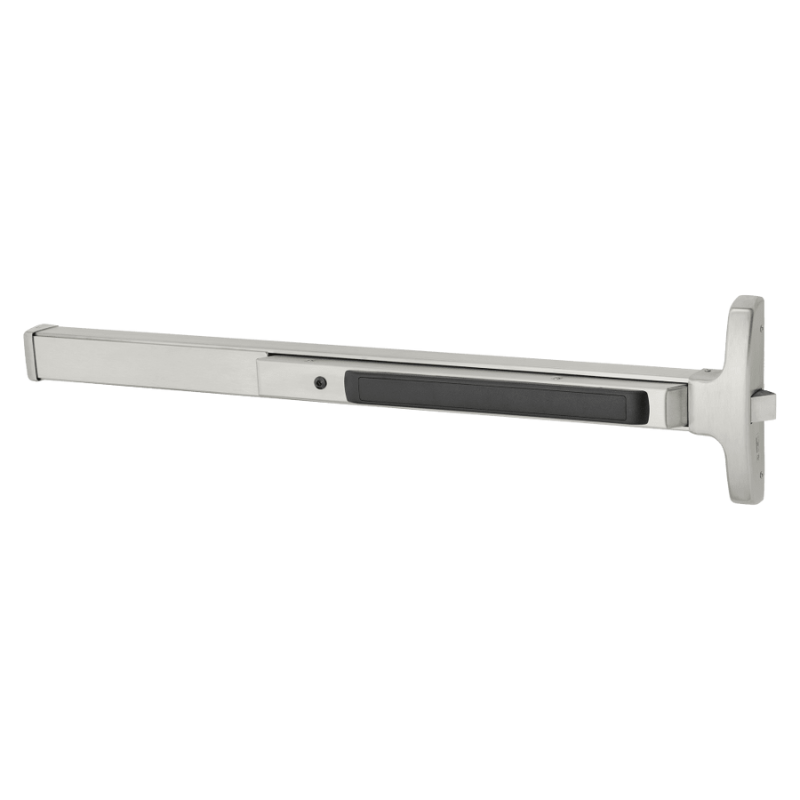

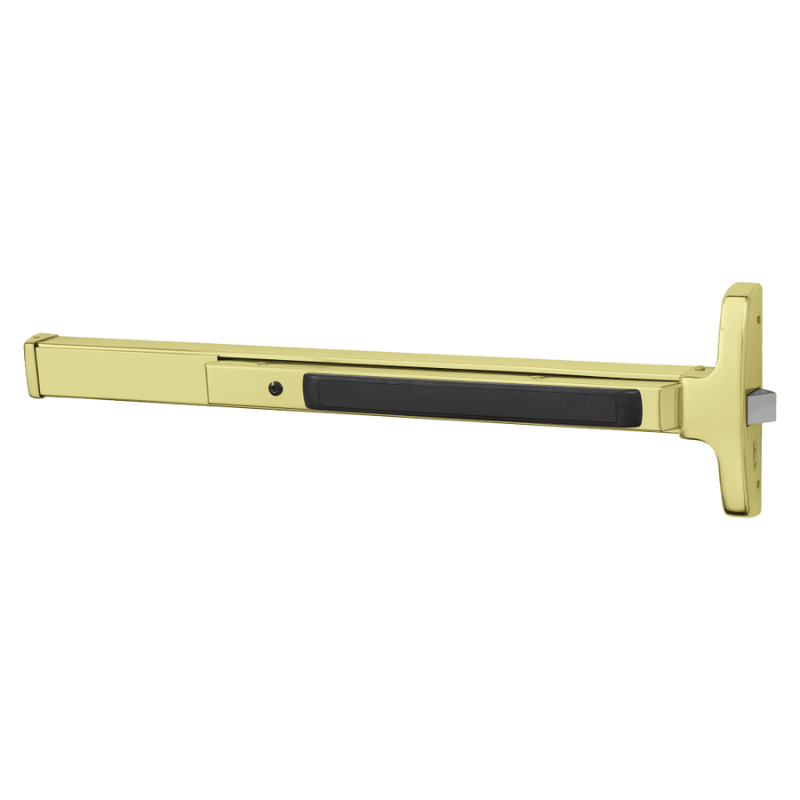

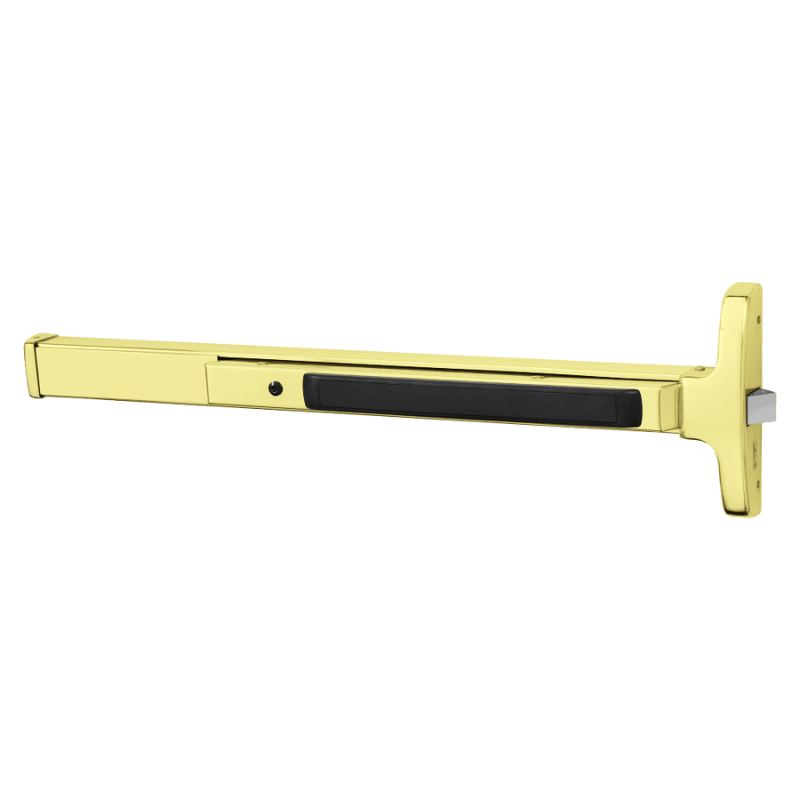

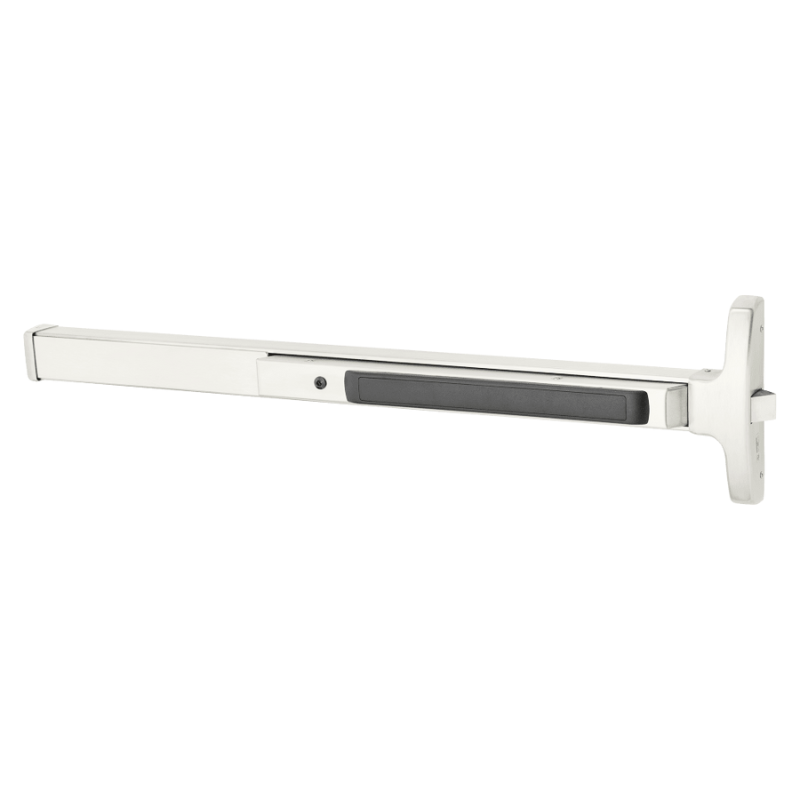

Sargent 8510-J Narrow Stile Rim Exit Device, Exit Only, 37"-42" Dr Width, Reversible, Hex Key Dogging, Grade 1
Sargent 8510-J Narrow Stile Rim Exit Device delivers Grade 1 security for exit-only applications. Features a 37"-42" adjustable bar suitable for various door widths, field reversibility for flexible installation, and hex key dogging. Engineered for narrow stile applications with premium commercial-grade construction.
- Designed for narrow stile applications (e.g., aluminum frame full glass doors)
- Single and double doors with mullion
- Single point rim latching device
- Quiet operation and solid security
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 42" |
| Includes Trim | No |
| Minimum Stile Size | 2" |
| Door Material | Aluminum |
| Door Width | 37" - 42" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | No |
| Product Type | Rim Exit Devices |
