Description

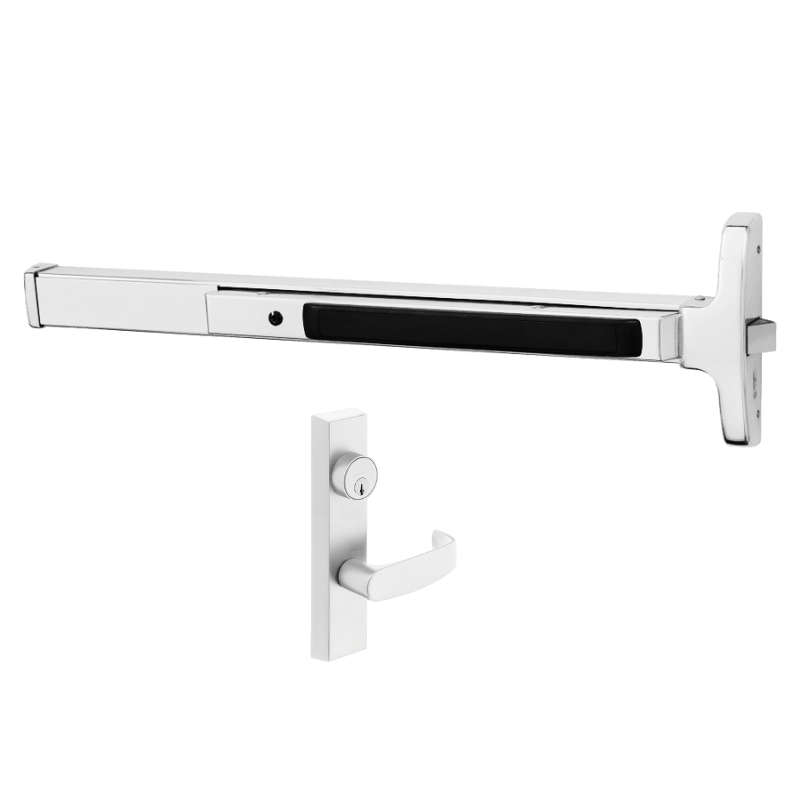

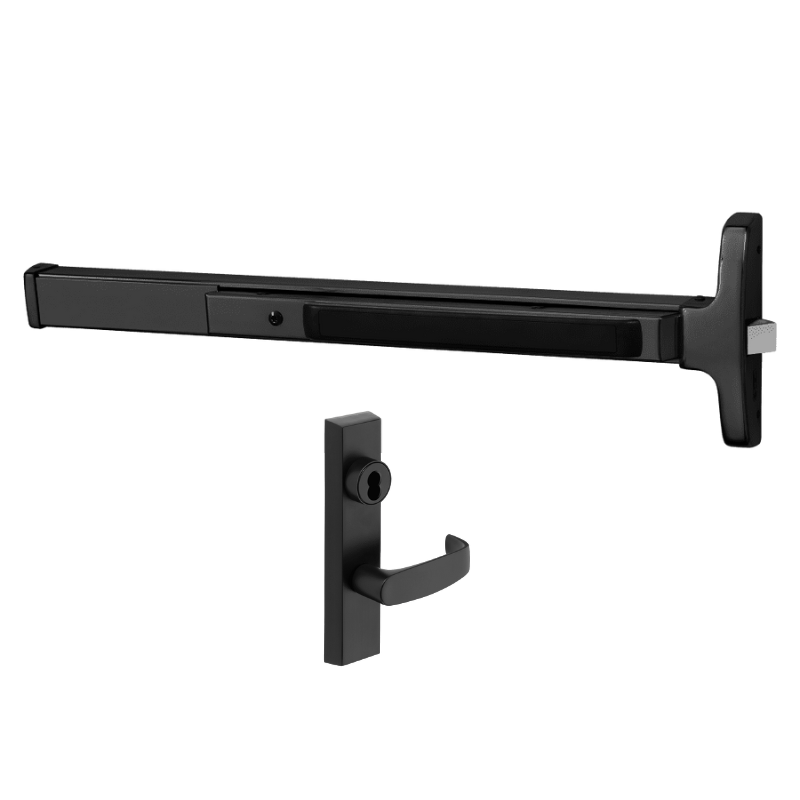

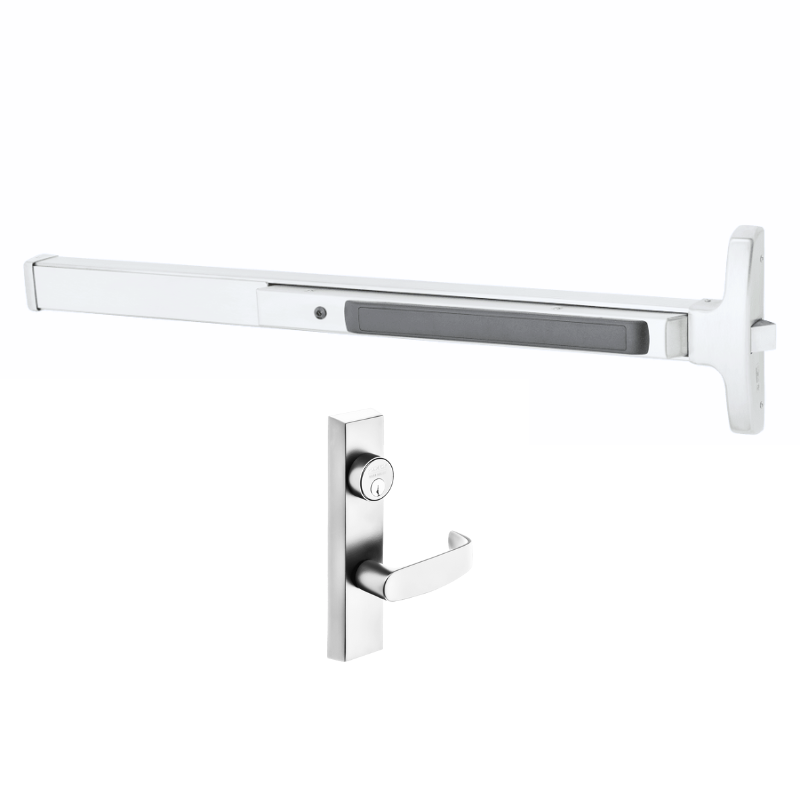

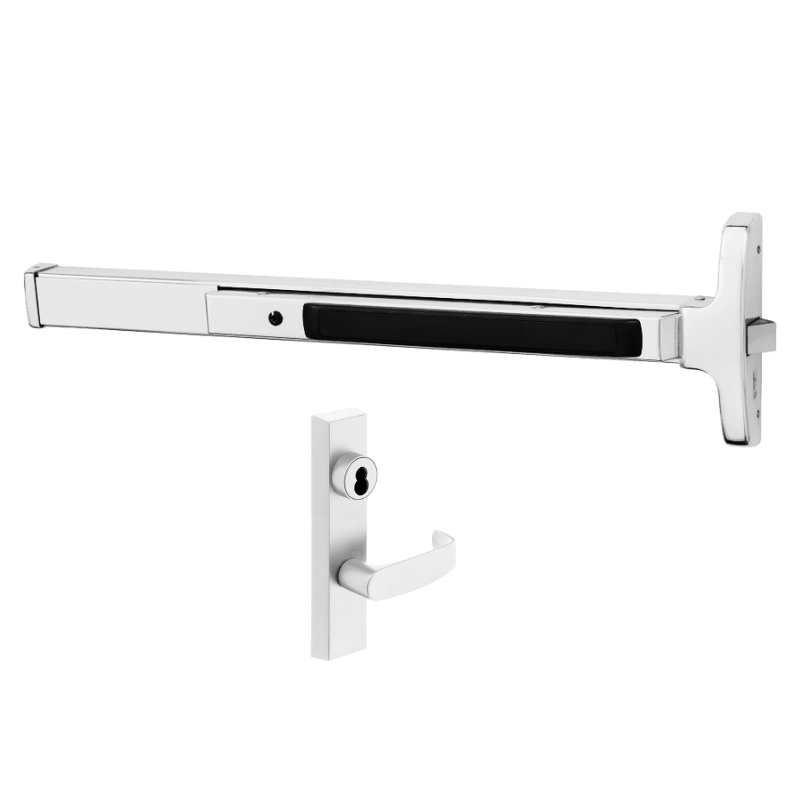

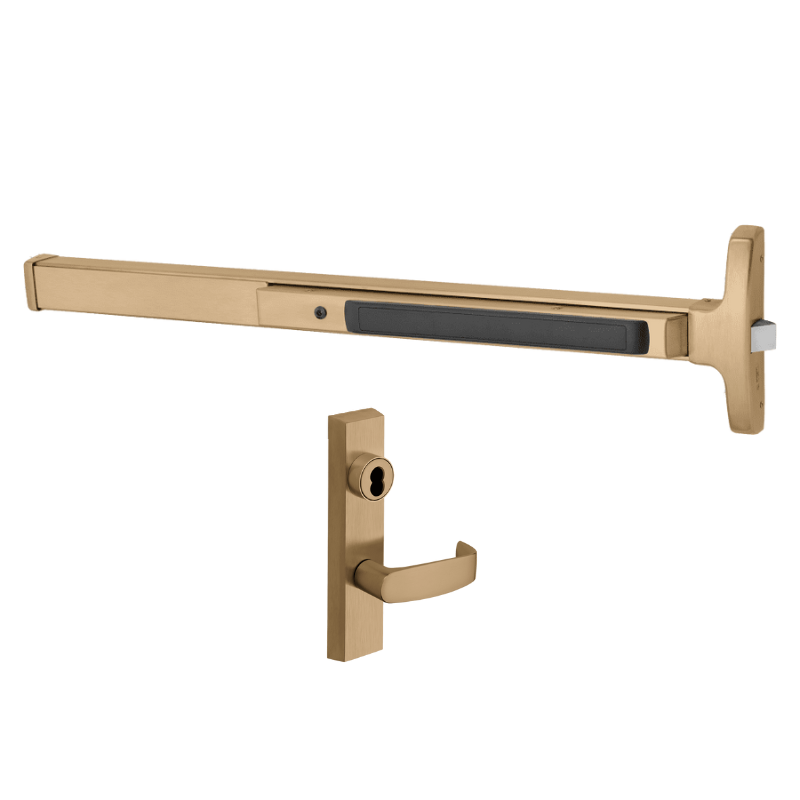

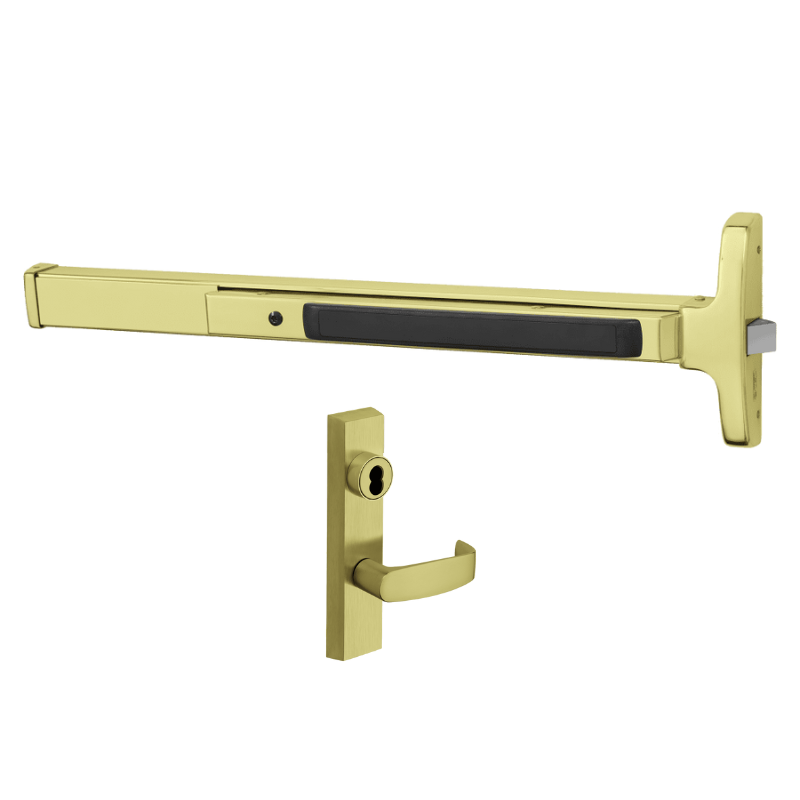

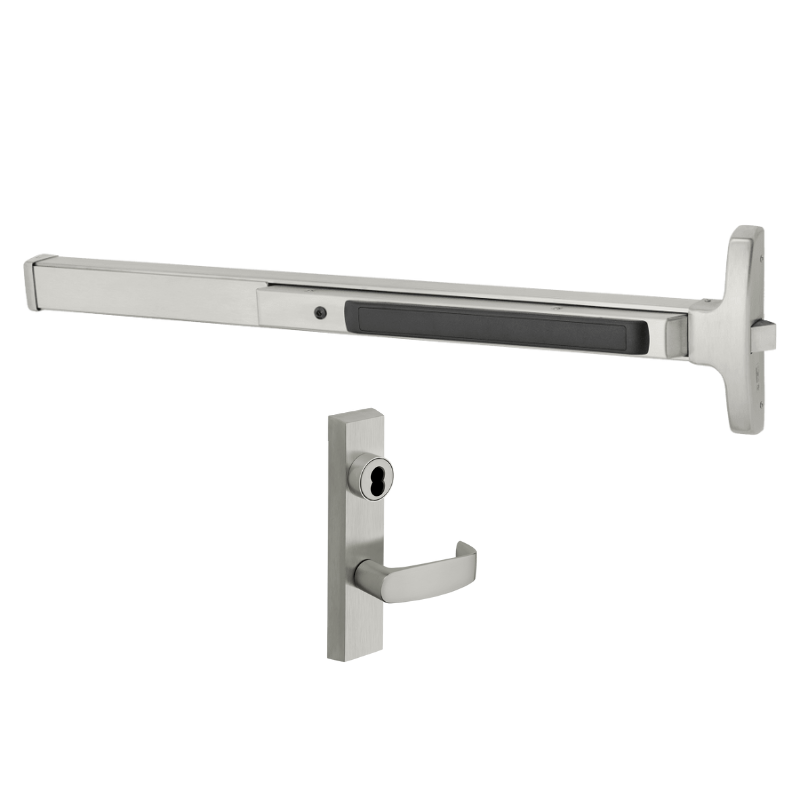

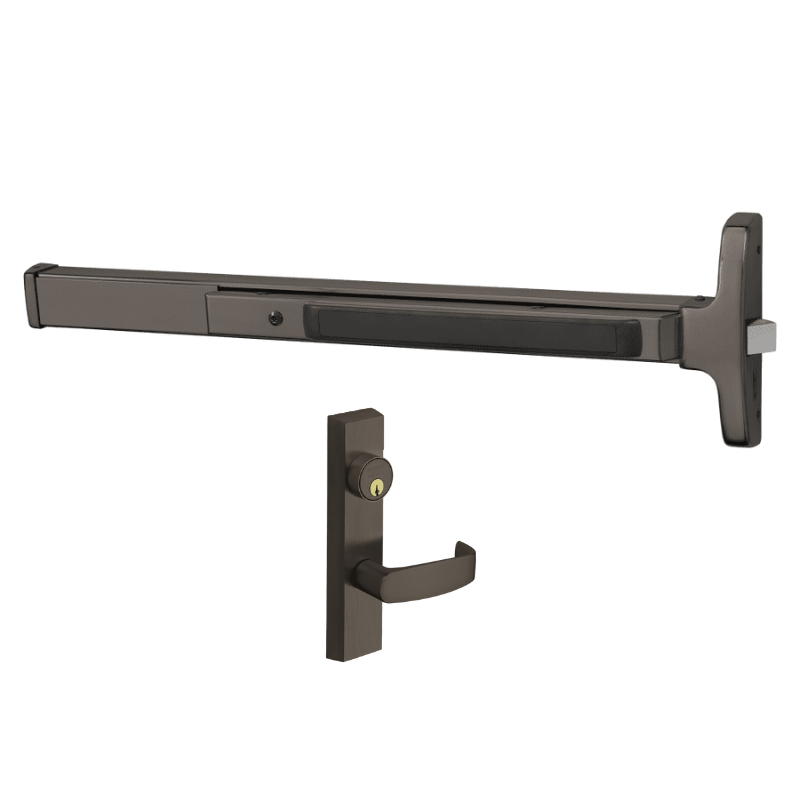

Sargent 8513-F-ETL Narrow Stile Rim Exit Device, L Lever, Key Locks or Unlocks Lever, For 33-36 In Door, Hex Key Dogging, Grade 1

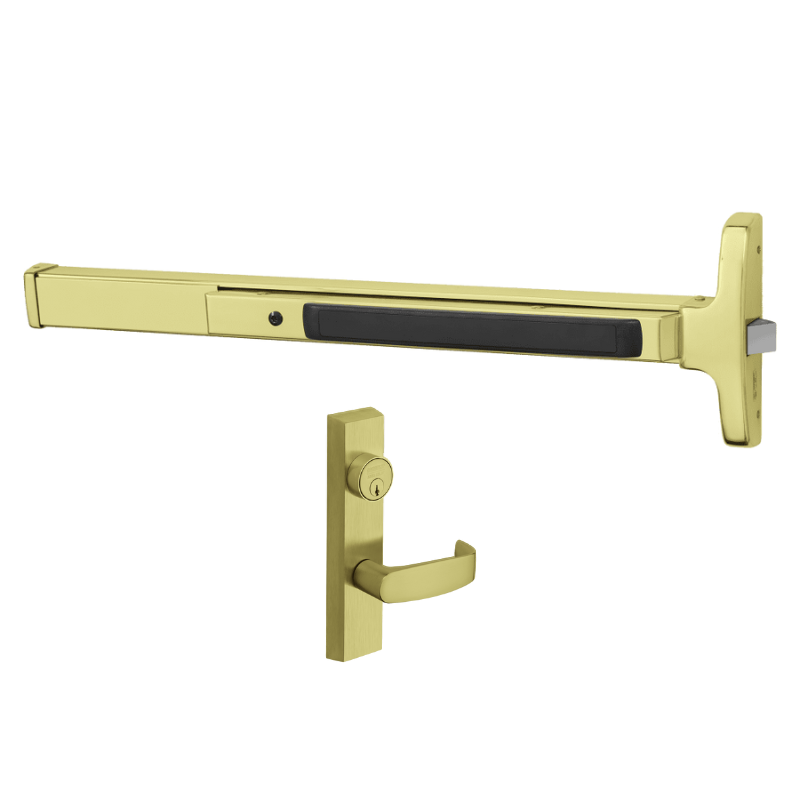

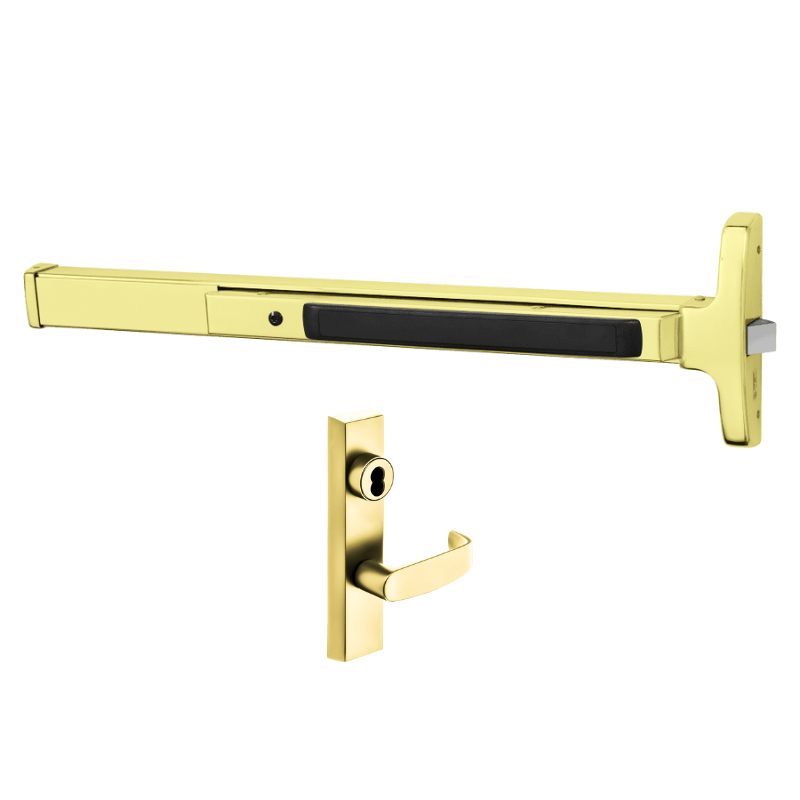

The Sargent 8513-F-ETL Narrow Stile Rim Exit Device features an L-shaped lever with a key-operated locking mechanism that secures or releases the lever. Designed for doors measuring 33 to 36 inches, it includes hex key dogging and meets Grade 1 standards for durability and performance.

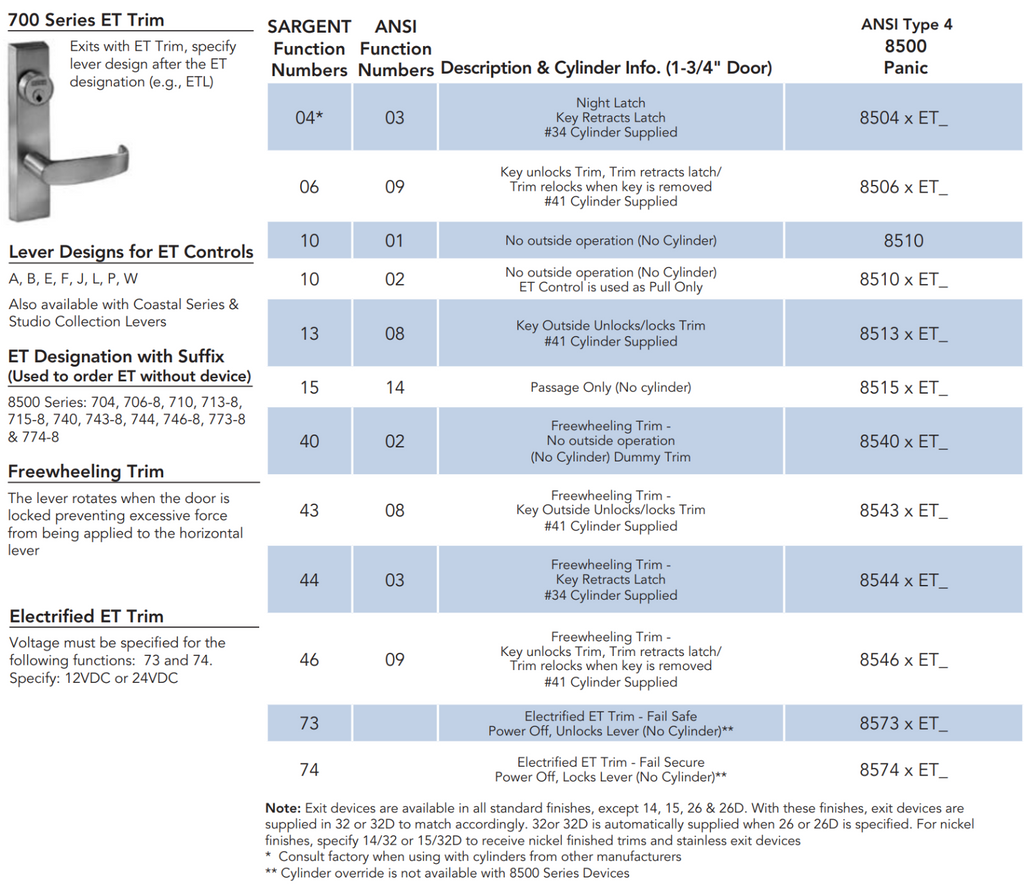

8500 Series Narrow Rim Exit Devices

The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

The 8500 Series has a quiet operation with solid security. The single point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Narrow Stile Pushpad
Device Type	Rim
Mechanical Function	Lever Classroom
Device Length	36"
Includes Trim	Yes, ETL
Minimum Stile Size	2"
Door Material	Aluminum
Door Width	33" - 36"
Door Thickness	1-3/4" to 2-1/4"
Fire Rated	No
Product Type	Rim Exit Devices
