Product Cut Sheet
Product Overviews
Active

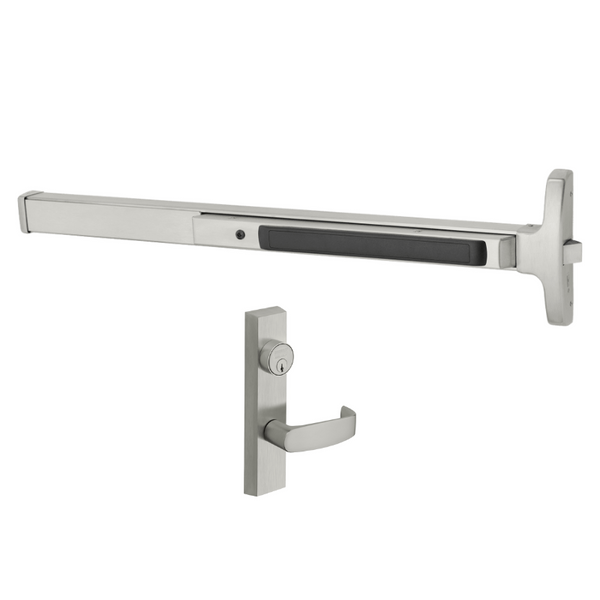

Sargent 8515-G-ETL is a 43"-48"Narrow Stile Rim Exit Device with Lever Passage Trim Non-Keyed, The 8515 With ETL Lever Trim Is Ideal For Use In Institutions and Commercial Spaces, Healthcare Facilities. The 8515 Is a Narrow Stile Rim Exit Device Handed LHR Or RHR In US32D Satin Stainless Steel Or US10B Oxidized Dull Bronze Finishes.
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Lever Classroom |
| Device Length | 48" |
| Includes Trim | Yes, ETL |
| Minimum Stile Size | 2" |
| Door Material | Aluminum |
| Door Width | 43" to 48" |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | No |
| Product Type | Rim Exit Devices |
