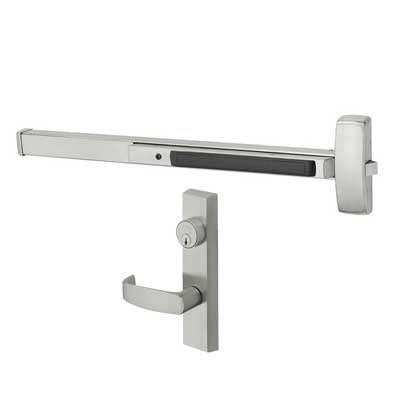

Sargent 8804-G-ETL Rim Exit Device Lever Trim, Night Latch Function, 48" Dr Widths, ETL Trim
Sale priceFrom $1,471.08
SARGENT
Sargent 8815-G-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, For 43"-48" Dr Width
Sale priceFrom $1,470.62
- Description
- Product Specs
- Technical Specs
- Product Reviews
- Document Center
- Handing Chart
Description
The Sargent 8810-G is a 43"-48" Exit Device is exit only with no outside trim. The 8810 exit device, also known as a panic bar, is applied to the surface of the door, making installation simple. Trim is sold separately.
This Sargent panic device is perfect for wood or metal doors 1-3/4" thick with a 4-1/2" minimum stile. Its excellent design ensures quiet operation and solid security.
And it is ideal for use in all institutions, office spaces, and healthcare facilities. The single-point rim latching device is made for both single-door and double-door applications.
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 48" |
| Hand | RHR OR LHR |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Trim Type | Less trim |
| Includes Cylinder(s) | No |
| Cylinder Type | None |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 43"-48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
