Sargent 8813 ETL Rim Exit Device Panic Bar
ETL Trim
Sargent 8813-G-ETL Rim Exit Device Panic Bar, Key Locks/Unlocks Outside Lever, 43"-48" Dr Widths, ETL Trim
Sargent 8813-G-ETL Rim Exit Device Panic Bar, Key Locks/Unlocks Outside Lever, 43"-48" Dr Widths, ETL Trim
Sargent 8813 ETL Rim Exit Device Panic Bar
ETL Trim
Sargent 8813-G-ETL Rim Exit Device Panic Bar, Key Locks/Unlocks Outside Lever, 43"-48" Dr Widths, ETL Trim
Sargent 8813-G-ETL Rim Exit Device Panic Bar, Key Locks/Unlocks Outside Lever, 43"-48" Dr Widths, ETL Trim

Sargent 8813-G-ETL Rim Exit Device Panic Bar, Key Locks/Unlocks Outside Lever, 43"-48" Dr Widths, ETL Trim

SARGENTSKU: 8813GETLUS32DRHR
Finish: US32D Satin Stainless Steel (630)
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Sargent Handing: RHR Right Hand Reverse
Handing Guide:
handing chart image
Price:
$1,504.36/ea
In Stock
In Stock

Related Hardware

Sargent 8804 ETL Rim Exit Device
SARGENT Sargent 8804-G-ETL Rim Exit Device Lever Trim, Night Latch Function, 48" Dr Widths, ETL Trim
From $1,533.42
Choose options
Sargent 8866-G-PTB Rim Exit Device Classroom Security Function Key Lock/Unlock, 43"-48" Door, PTB Thumbpiece Trim
SARGENT Sargent 8866-G-PTB Rim Exit Device Classroom Security Function Key Lock/Unlock, 43"-48" Door, PTB Thumbpiece Trim
From $1,525.31
Choose options

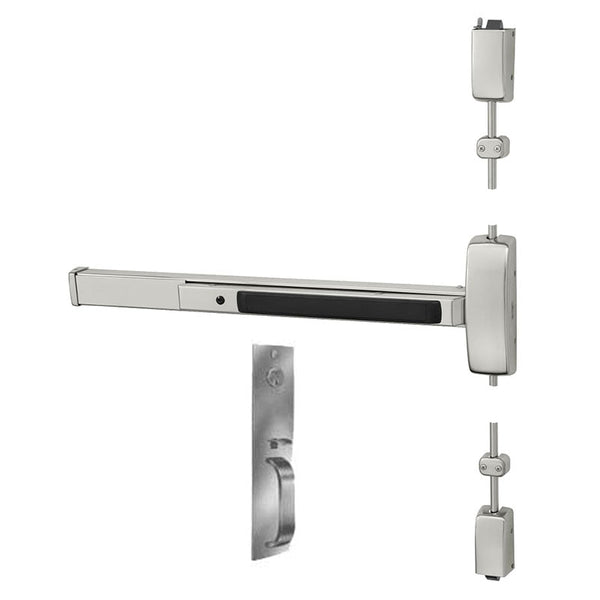

Sargent 8713-G-ETL-84-US32D Surface Vertical Rod Exit Device
SARGENT Sargent 8713-G-ETL-84 Surface Vertical Rod Exit Device, Key Locks/Unlocks, 84" Ht, 43"-48" Dr Widths, ETL Trim
From $1,970.71
Choose options
Sargent 8763 PTB US32D
SARGENT Sargent 8763-G-PTB-84 Surface Vertical Rod Exit Device, Key Locks/Unlocks Thumb Piece, 84" Ht, 43"-48" Dr Widths, PTB Trim
From $1,827.19
Choose options
Sargent_8815-F-ETL-US32D
SARGENT Sargent 8815-F-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, For 33"-36" Dr Width
From $1,533.42
Choose options

The Sargent 8813-G-ETL Rim Exit Device Panic Bar is a 43"- 48" exit device panic bar ideal for use in all institutions, office spaces, and healthcare facilities. It is grade 1 commercial door hardware.

A key lock/unlocks the outside lever control. And the Sargent 8813 has an "ETL" trim.

Features: Sargent 8813 Rim Exit Device Panic Bar

  • Single-point rim latching device
  • Single door & double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed
Vendor Assa Abloy
Manufacturer Sargent
SKU 8813
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No

Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Classroom
Device Length 48"
Hand Left Hand Reverse or Right Hand Reverse
Dogging Options Hex Key Dogging
Includes Trim Yes
Trim Type ETL
Includes Cylinder(s) Optional
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 43" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated No
Reversible No
Product Type Rim Exit Devices


Product Cut Sheet

Panic Handing Chart
