Product Cut Sheet
Description
Active

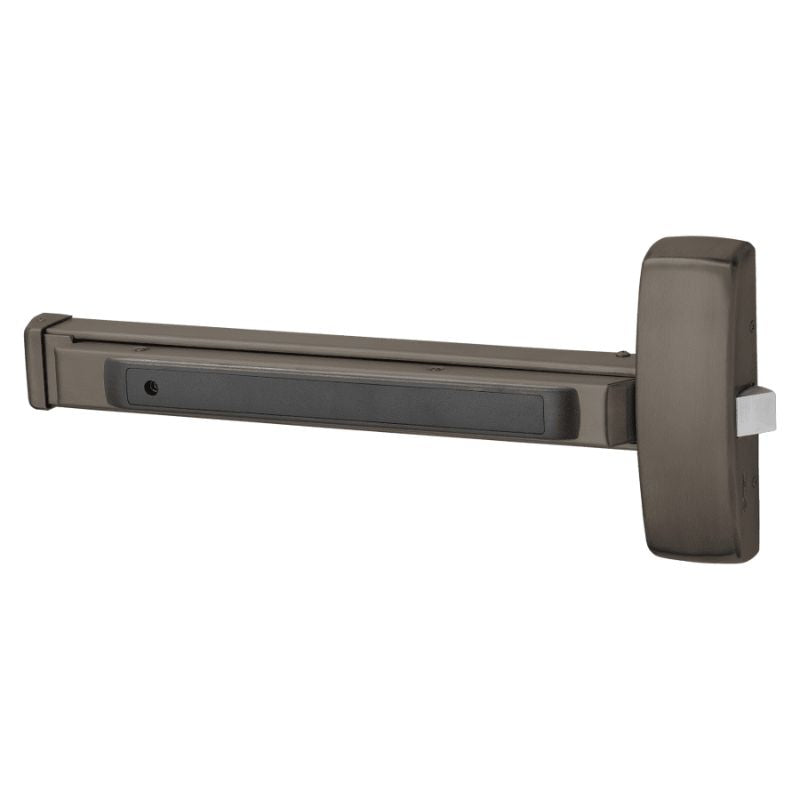

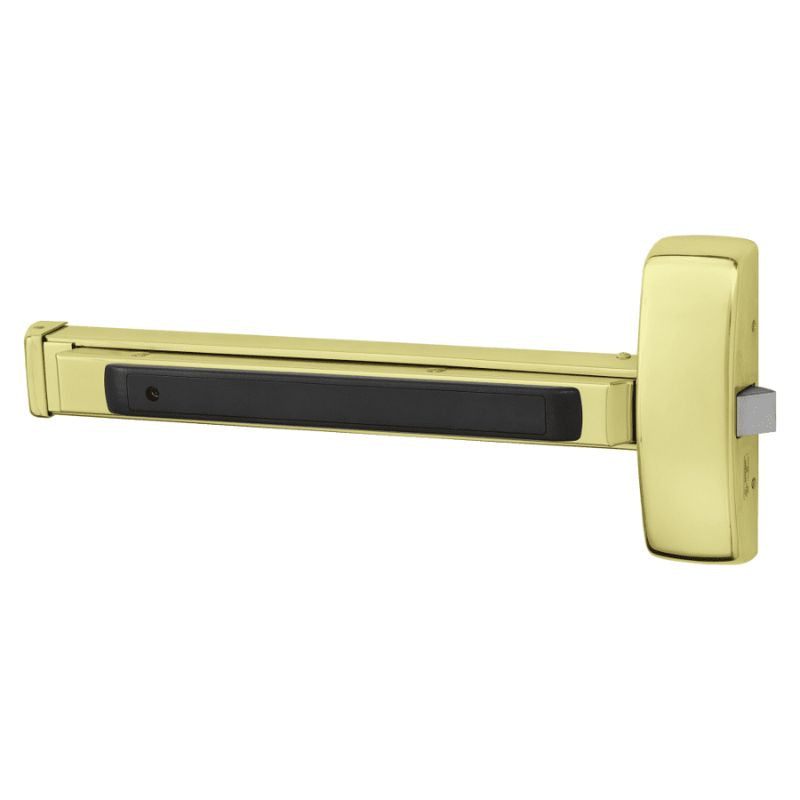

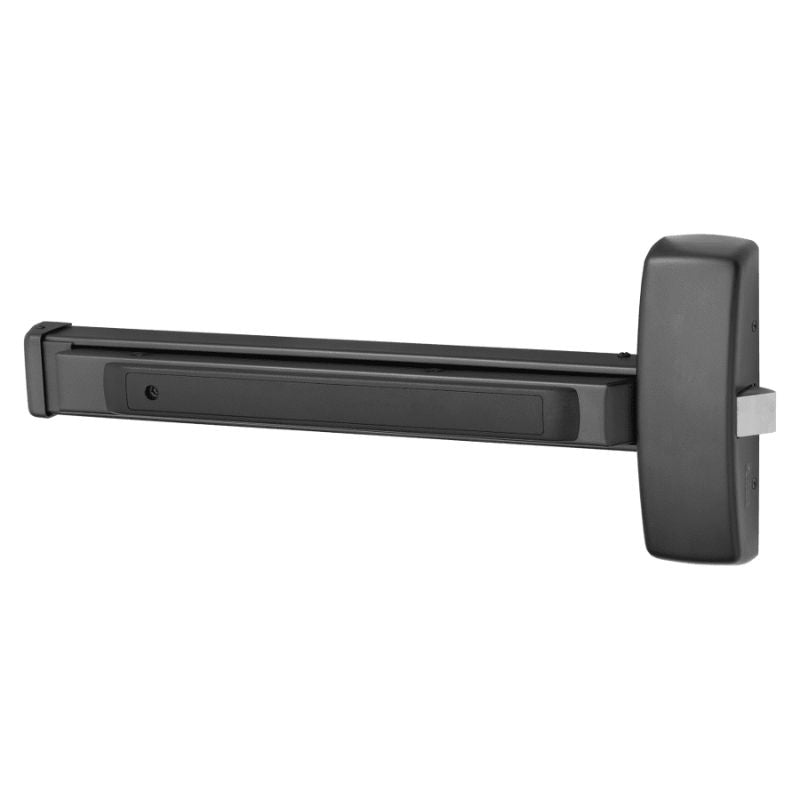

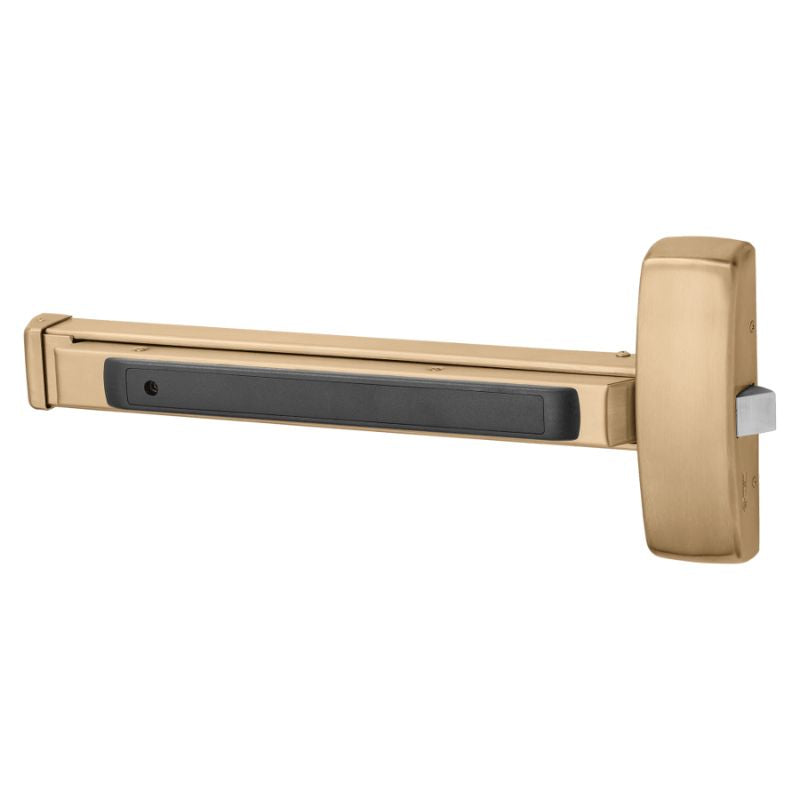

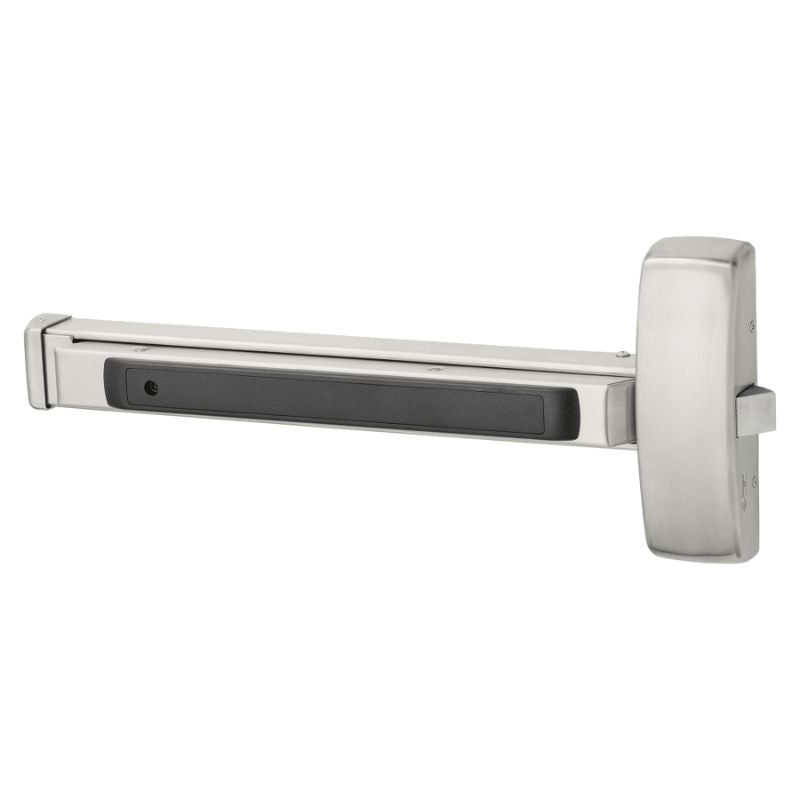

Sargent 8815E Rim Exit Device, Exit Only, Passage Function Only, Less Trim, 24"-32" Door Width, Hex Key Dogging, Grade 1, Reversible
The Sargent 8815E Rim Exit Device features a Passage Function, compatible with 24"-32" door widths and reversible for Grade 1 security. This Exit Only device includes Hex Key Dogging and does not come with trim.
The 8800 Series is tailored for standard width stile applications on both wood and metal doors. This reversible rim exit device is renowned for setting industry benchmarks in durability and reliability. It forms an integral part of Sargent’s comprehensive range of exit devices, offering robust performance and trusted security solutions.
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
| Manufacturer | Sargent |
| SKU | 8815E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Passage |
| Device Length | 32" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 24" to 32" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
