Product Cut Sheet
Description
Active

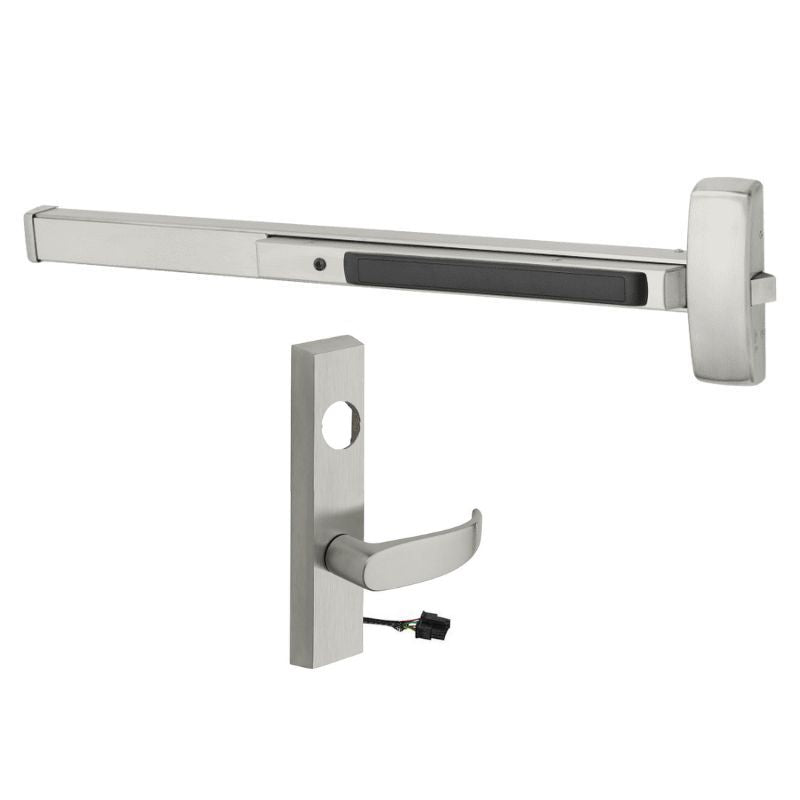

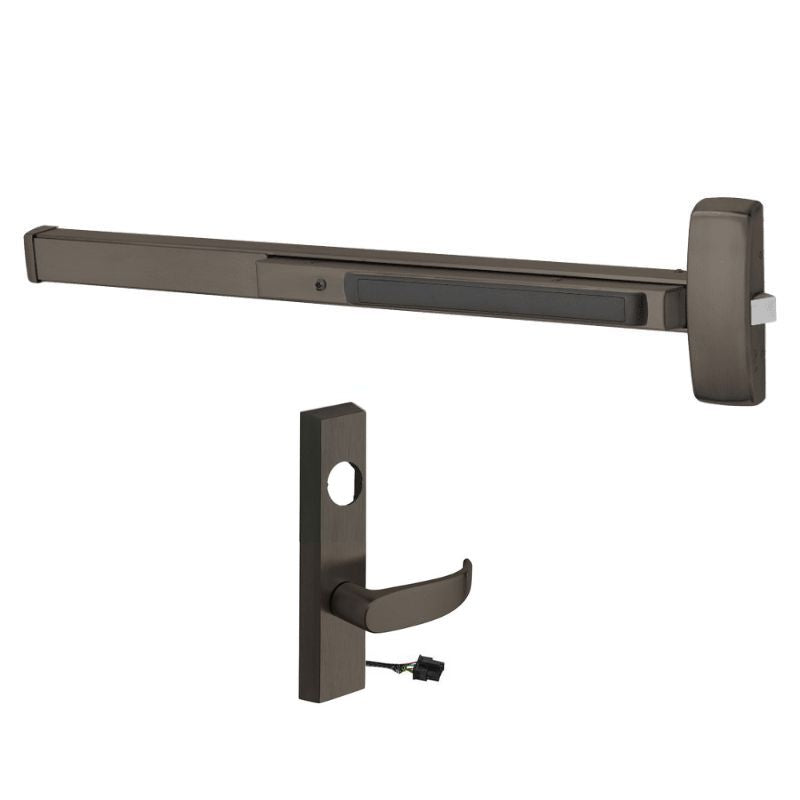

Sargent 8875-F-ETP-12V Rim Exit Device, 12V Fail Safe, P Lever, Power off Unlocks Lever Key retracts Latch, 33"-36" Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 8875-F-ETP-12V Rim Exit Device offers a fail-safe mechanism with a 12V power supply that allows for unlocking through the lever, while the key conveniently retracts the latch. This device is designed for use on doors measuring 33"-36" and features an electrified ET trim.
75 Electrified ET Trim - Fail Safe
The Sargent 775-8-ETP-12V Electrified Lever, comes less cylinder with an ETP Trim, Fail Safe Power Off Unlocks Lever Key Retracts Latch function-Cylinder Sold Separately
| Manufacturer | Sargent |
| SKU | 8875E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | none |
| Burglar Rated | No |
| ADA Compliance | Yes |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 36" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Keyed Electric Lever |
| Trim Part No. | 775-8 ETP 12V |
| Includes Cylinder(s) | No |
| Cylinder Type | Rim |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Rim Exit Devices |
