Product Cut Sheet

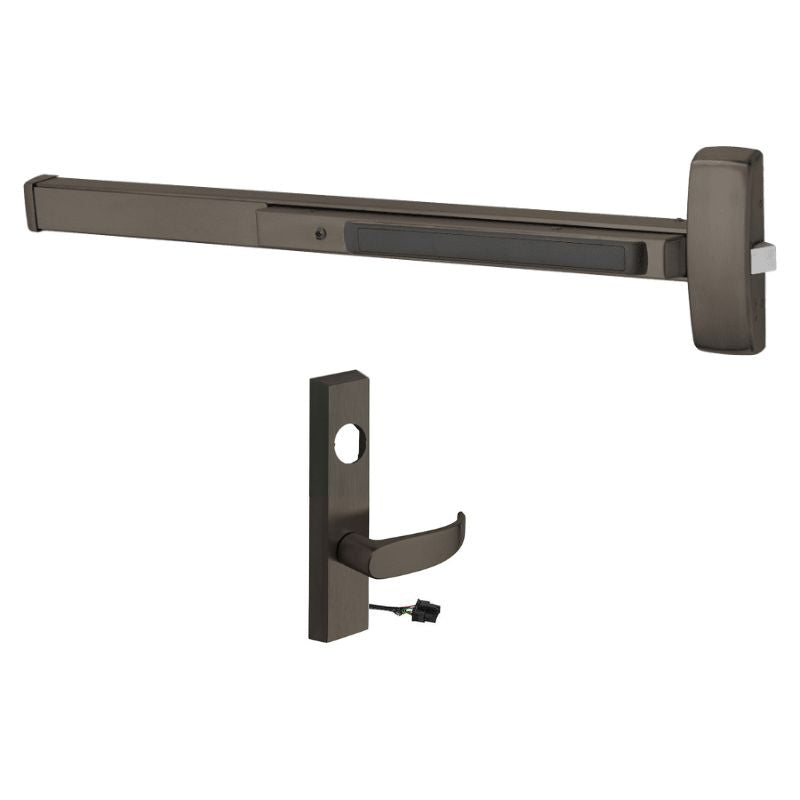

Sargent 8876-J-ETP-24V Rim Exit Device, 24V Fail Secure, P-Lever, Power off Unlocks Lever Key retracts Latch, 37-42 Inch Door, Less Cylinder, No Dogging, Grade 1
Description
Active
Sargent 8876-J-ETP-24V Rim Exit Device, 24V Fail Secure, P-Lever, Power off Unlocks Lever Key retracts Latch, 37-42 Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 8876-J-ETP-24V Rim Exit Device is designed for 37-42 inch doors and is compatible with the 76 Electrified ET Trim. It features a 24V Fail Secure mechanism and a P-Lever that allows the lever to be unlocked in case of power failure. The lever can also retract the latch using a key. This Grade 1 device does not require a cylinder and does not have a dogging option.
76 Electrified ET Trim - Fail Secure
776-8-ETP-24V-LC Electrified Lever Trim, ETP Trim, 24V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 42" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Keyed Electric Lever |
| Trim Part No. | 776-8 ETP |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 37" to 42" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Product Type | Rim Exit Devices |
