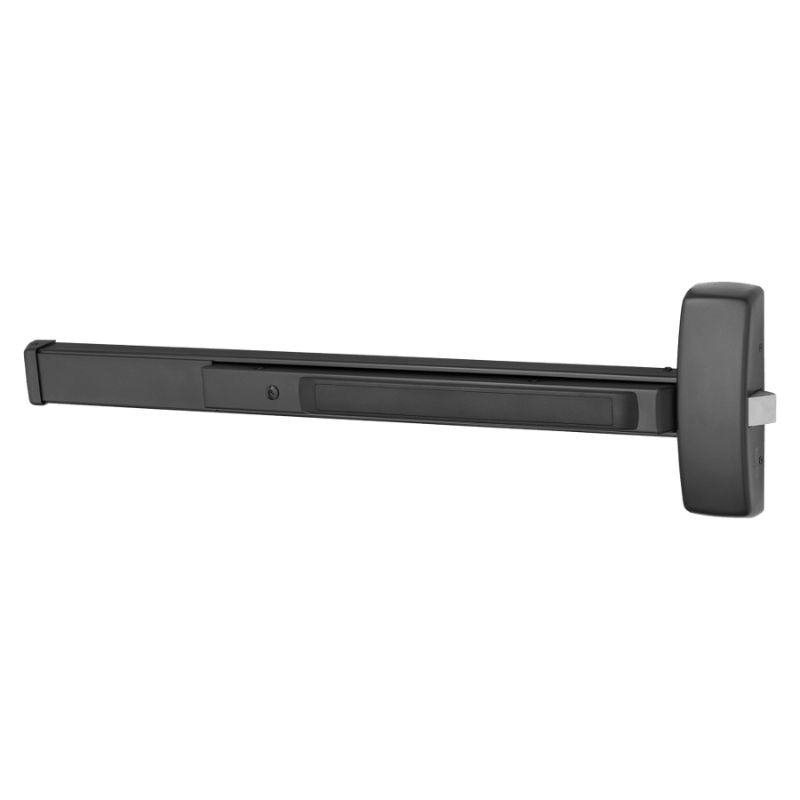

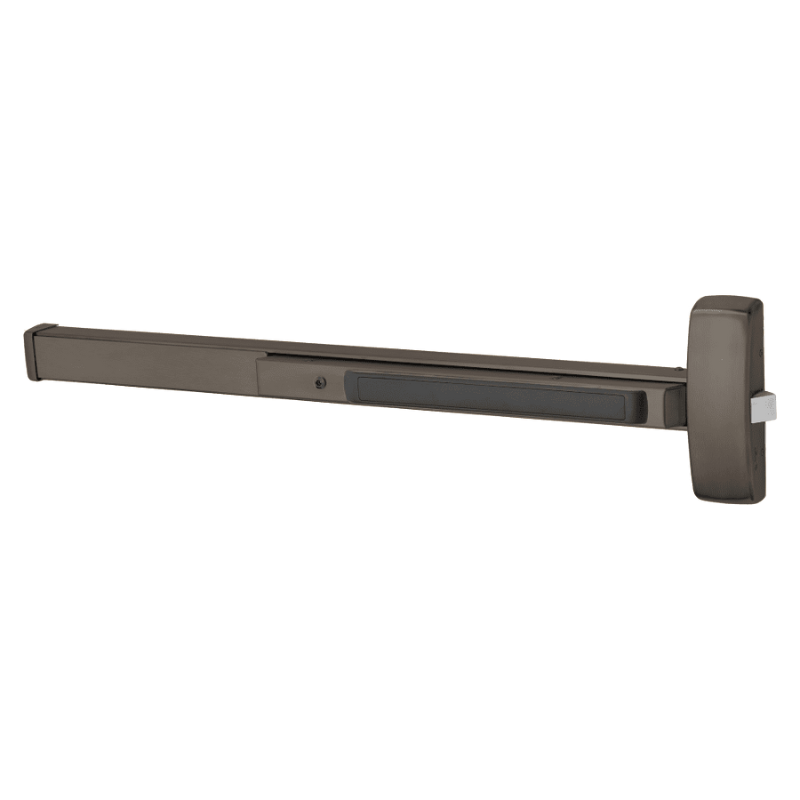

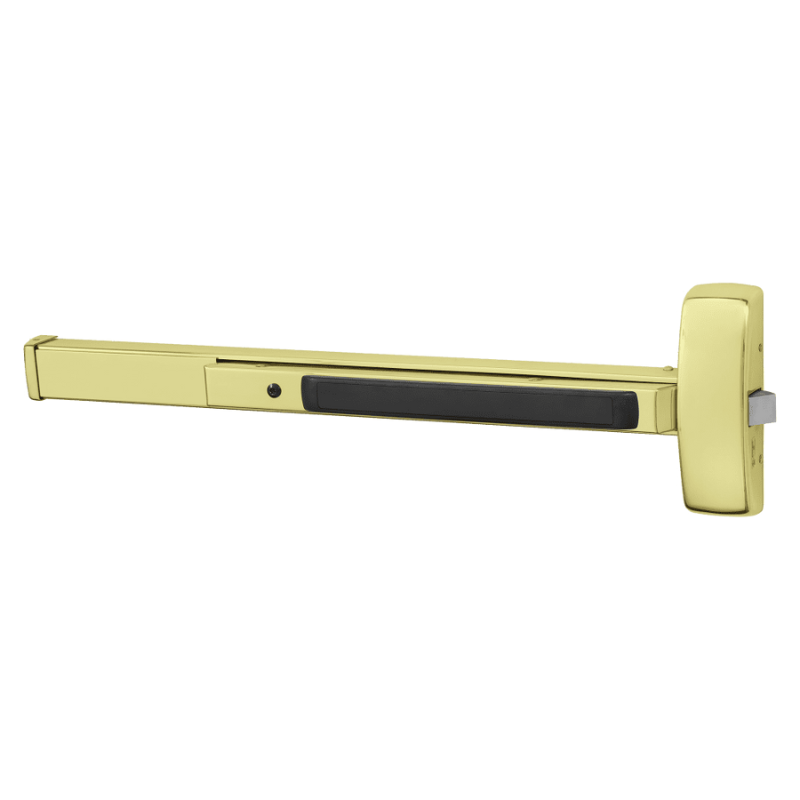

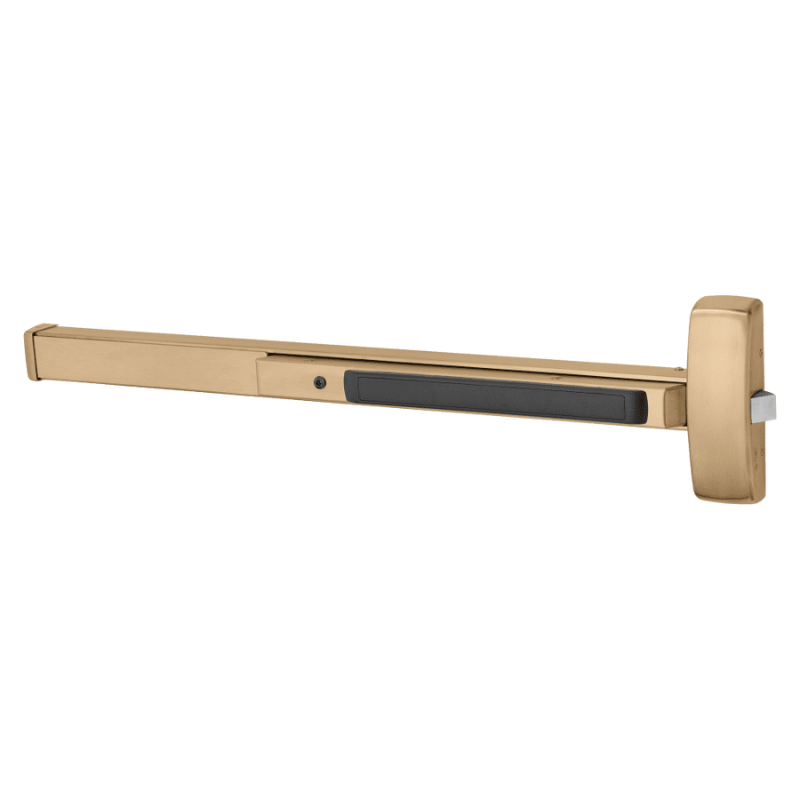

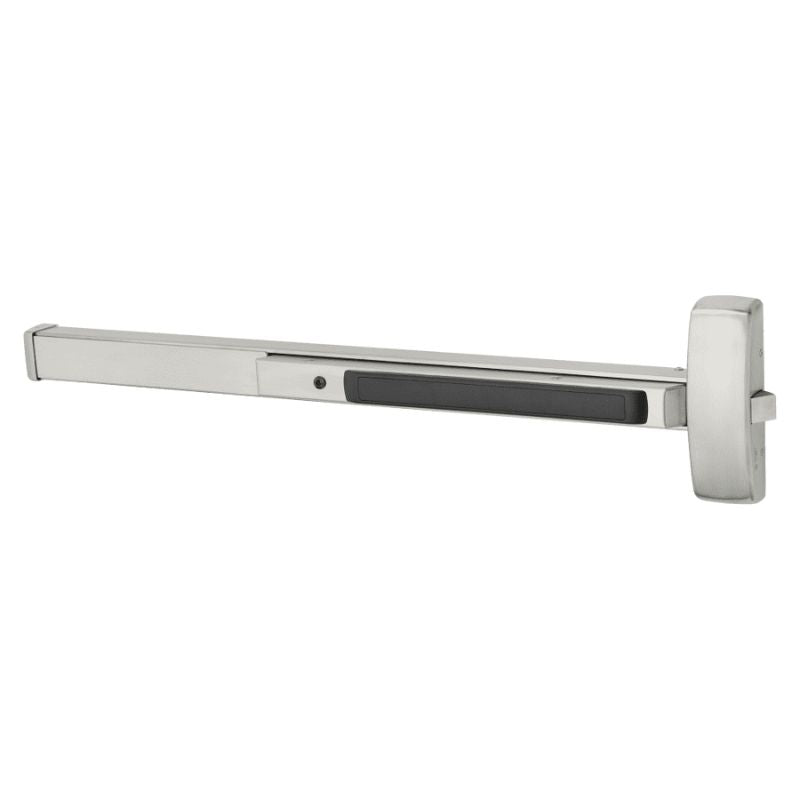

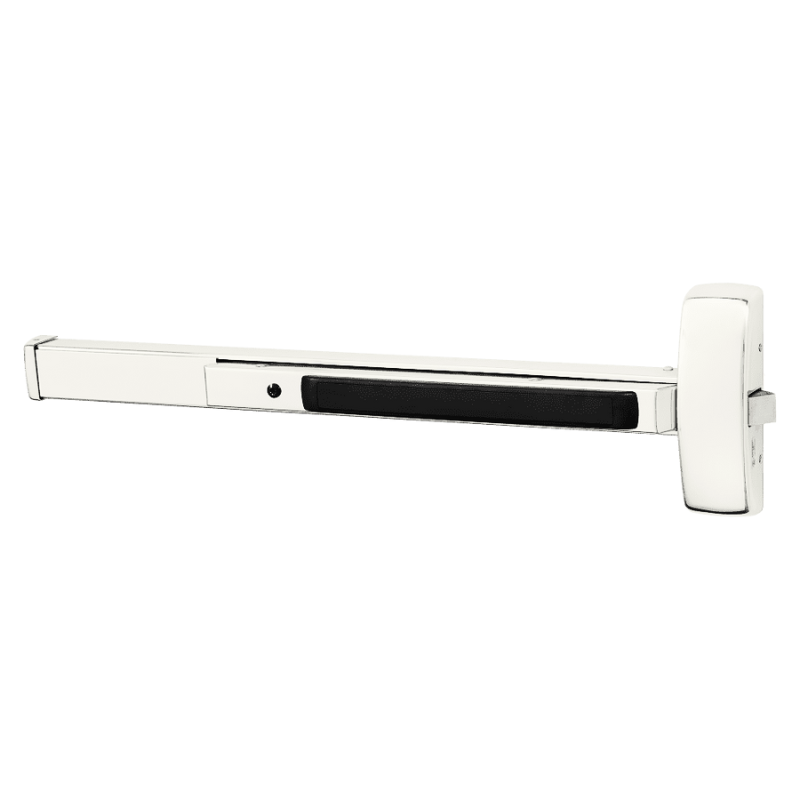

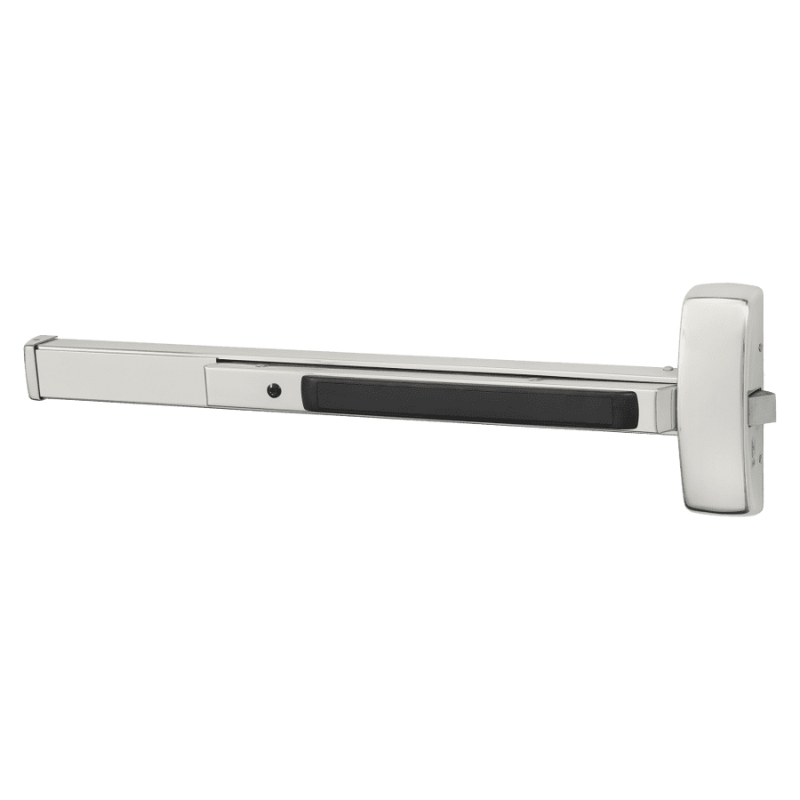

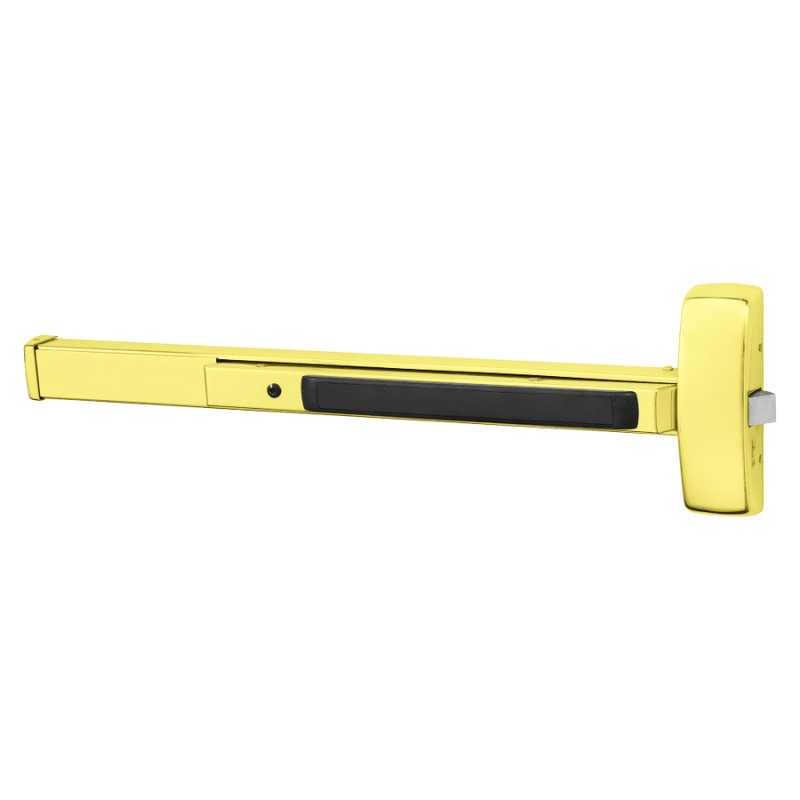

Sargent 8888-G Rim Exit Device, Multi-Function, Exit Only, For 43"-48" Door, Hex Key Dogging

Sargent 8888-G Rim Exit Device, Multi-Function, 43"-48" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1, Trim Sold Seperatly

The Sargent 8888-G is a 43"-48" Reversible Rim Exit Device is a multi-function grade 1 surface mounted panic bar with hex key dogging and a wide style push pad. The 8888 is non-handed, with seven functions determined by the trim.

Multi-Function Device: Trims below decide the function of the device;

704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)
