Sargent AD8410G-106-US32D
Sargent AD8410G-106-US32D

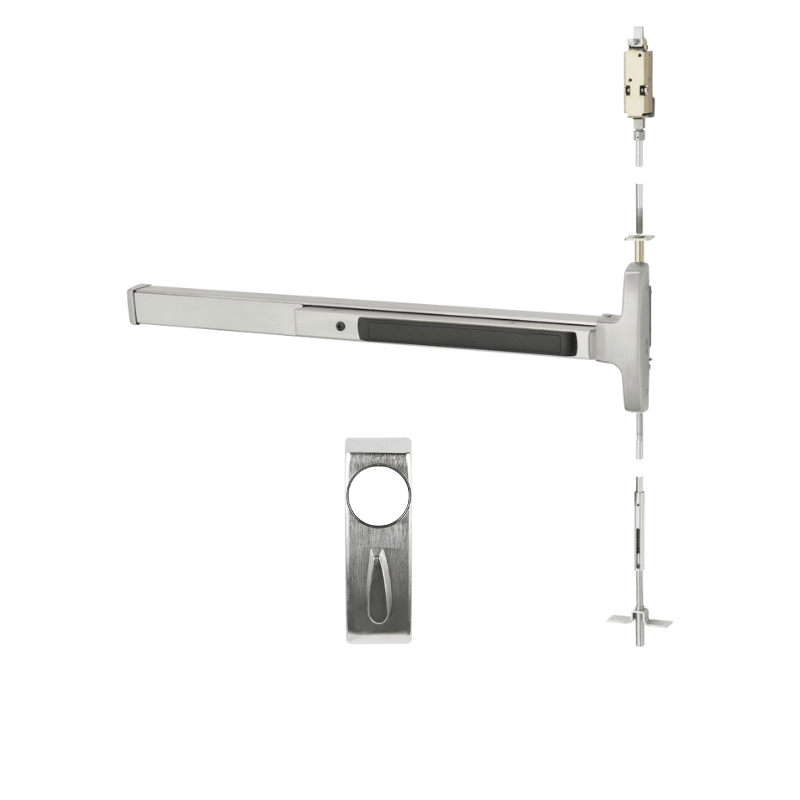

Sargent AD8410G-106-US32D Narrow Stile Concealed Vertical Rod Exit Device, 43-48" Width, 106 Aux control, Less Cylinder, 84" Ht, Satin Stainless Steel Finish

SARGENTSKU: AD8410G106US32DRHR
Handing: RHR - Right Hand Reverse
Price:
$2,326.85/ea
Available (2 Weeks)
2 Weeks Lead Time

Related Hardware

Sargent AD8410G-106-US32D Narrow Stile Concealed Vertical Rod Exit Device, 43-48" Width, 106 Aux control, Less Cylinder, No Pull, Hex Key Dogging, 84 in Ht, Grade 1, 630 Satin Stainless Steel Finish

The Sargent AD8410G-106-US32D is a Grade 1 narrow stile concealed vertical rod exit device designed for doors 43-48" wide and 84" high. It features 106 auxiliary control, comes without a cylinder or pull, and includes hex key dogging. Finished in 630 satin stainless steel, this robust exit device offers reliable security and durability for demanding commercial applications.

Features

  • Designed for narrow stile aluminum door applications (e.g., full glass doors)
  • Concealed rods for security and aesthetics
  • UL10C (Fire) and UL305 (Panic) listed
  • 106 Aux Control
  • Devices are ANSI/BHMA A156.3 - Grade 1
Sargent Function Numbers ANSI Function Numbers  Description & Cylinder Info AD8400 Panic
06 12

Key unlocks Turn, Turn retracts latch/Turn relocks when key is removed

Less Cylinder

 AD8410 x 106
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Mutli-Function
Device Length 48"
Hand LHR or RHR
Dogging Options Hex Key Dogging
Top Strike 640
Strike Bottom 640
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 1 3/4"
Door Material Aluminum
Door Width 34" to 48"
Door Height 84"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible No
Product Type Concealed Vertical Rod Exit Devices
