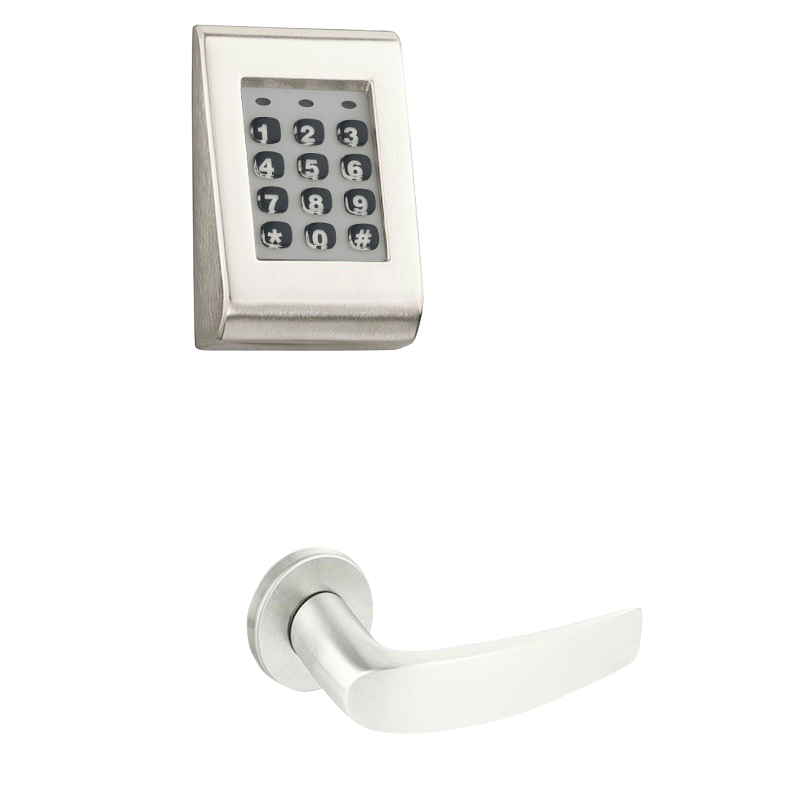

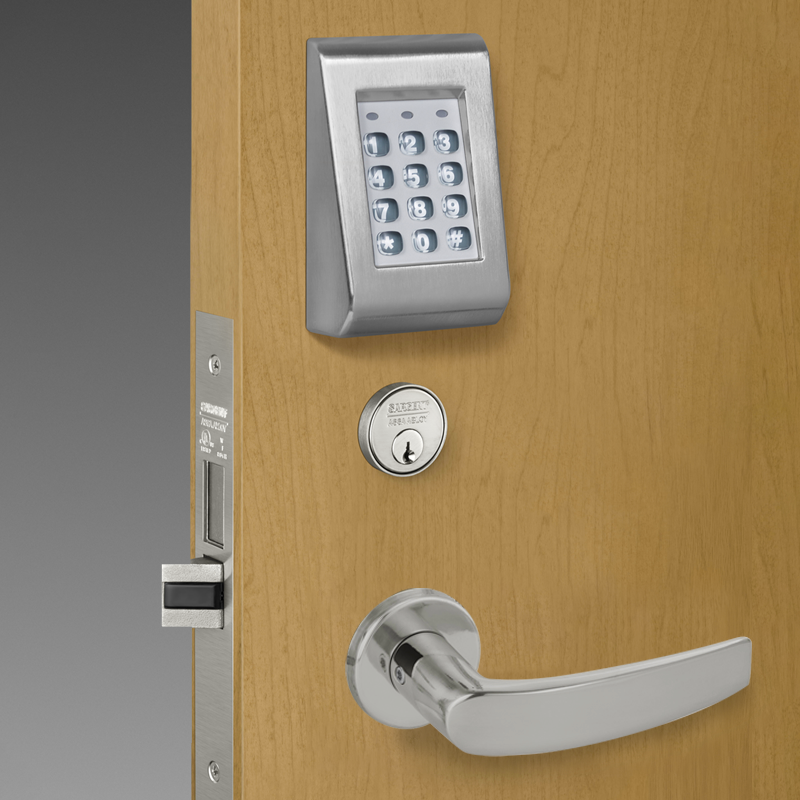

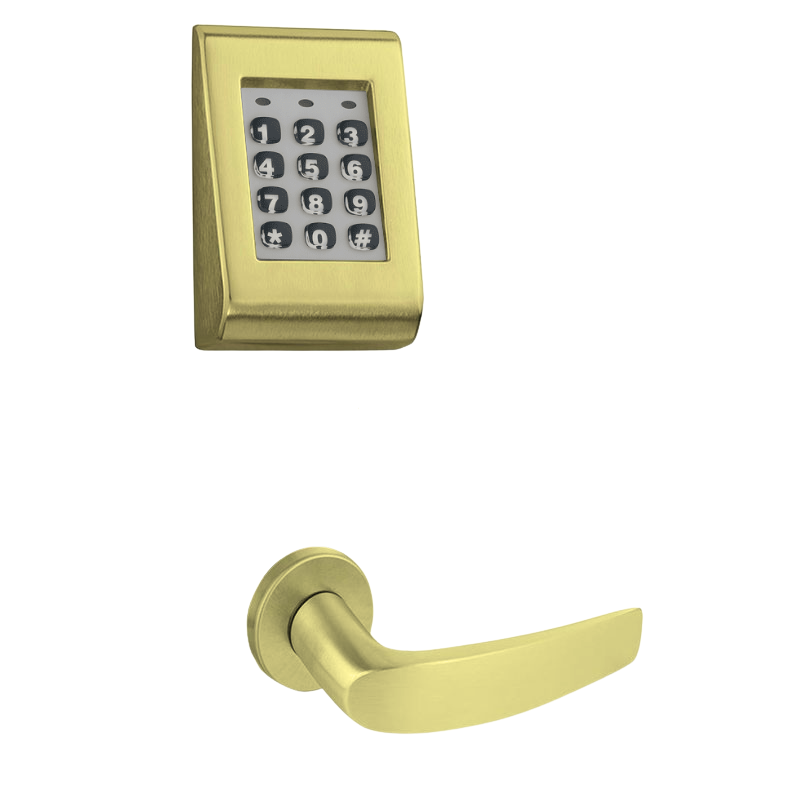

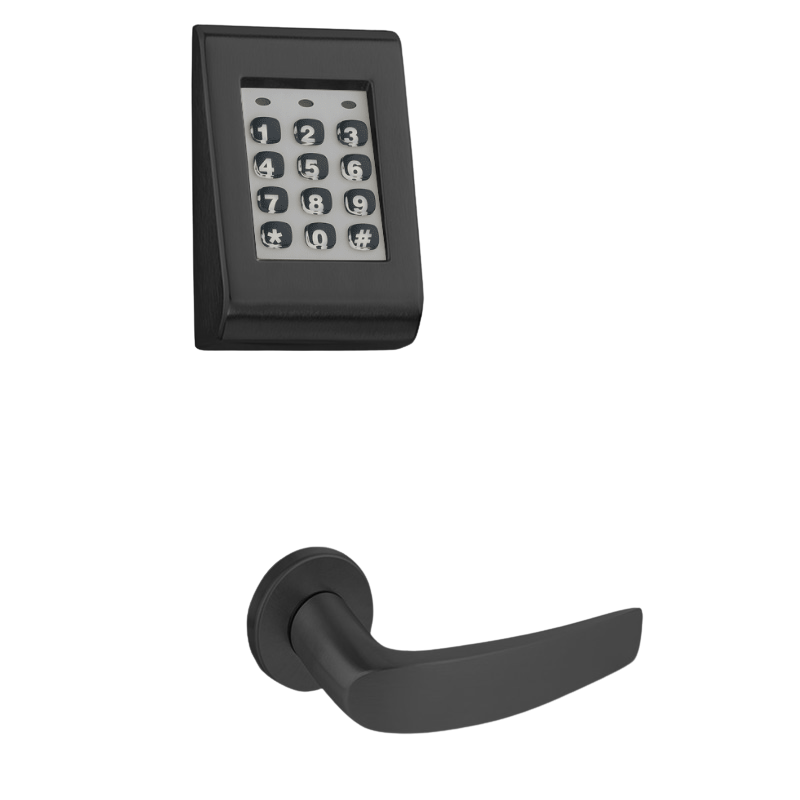

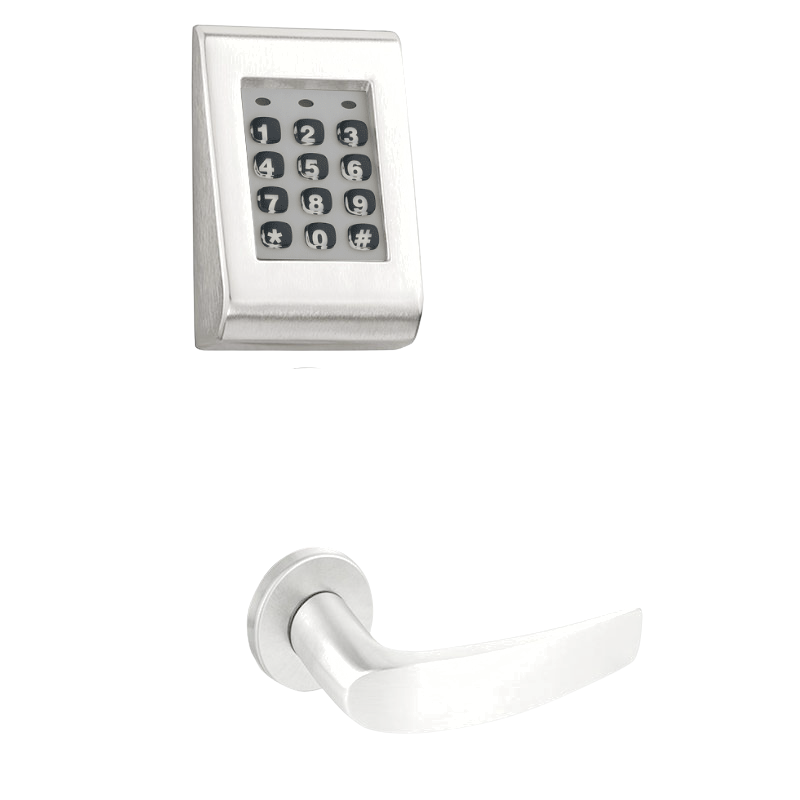

Sargent KP-8276-LNB Keypad Mortise Lock, Entry Key Override with Deadbolt, Cylinder Override, Less Cylinder, Field Reversible

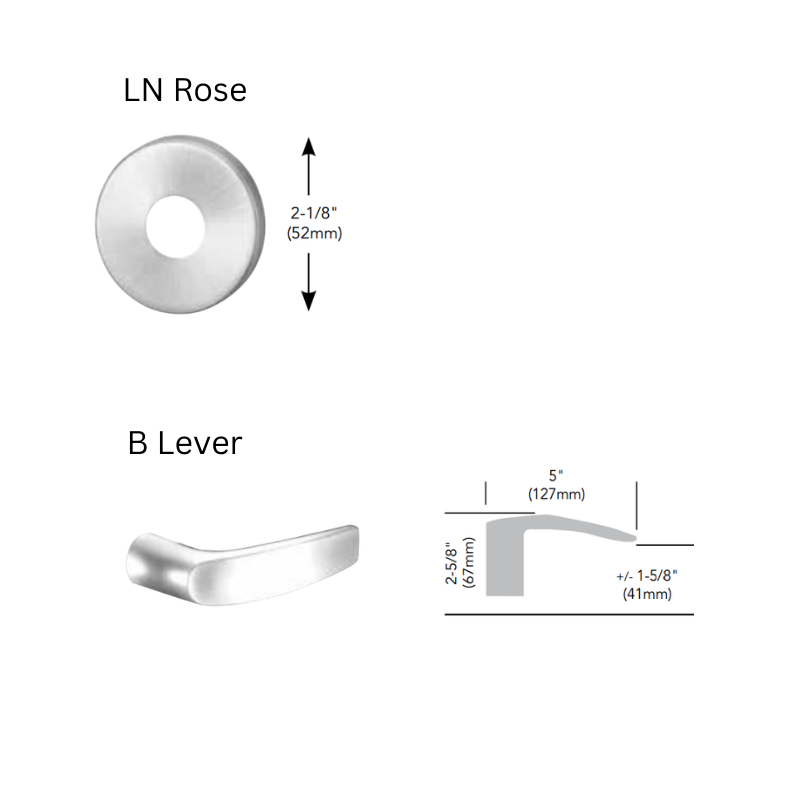

Sargent KP-8276-LNB-LC Keypad Mortise Lock, Entry Key Override with Deadbolt, with Cylinder Override, Sold Less Cylinder, LN-Rose, B-Lever, Field Reversible

The Sargent KP-8276-LNB-LC Keypad Mortise Lock features an entry key override with a deadbolt and a cylinder override, sold without the cylinder. It includes an LN-Rose, B-Lever, and offers field reversibility for flexible installation.

8276 Profile Series Mortise Locks

The 8276 Series operates with 6 "AA" batteries and comes in several lever styles and finishes.

• Key outside retracts and projects deadbolt and retracts latchbolt
• Lever inside retracts latchbolt and deadbolt simultaneously when deadbolt is projected
• Lever outside rigid except when in “passage” mode or with valid user credential
• Lever outside locks electrically with deadbolt projected. Master Code & Emergency Code will allow lever outside to retract latchbolt & deadbolt
• Thumb turn retracts and projects deadbolt
• Auxiliary deadlatch
