Product Cut Sheet
Description
Active

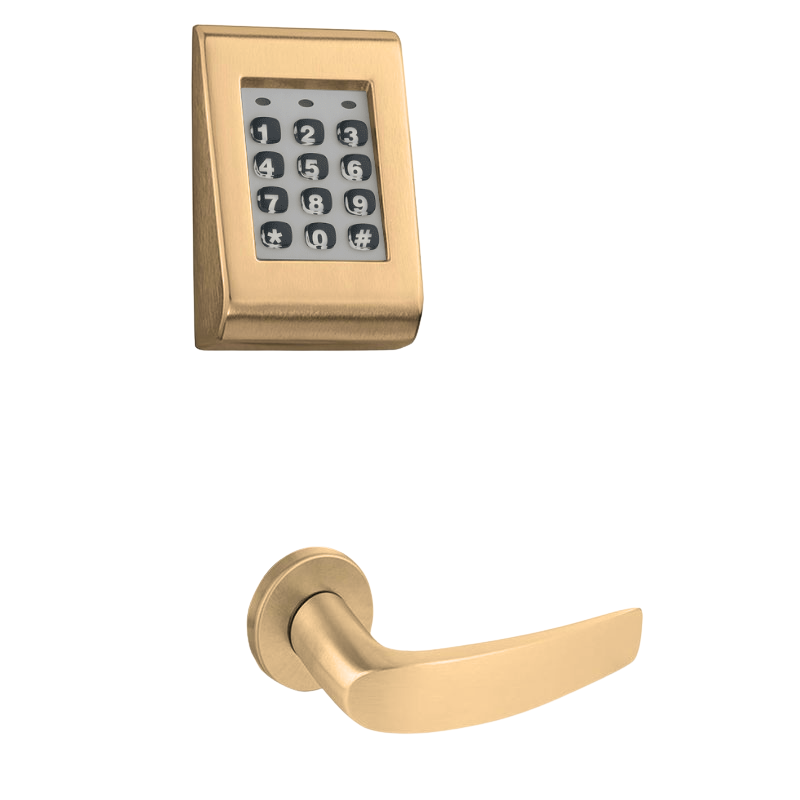

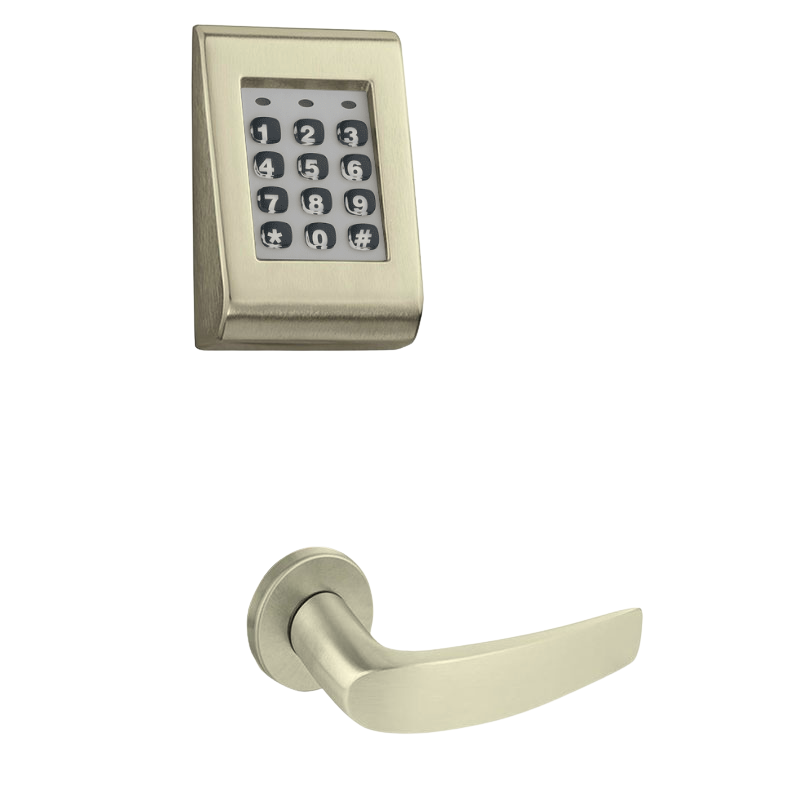

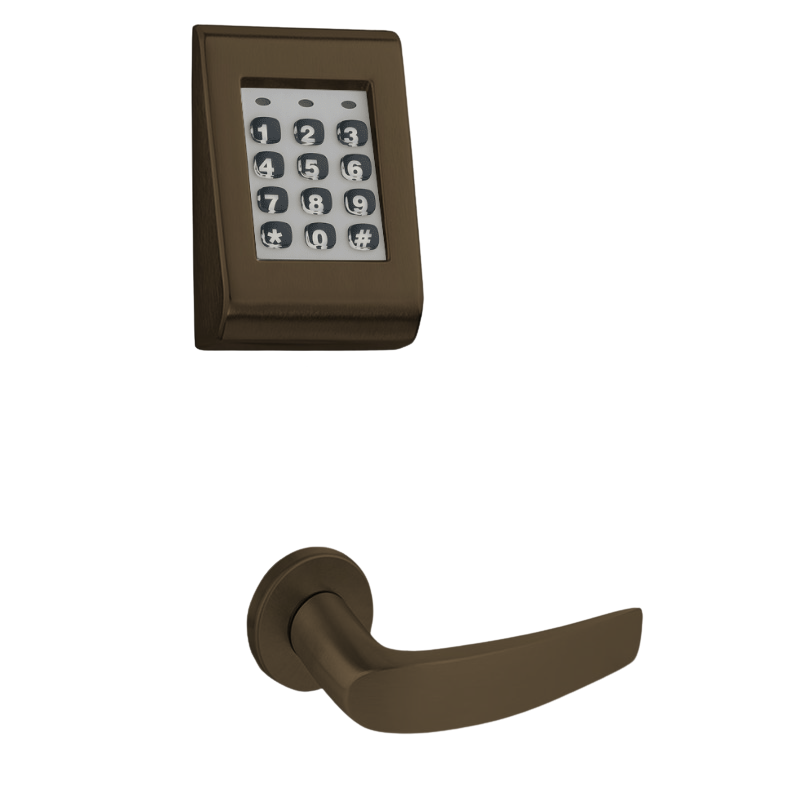

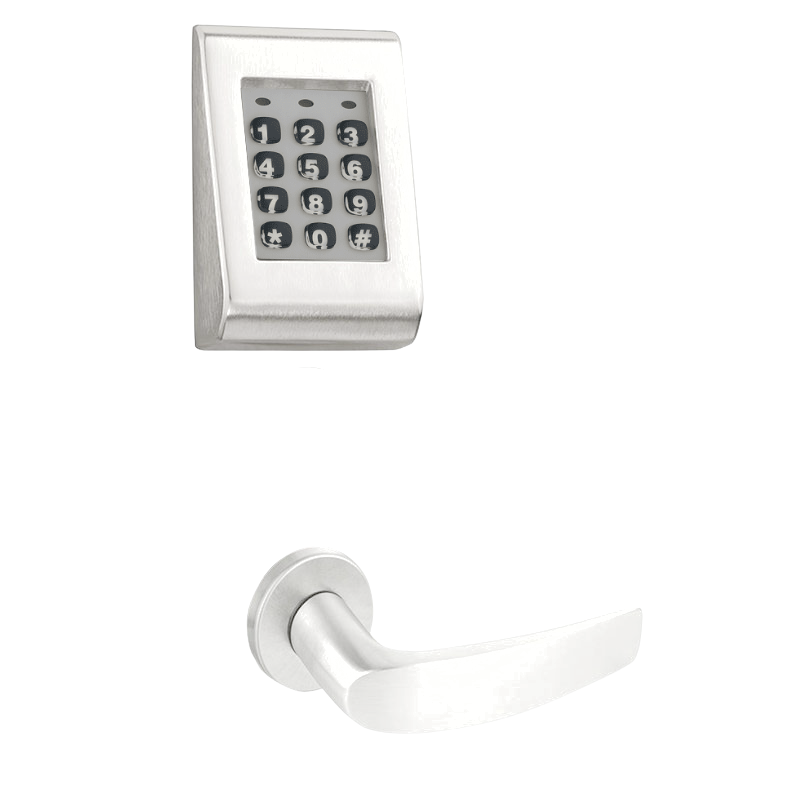

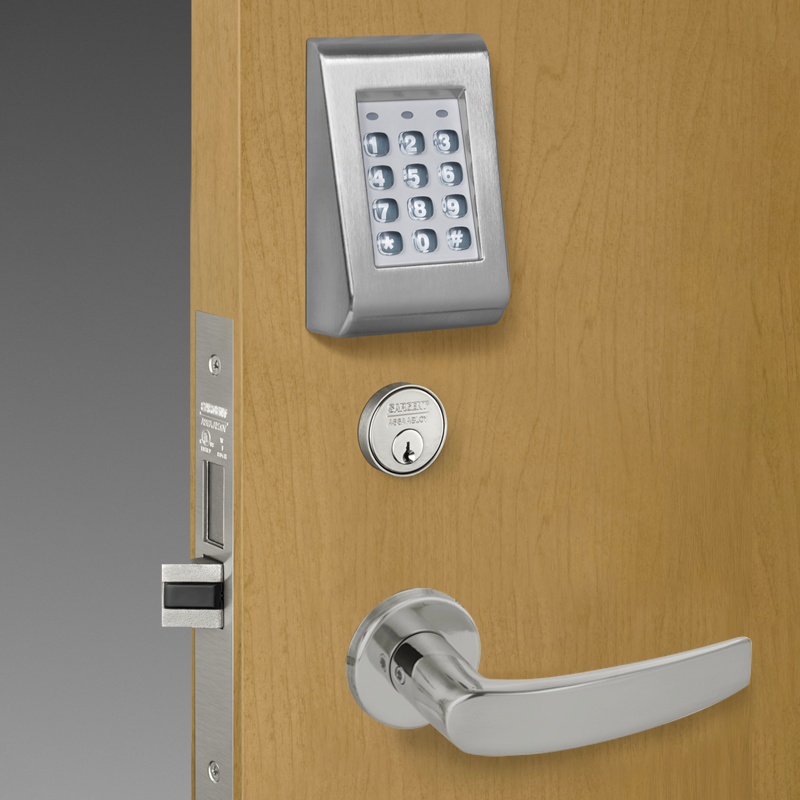

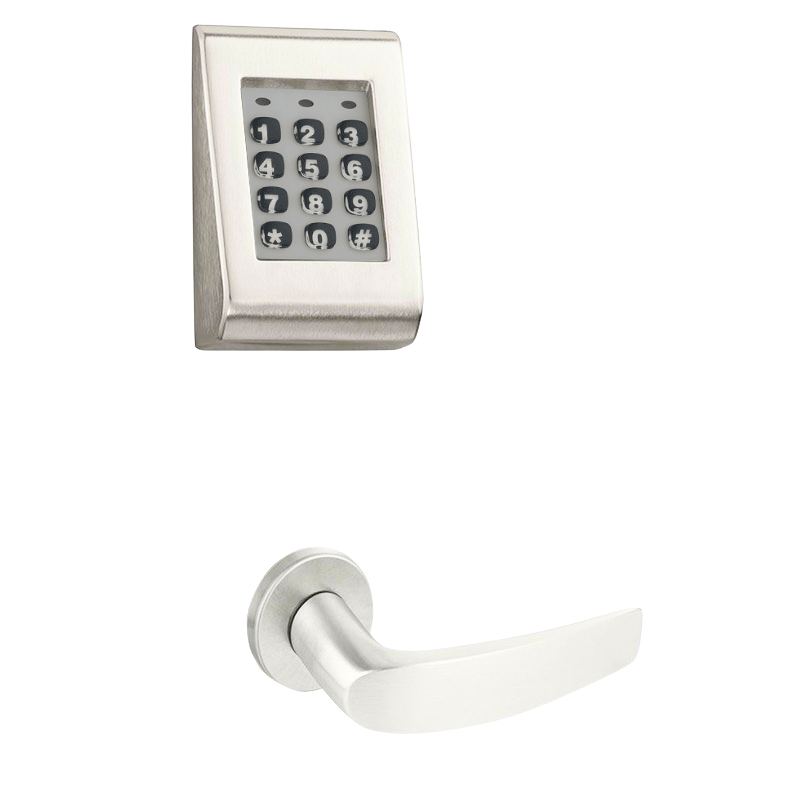

Sargent KP-8278-LNB-LC Keypad Mortise Lock, Entry Key Override, No Deadbolt, with Cylinder Override, Sold Less Cylinder, LN-Rose, B-Lever, Field Reversible

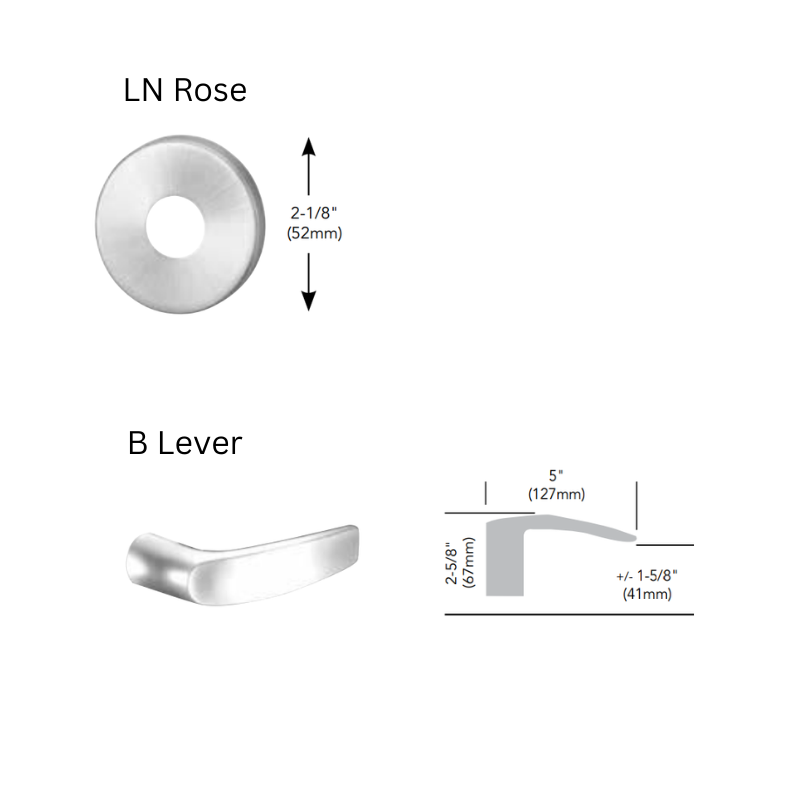

The Sargent KP-8278-LNB-LC Keypad Mortise Lock features an entry key override and excludes a deadbolt. It includes a cylinder override and is sold without the cylinder. Designed with an LN-Rose and B-Lever, this lock is field reversible for flexible installation.
8278 Profile Series Mortise Locks
The 8278 Profile Series has a clean, crisp design and is available in 13 lever designs and 10 hardware finishes.
The 8278 Series is an excellent choice for rest room doors prpviding privacy when the dead bolt is thrown.
- Key outside retracts latchbolt
- Lever inside retracts latchbolt
- Lever outside rigid except when in “passage” mode or with valid user credential
- Auxiliary deadlatch
- Deadlocking latch
| Manufacturer | Sargent |
| SKU | KP8278 LNB |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Series Name | Profile |
| Lock Platform | Mortise Lock |
| Reader Technology | Keypad Only |
| Keypad Type | Electronic |
| # Users | 100 |
| Cylinder Type | Less Cylinder |
| Door Thickness | 1 3/4 In. |
| Power | 4 C Batteries |
| Product Type | Mortise Locks with Keypad Trim |
