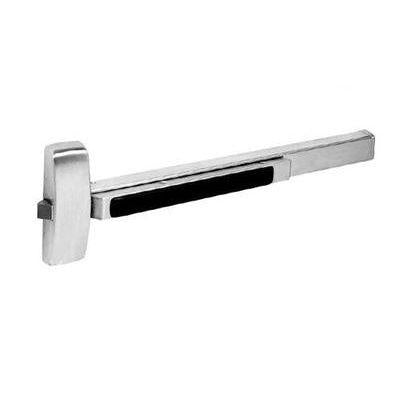

The Sargent LC-8816-G-ETL is a 48" Rim Exit Device a Grade 1 Exit Device with a Classroom Security Function, with ETL Trim that comes Less Cylinder, has Hex Key Dogging, and is for 43"-48" Door Widths.
16 Classroom Security ET Trim
Key Outside Retracts Latch; Key Inside Unlocks/Locks O/S Trim
O/S #34 Cylinder & I/S #44 Cylinder
The 8800 series is designed for standard-width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
- Single-point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Classroom Security |
| Device Length | 48" |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | ETL |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 43" to 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Rim Exit Devices |
