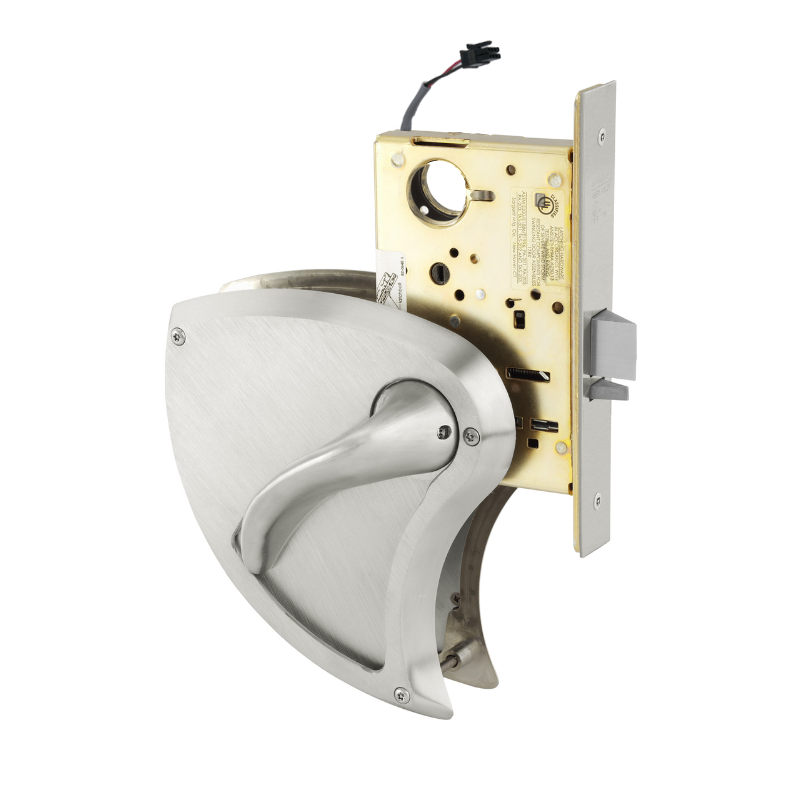

Sargent RX-8205-BHW-US32D-LC Behavioral Health Mortise Lock, Office or Entry Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel

Sargent RX-8205-BHW-US32D-LC Behavioral Health Office or Entry Function Mortise Lock, Key Retracts Latch, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, handing must be specified, 630 Satin Stainless Steel

Sargent RX-8205-BHW-US32D-LC Behavioral Health Mortise Lock designed for office or entry use features a key-retractable latch and BHW trim. Equipped with the "RX" request-to-exit switch and available without a cylinder, this Grade 1 lock, handing must be specified, and finished in 630 satin stainless steel.

• Office or Entry Function:
  • Key outside retracts latchbolt, also locks & unlocks outside trim

  • Trim inside always retracts latchbolt, trim outside remains locked

  • Thumbturn inside locks & unlocks outside trim

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
