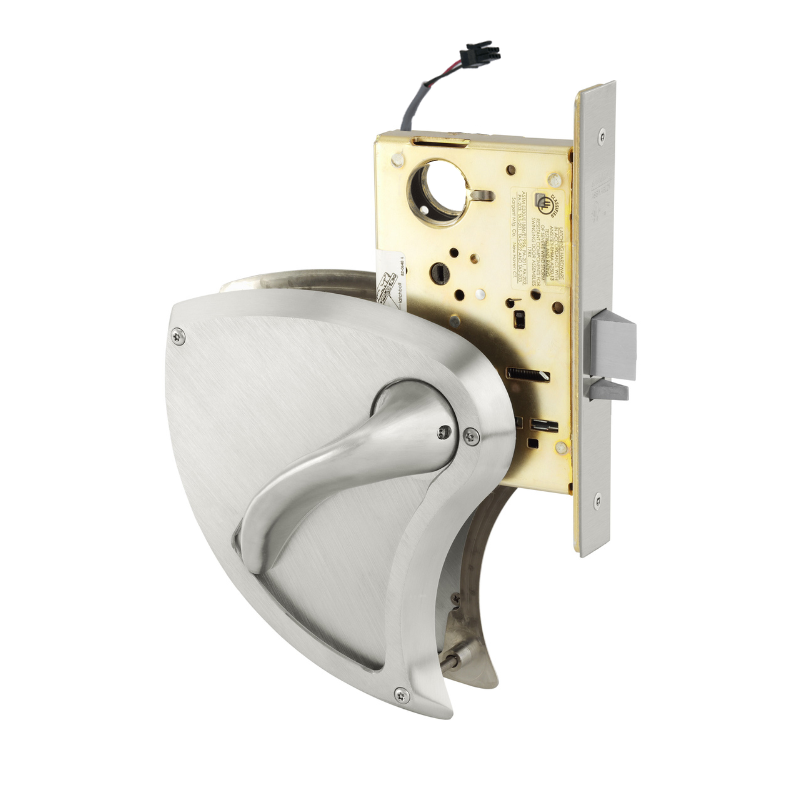

Sargent RX-8238-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Security Intruder Latchbolt Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel

Sargent RX-8238-BHW-US32D-LC Behavioral Health Classroom Security Intruder Latchbolt Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, handing must be specified, 630 Satin Stainless Steel

The Sargent RX-8238-BHW-US32D-LC is a Grade 1 mortise lock designed for behavioral health classrooms, featuring an intruder latchbolt function for enhanced security. It includes the BHW trim and an "RX" request-to-exit switch. This lock comes without a cylinder and, handing must be specified, finished in durable 630 satin stainless steel.

• Classroom Security Intruder Latchbolt Function:
  • Key from either side locks & unlocks outside trim

  • Key from either side retracts latchbolt

  • Trim outside retracts latchbolt, except when locked

  • Trim inside always retracts latchbolt

  • A Multi-Function 8200/R8200/7800 Lockbody

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
