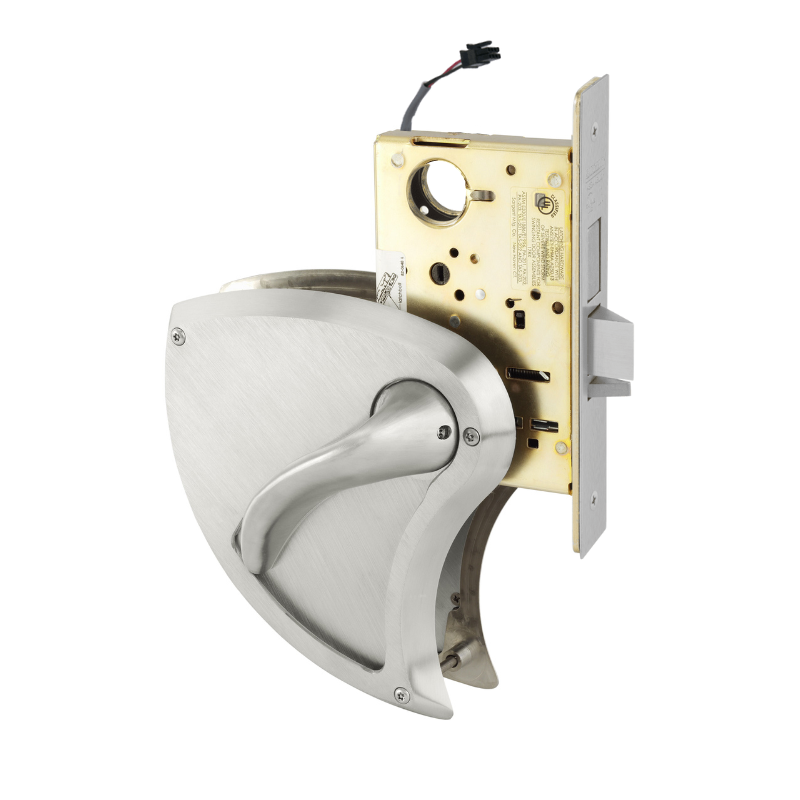

Sargent RX-8240-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Security Intruder Deadbolt Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel

Sargent RX-8240-BHW-US32D-LC Behavioral Health Classroom Security Intruder Deadbolt Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, handing must be specified, 630 Satin Stainless Steel

The Sargent RX-8240-BHW-US32D-LC is a Grade 1 behavioral health mortise lock designed for classroom security. Featuring an intruder deadbolt function and BHW trim, it includes the "RX" Request To Exit switch and comes without a cylinder. Its field-reversible design in 630 satin stainless steel ensures durable, professional-grade performance.

• Classroom Security Intruder Deadbolt Function:
  • Key from either side retracts or projects deadbolt which also unlocks or locks outside trim

  • Trim outside retracts latchbolt, except when locked

  • Trim outside is only locked by projecting the deadbolt

  • Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
