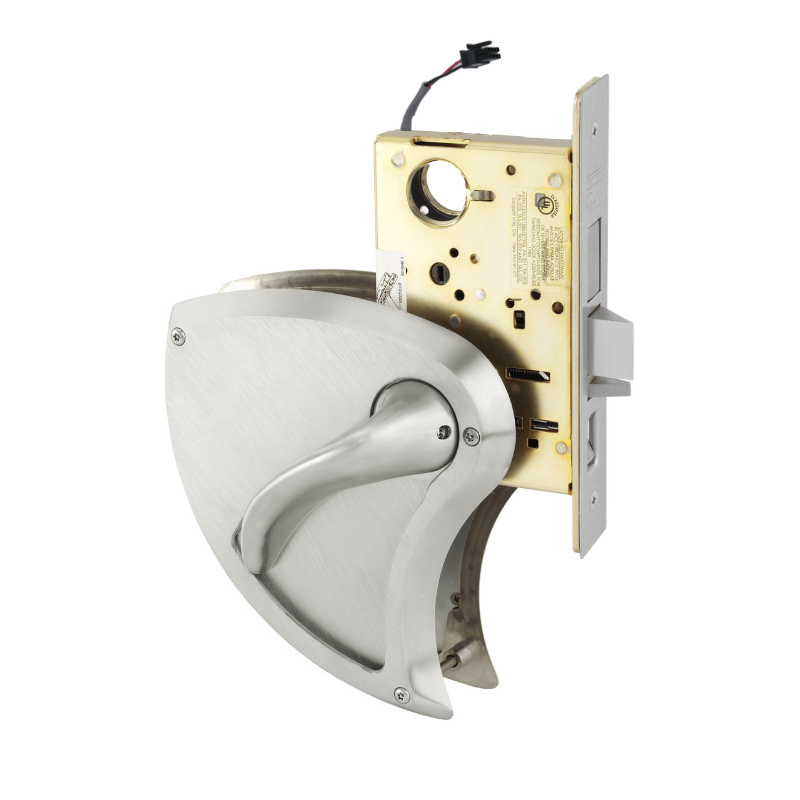

Sargent RX-8243-BHW-US32D-LC Behavioral Health Mortise Lock, Apartment Corridor Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel

Sargent RX-8243-BHW-US32D-LC Behavioral Health Apartment Corridor Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8243-BHW-US32D-LC is a Grade 1 Behavioral Health mortise lock designed for apartment corridor use, featuring BHW trim and an integral "RX" request-to-exit switch. It comes without a cylinder and offers field reversibility for flexible installation. Finished in durable 630 satin stainless steel, this lock is built to meet rigorous security and performance standards.

• Apartment Corridor Door Function:
  • Key and thumbturn both retract & project the deadbolt

  • Trim outside is locked by toggle or projecting deadbolt

  • Trim outside is unlocked by toggle only

  • Key retracts both latchbolt and deadbolt, trim outside remains locked

  • Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside
    remains locked Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
