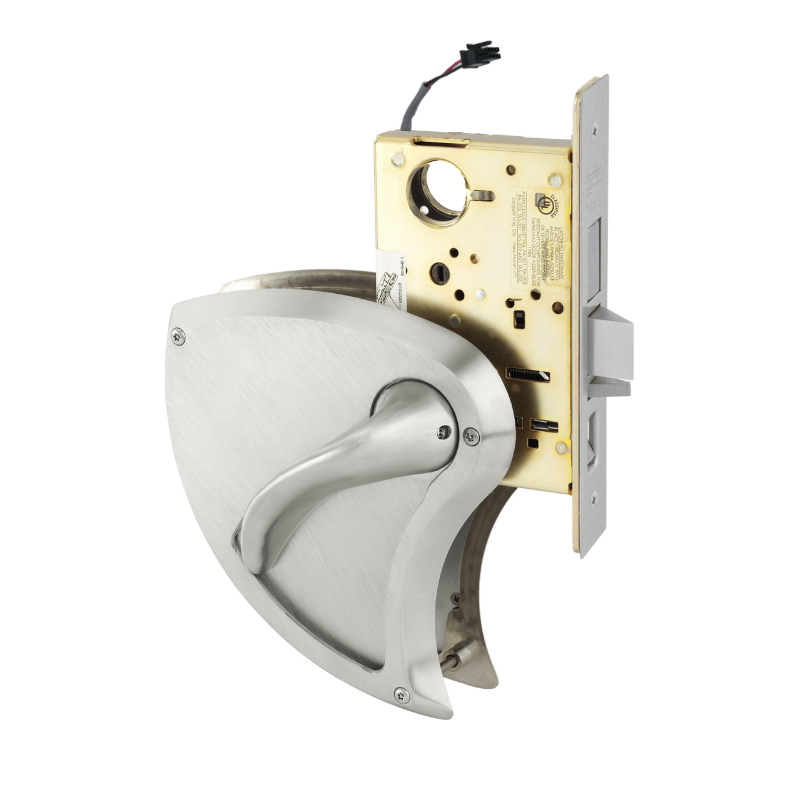

Sargent RX-8245-BHW-US32D-LC Behavioral Health Mortise Lock, Dormitory or Exit Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel

Sargent RX-8245-BHW-US32D-LC Behavioral Health Dormitory Or Exit Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8245-BHW-US32D-LC is a Behavioral Health mortise lock designed for dormitory or exit applications. Featuring BHW trim and an "RX" Request To Exit switch, this Grade 1 lock is field reversible and comes without a cylinder. Its durable satin stainless steel finish ensures both strength and longevity.

• Dormitory or Exit Function:
  • Key and thumbturn both retract & project deadbolt

  • Trim outside is locked by toggle or projecting deadbolt

  • Trim outside is unlocked by toggle only

  • Key retracts both latchbolt and deadbolt, trim outside remains locked

  • Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
