Product Cut Sheet
Description
Active

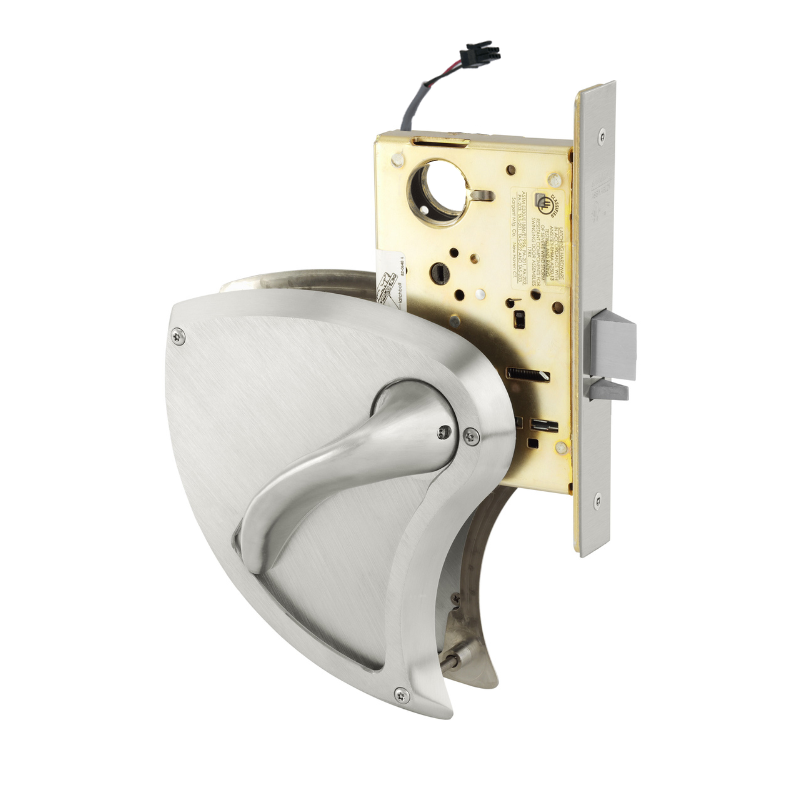

Sargent RX-8270-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder, Fail Safe 12VDC, "RX" Request To Exit Switch, Less Cylinder, Grade 1, handing must be specified, 630 Satin Stainless Steel
The Sargent RX-8270-BHW-12VDC-US32D-LC is a Grade 1 Behavioral Health electrified mortise lock featuring BHW trim with a single cylinder and a fail-safe 12VDC power supply. It includes an integrated "RX" request-to-exit switch and, handing must be specified,. Finished in 630 satin stainless steel and supplied without a cylinder.
- Electrical (Fail Safe) Function:
- 70 function — Power ON, locks outside lever
- Key outside retracts latchbolt
- Lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
- 70 function — Power ON, locks outside lever
- RX- option — Request-to-Exit or Enter Signaling Switch
- Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Uses standard mortise prep
- Less Cylinder
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
70 Electrical (Fail Safe)
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
Less Cylinder
|
| Handing | Left Hand, Left Hand Reverse, Right Hand, Right Hand Reverse |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
