Product Cut Sheet
Description
Active

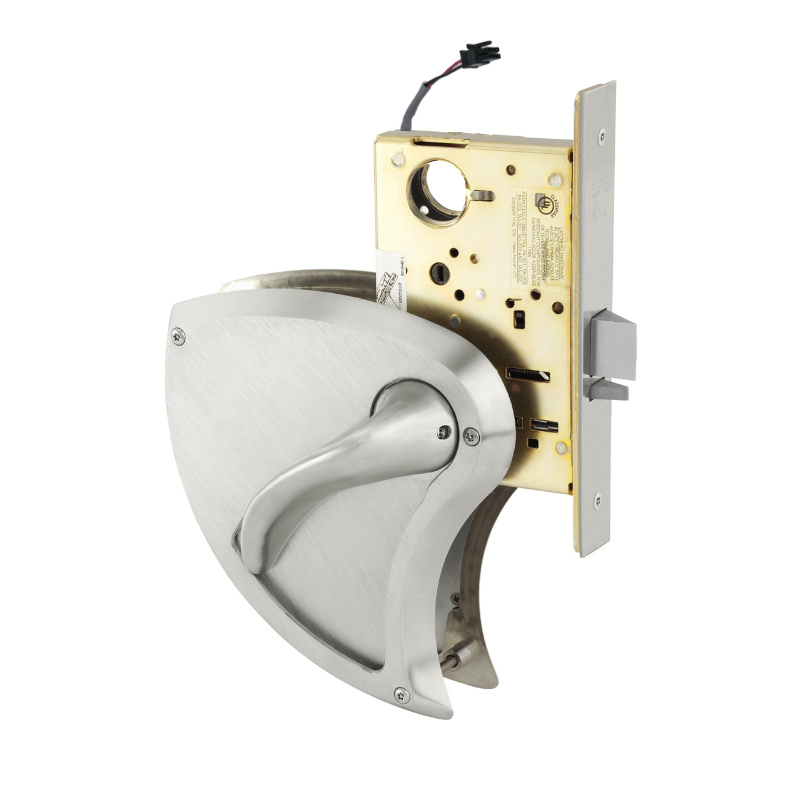

Sargent RX-8271-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder Fail Secure 12VDC, "RX" Request To Exit Switch, Less Cylinder, Grade 1, handing must be specified, 630 Satin Stainless Steel
The Sargent RX-8271-BHW-12VDC-US32D-LC is a Grade 1 Behavioral Health electrified mortise lock featuring BHW trim and a single-cylinder fail-secure design operating at 12VDC. It includes an "RX" request-to-exit switch, handing must be specified, and comes without a cylinder. Finished in 630 Satin Stainless Steel, this lock meets rigorous security and reliability standards for specialized applications.
- Electrical (Fail Secure) Function:
- 71 function — Power ON, unlocks outside lever
- Key outside retracts latchbolt
- Lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
- RX- option — Request-to-Exit or Enter Signaling Switch
- Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Uses standard mortise prep
- Less Cylinder
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
71 Electrical (Fail Secure)
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
Less Cylinder
|
| Handing | Left Hand, Left Hand Reverse, Right Hand, Right Hand Reverse |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
