Product Cut Sheet
Description
Active

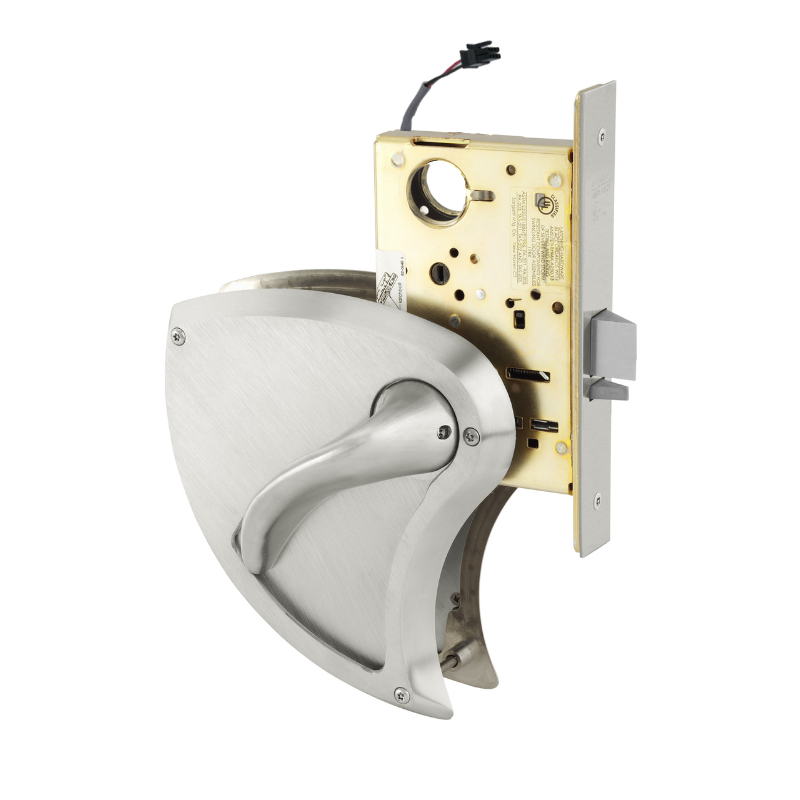

Sargent RX-8271-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder Fail Secure 24VDC, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent RX-8271-BHW-24VDC-US32D-LC is a Grade 1 Behavioral Health electrified mortise lock featuring a BHW trim and a single-cylinder fail-secure configuration operating at 24VDC. It includes the "RX" Request To Exit switch and comes without a cylinder, offering field-reversible installation. Finished in durable 630 satin stainless steel, this lock is designed for reliable security in sensitive environments.
- Electrical (Fail Safe) Function:
- 71 function — Power ON, unlocks outside lever
- Key outside retracts latchbolt
- Lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
- RX- option — Request-to-Exit or Enter Signaling Switch
- Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Uses standard mortise prep
- Less Cylinder
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
71 Electrical (Fail Secure)
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
Less Cylinder
|
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
