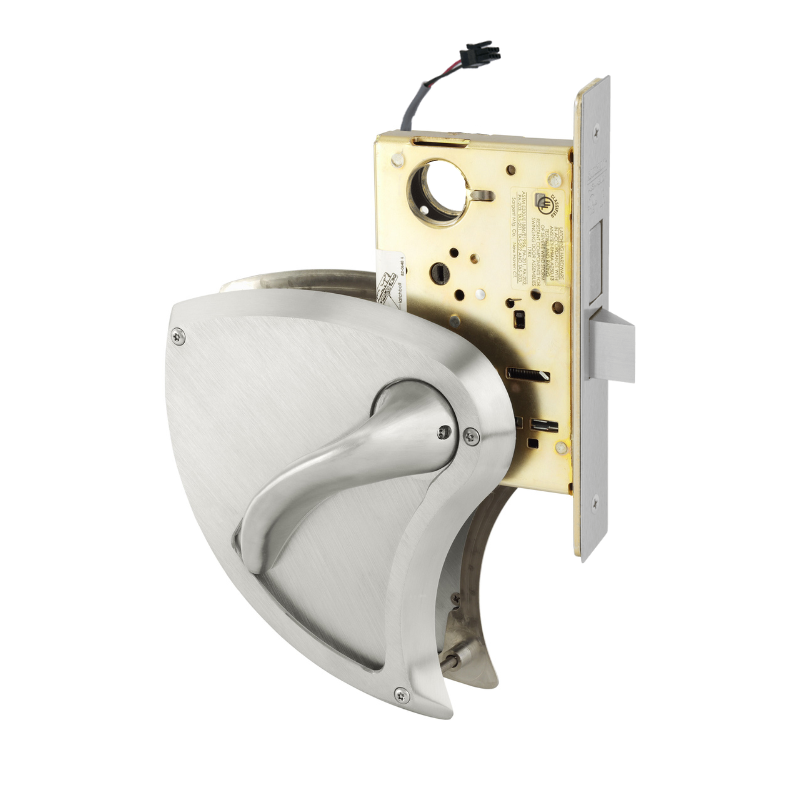

Sargent RX8239-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Security Intruder Deadbolt Function, Request To Exit Switch, BHW Trim, Less Cylinder, Satin Stainless Steel

Sargent RX-8239-BHW-US32D-LC Behavioral Health Classroom Security Intruder Deadbolt Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, handing must be specified, 630 Satin Stainless Steel

The Sargent RX-8239-BHW-US32D-LC is a Grade 1 mortise lock designed for behavioral health environments, featuring an intruder deadbolt function and BHW trim. Equipped with the "RX" request-to-exit switch and provided without a cylinder, this lock offers, handing must be specified, installation and a durable satin stainless steel finish. Ideal for securing classroom settings with enhanced safety measures.

• Classroom Security Intruder Deadbolt Function:
  • Key either from side retracts or projects deadbolt which also unlocks or locks outside trim

  • Trim outside retracts latchbolt, except when locked

  • Trim outside is only locked by projecting the deadbolt

  • Trim inside retracts both latchbolt and deadbolt simultaneously, and unlocks outside trim
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
