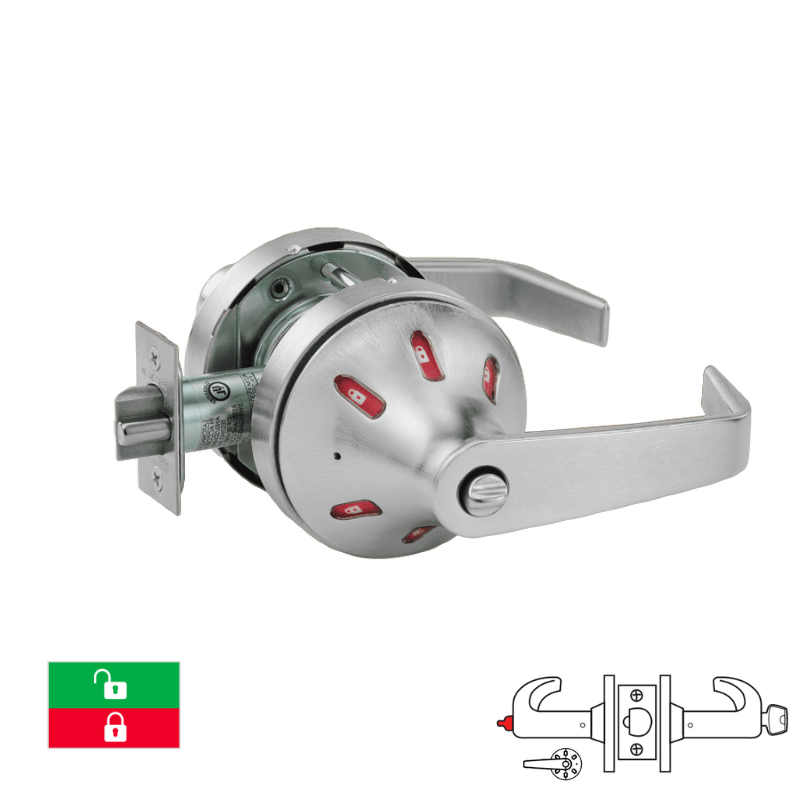

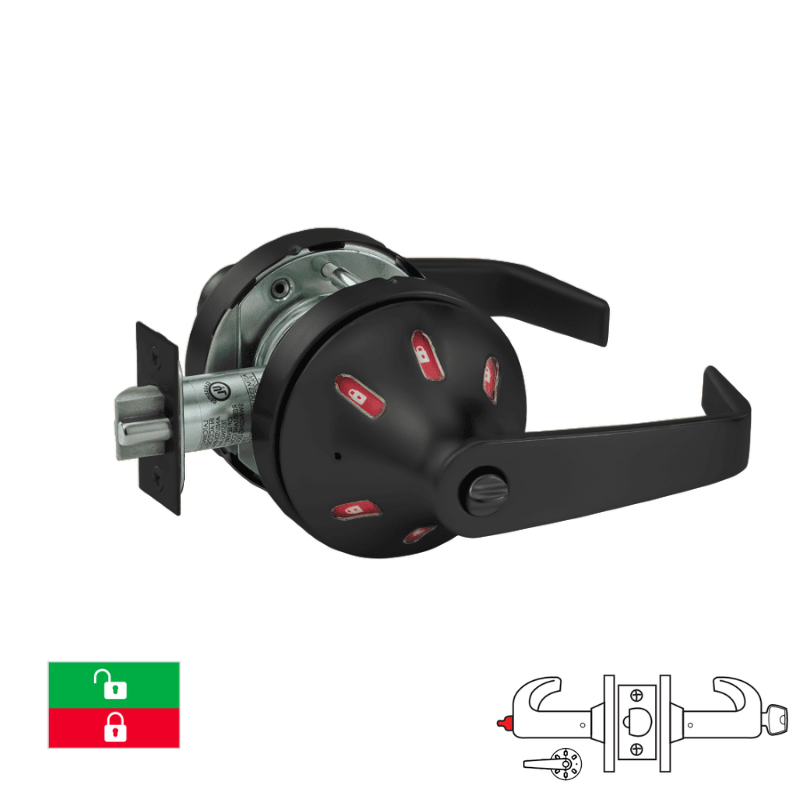

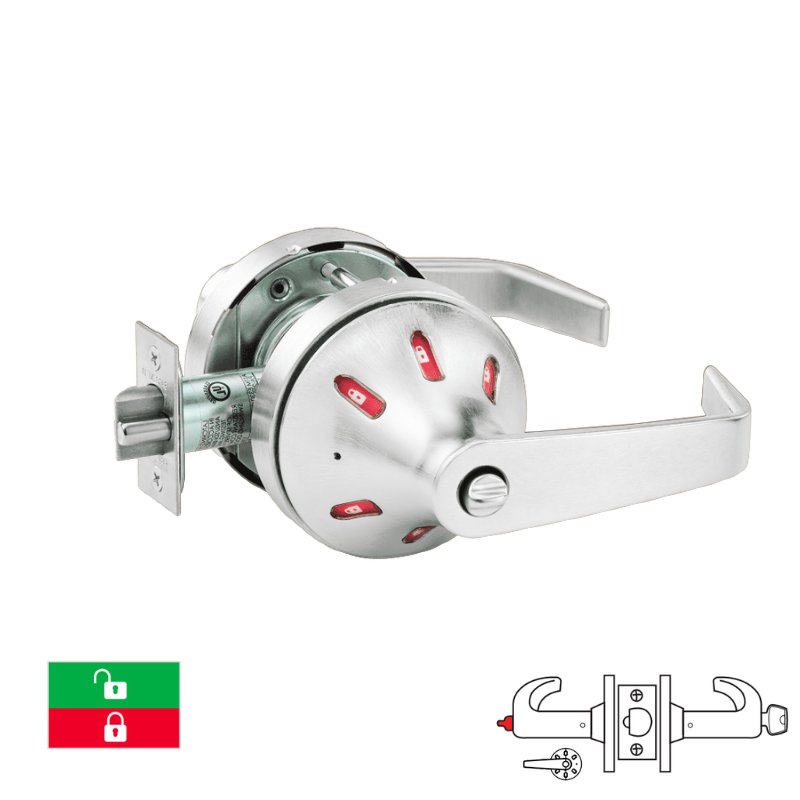

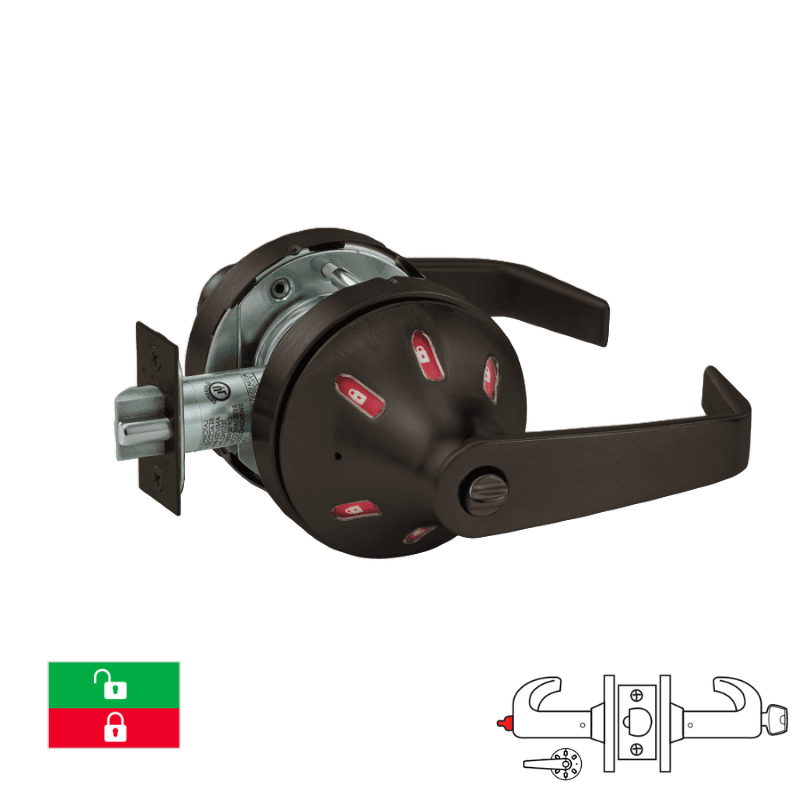

Sargent V03-10XG05-VSLL-LAKD Office Function Cylindrical Indicator Lock, VSLL Trim Inside Only, Green/Red, LA Keyway Keyed Random

SARGENTSKU: V0310XG05VSLLUS26DLAKD

Finish: US26D-626 Satin Chrome
Price:
Sale price$574.57/ea
Available (2 Weeks)
2 Weeks Lead Time

Related Hardware

Sargent V03-10XG05-VSLL-LAKD Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent V03-10XG05-VSLL-LAKD Office Function Cylindrical Lock features a Grade 1 rating for maximum durability and security. It includes a "VSL" rose with an "L" lever design, providing comfortable operation. The lock has a visual indicator trim inside only, displaying green and red to signal occupancy status, enhancing privacy control. With a 2 3/4-inch backset and a 4 7/8-inch strike, it fits standard door preparations. The LA keyway is keyed random and comes with two keys, ensuring restricted access and reliable performance in office environments.

Entrance or Office Function:

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by push/turn button in inside lever
  • Push button released by key outside or lever inside
  • Turn button must be released manually
  • Key retracts latch when outside lever is locked
  • ANSI/BHMA F109

Single Indicator:

Option Code Outside Inside  Color
V30 Indicator Trim Standard Trim Green/Red - Icon
V60 Indicator Trim Standard Trim White/Red - Icon
V03 Standard Trim Indicator Trim Green/Red - Icon
V06 Standard Trim Indicator Trim White/Red - Icon

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.

Manufacturer Sargent
SKU V03-10XG05-LAKD VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 05-Entrance or Office
Function Family Privacy
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type LA Keyway Keyed Random [2] Keys
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
