Sargent V03-10XG44-VSLL-LAKD Service Station Cylindrical Indicator Lock, Inside Only Visual Indicator

Sargent V03-10XG44-VSLL-LAKD Service Station Function Cylindrical Lock,  Visual Indicator Trim Inside Only, Green/Red, Grade 1, "VSL" Rose, "L" Lever Design, 2 3/4 Backset, 4 7/8 Strike,  LA Keyway Keyed Random [2] Keys

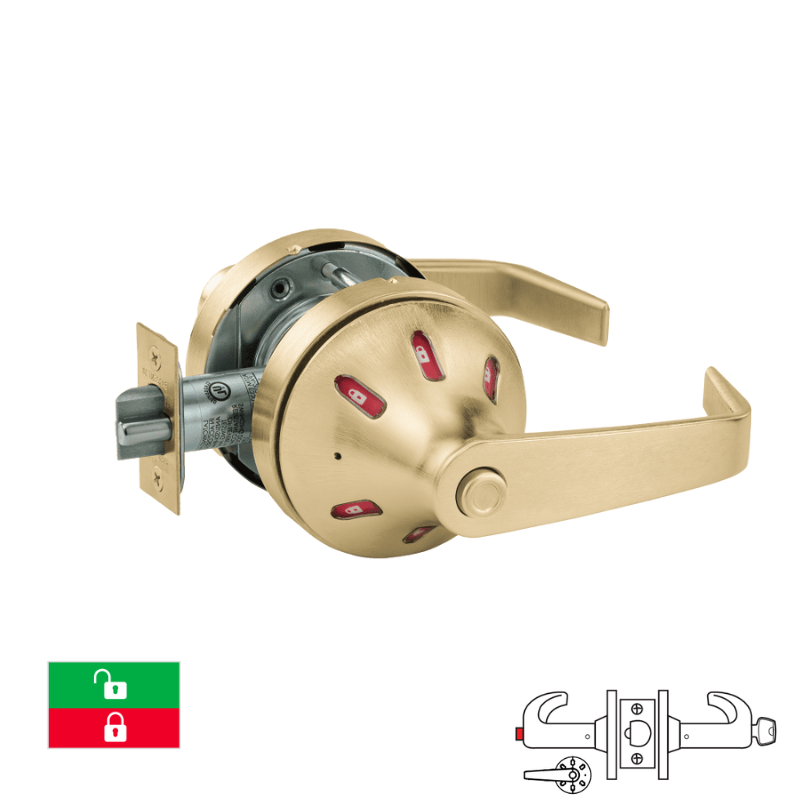

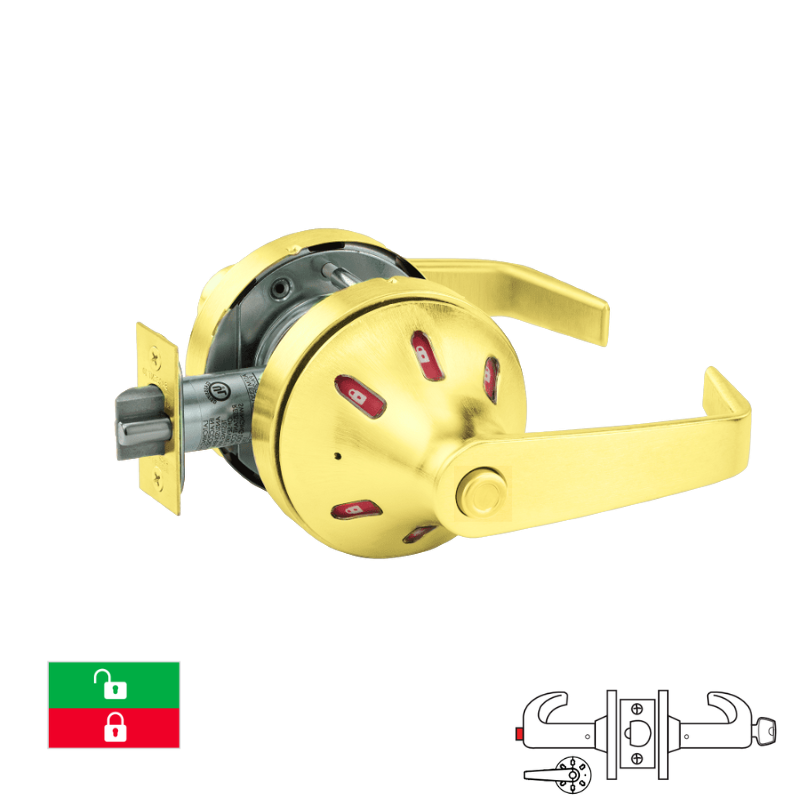

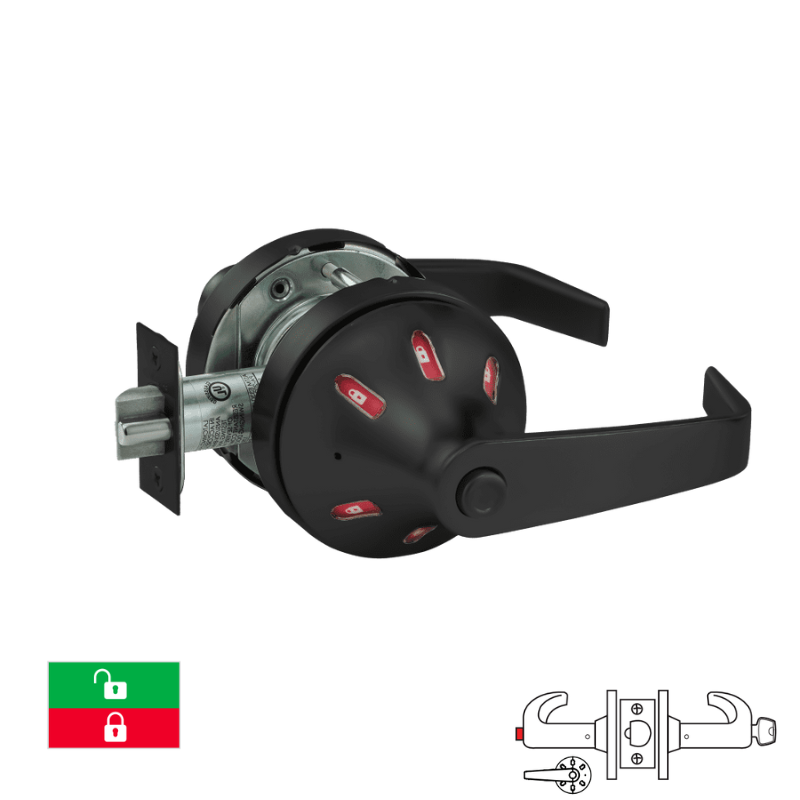

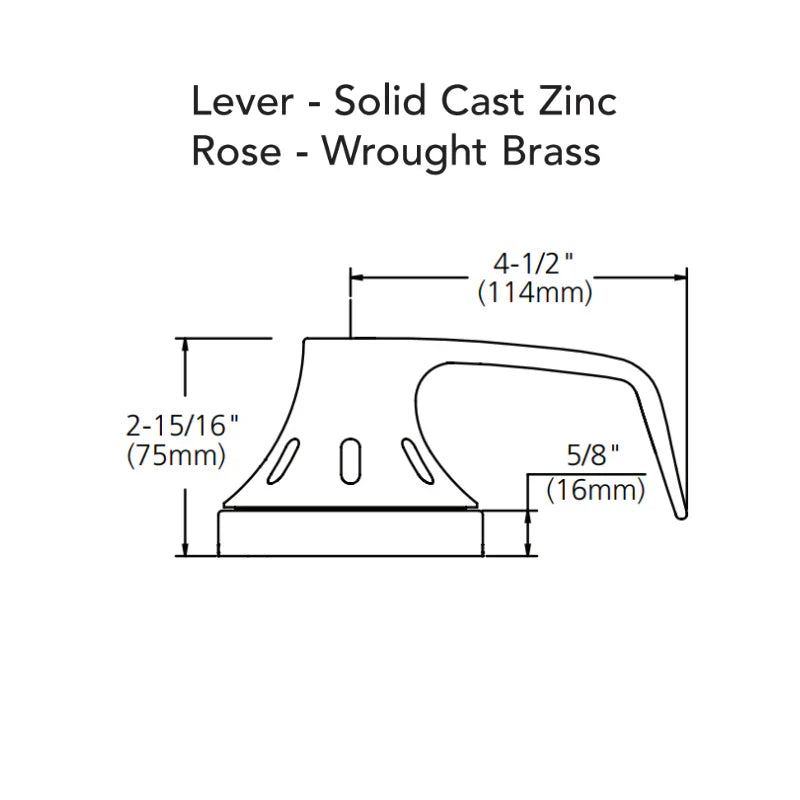

Sargent V03-10XG44-VSLL-LAKD cylindrical lock engineered for service station applications with Grade 1 security rating. Features visual indicator trim on the inside only, displaying green and red status signals for occupancy monitoring. Equipped with VSL rose design and L-pattern lever handle. Configured with 2 3/4" backset, 4 7/8" strike plate, and LA keyway. Includes two randomly keyed keys for enhanced security. Ideal for high-traffic commercial environments requiring reliable access control and visual occupancy verification.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F92

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
