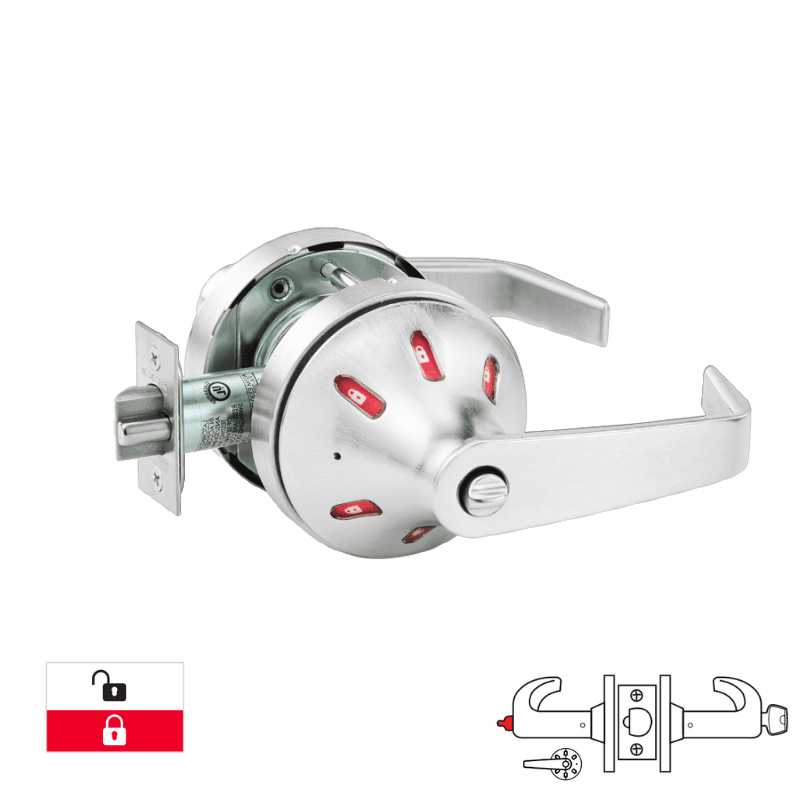

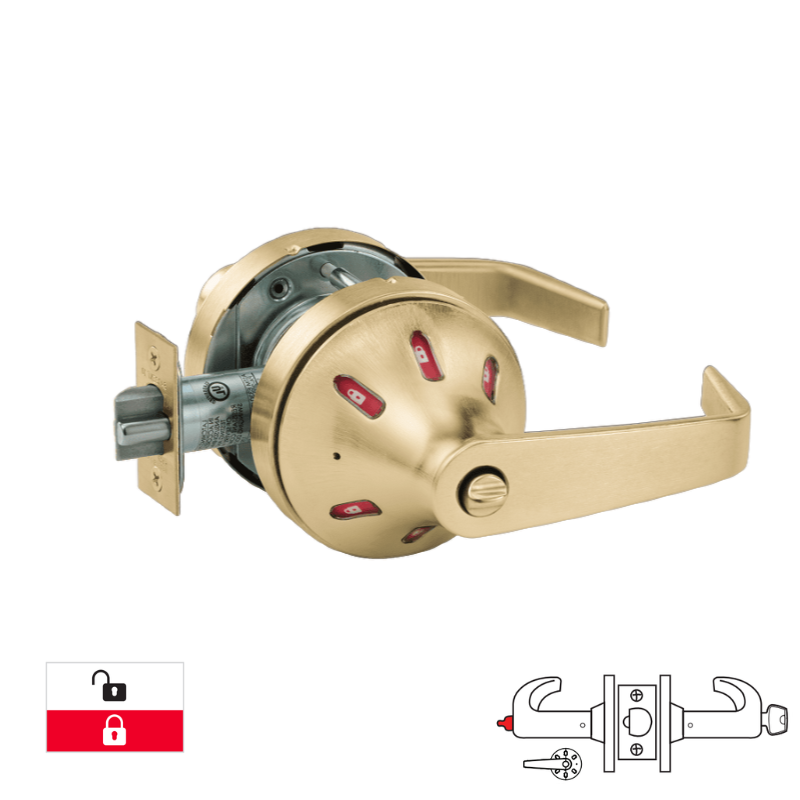

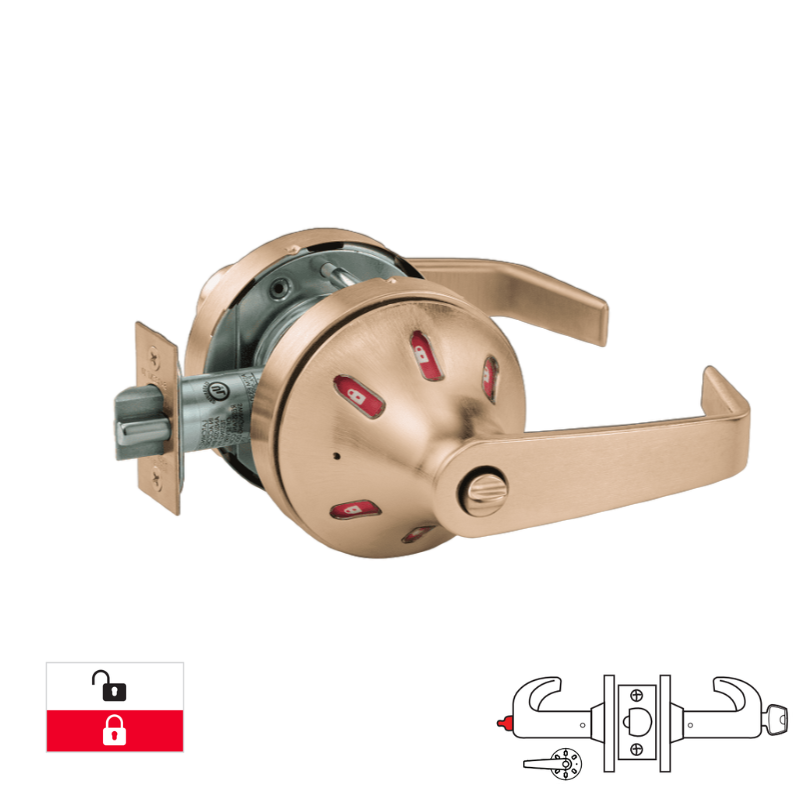

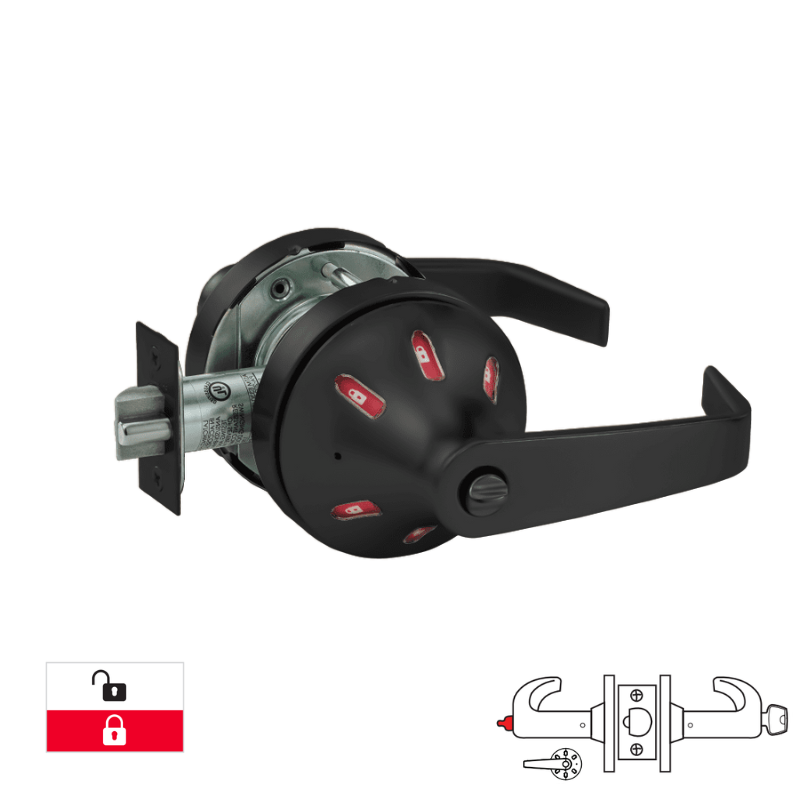

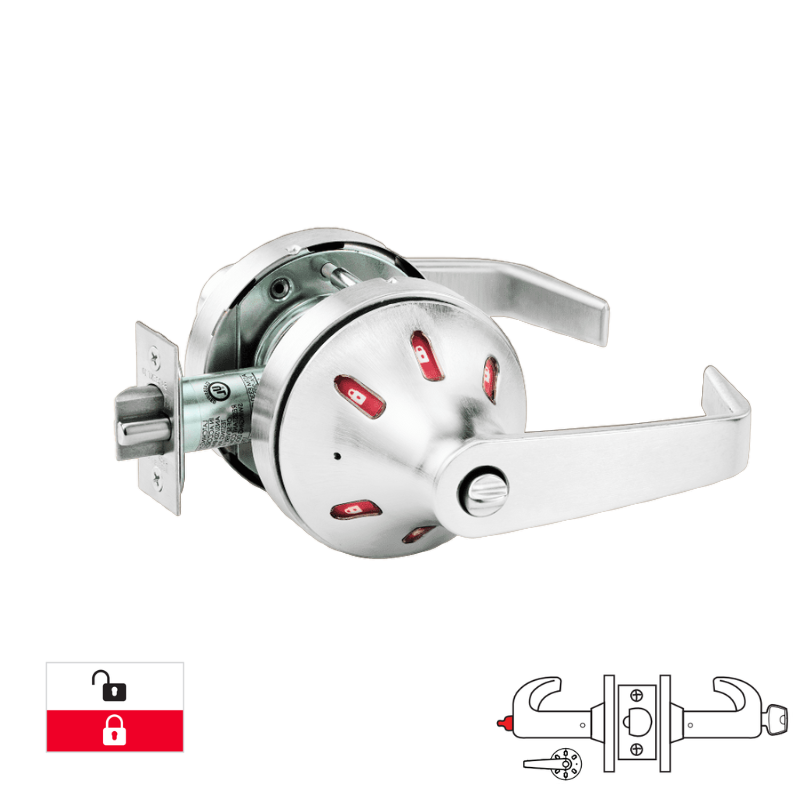

Sargent V06-10XG05-VSLL-LAKD Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
The Sargent V06-10XG05-VSLL-LAKD is a Grade 1 cylindrical lock designed for office use, featuring a "VSL" rose and an "L" lever. It includes a white/red visual indicator trim on the inside, a 2 3/4-inch backset, and a 4 7/8-inch strike. This model comes keyed random with an LA keyway and includes two keys.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
Single Indicator:
Option Code |
Outside |
Inside |
Color |
V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
