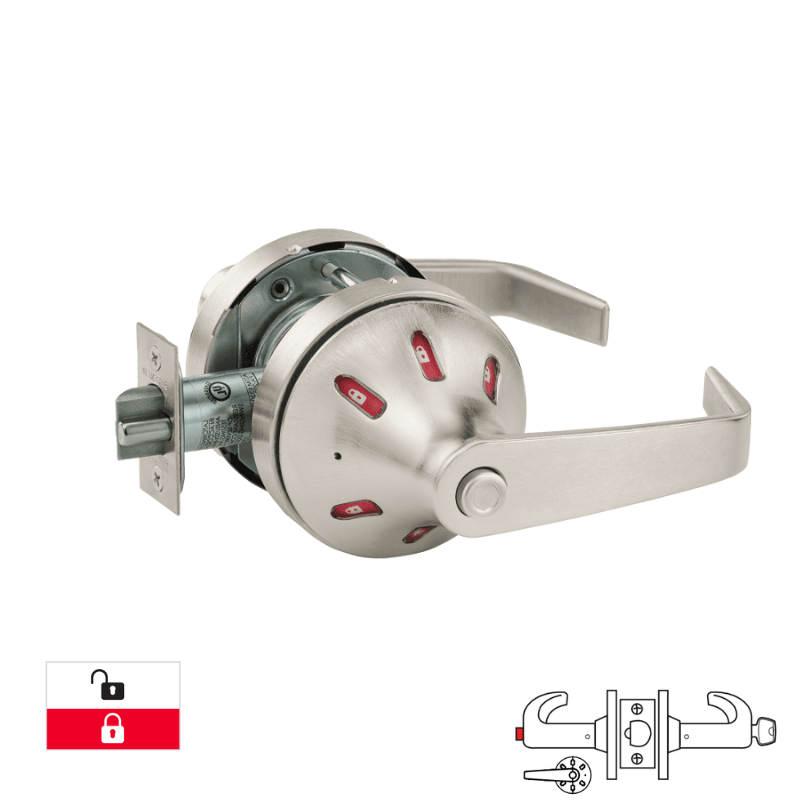

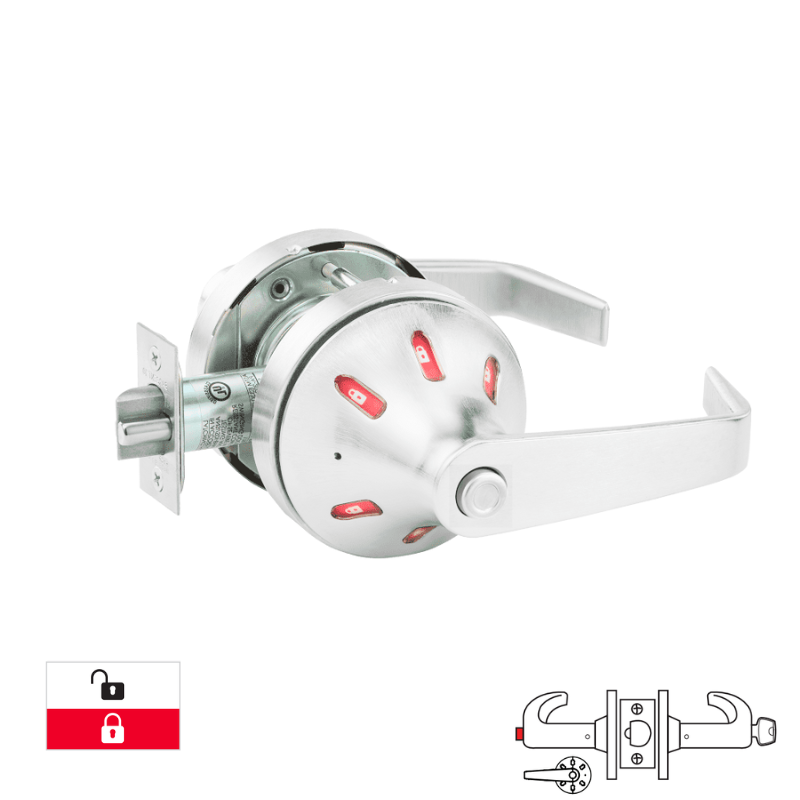

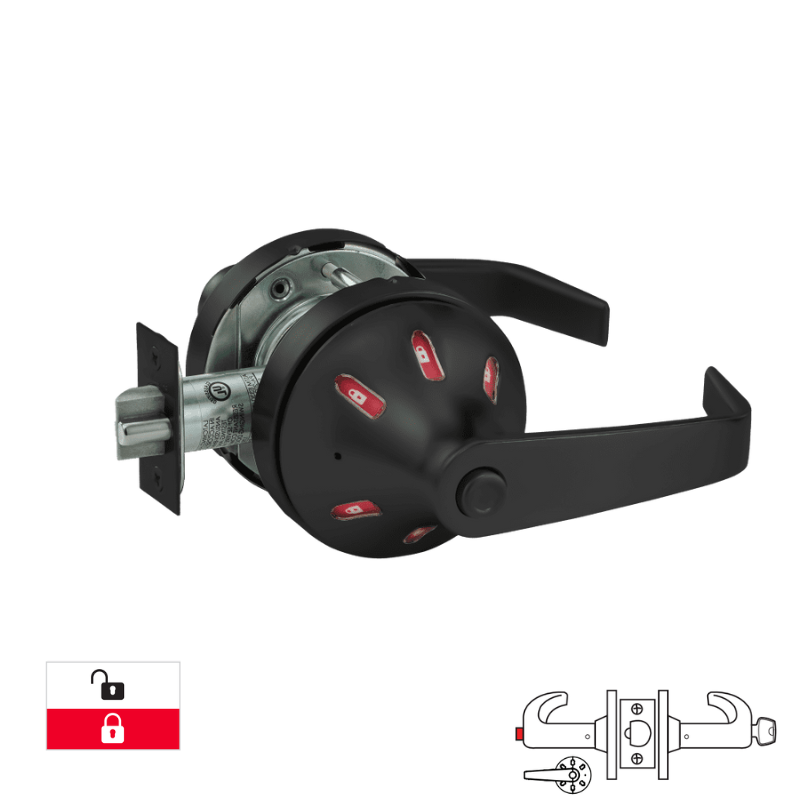

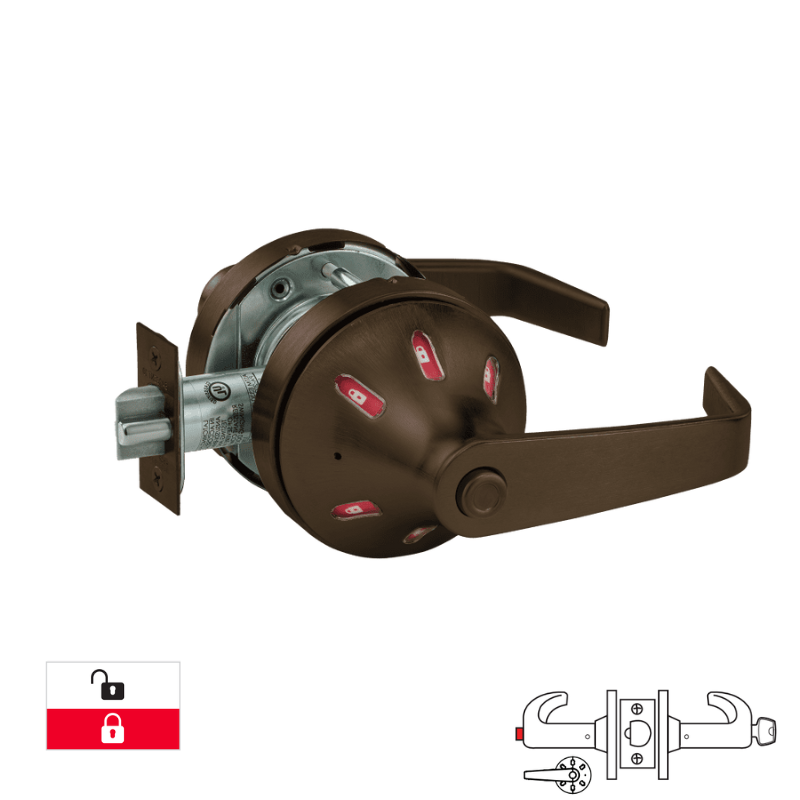

Sargent V06-10XG44-VSLL-LAKD Service Station Cylindrical Indicator Lock, Visual Indicator Inside Only

Sargent V06-10XG44-VSLL-LAKD Service Station Function Cylindrical Lock, White/Red, 2 3/4 Backset, 4 7/8 Strike, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, LA Keyway Keyed Random [2] Keys

Sargent V06-10XG44-VSLL-LAKD cylindrical lock engineered for service station applications requiring controlled access. Features Grade 1 construction with deadlocking latch mechanism, allowing operation via either lever unless the outside lever is secured by the inside push button. The LA keyway accommodates two random keys for exterior access, while the interior visual indicator provides occupancy status at a glance. With a 2 3/4" backset and 4 7/8" strike, this lock integrates seamlessly into standard door frames. The slotted coin slot mechanism enables fixed locking positions when needed. ANSI/BHMA F92 certified for commercial-grade reliability and security.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F92

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
