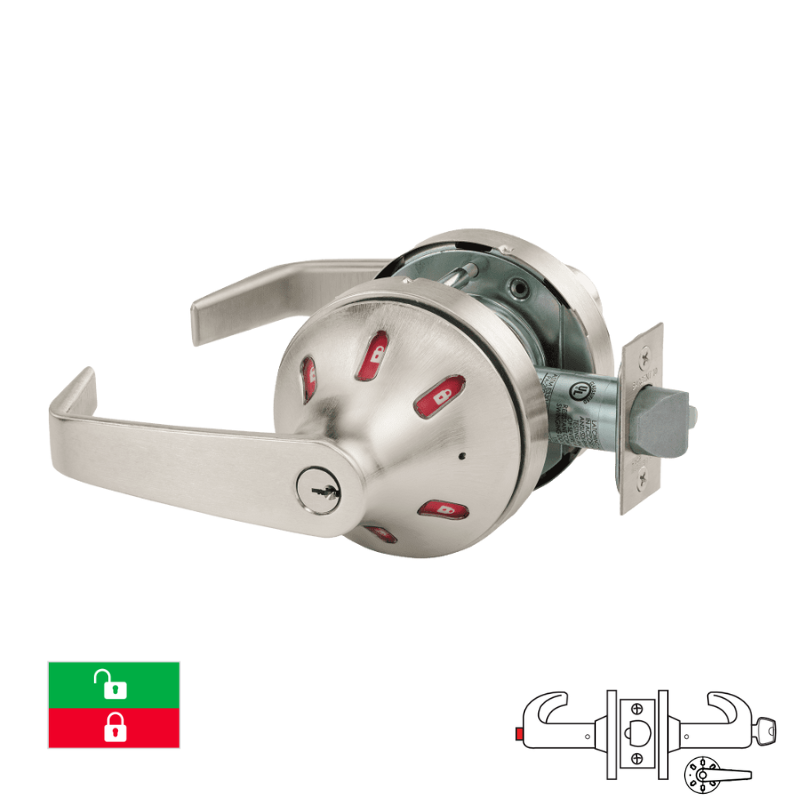

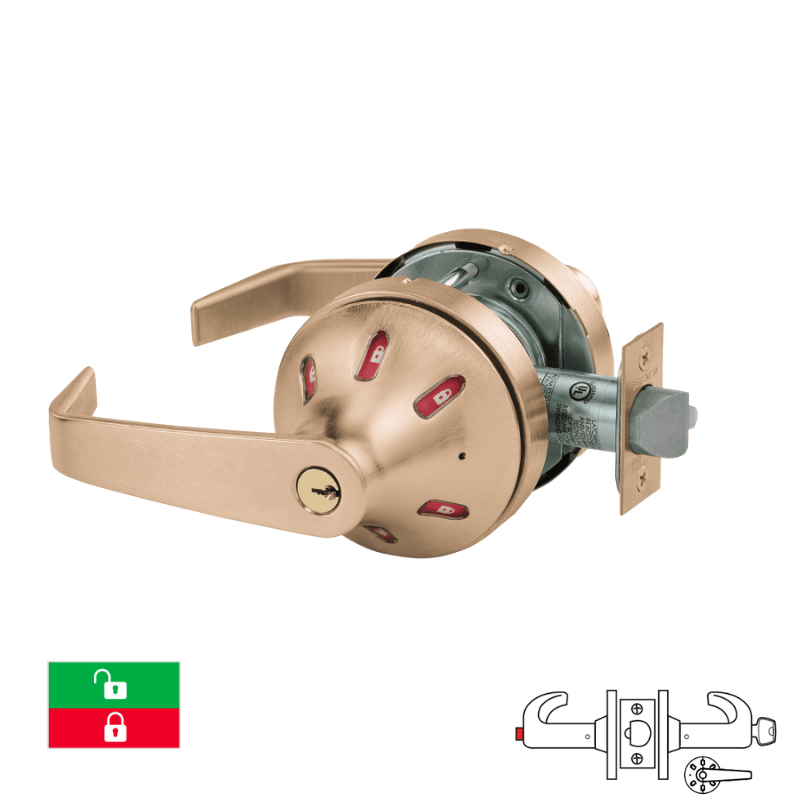

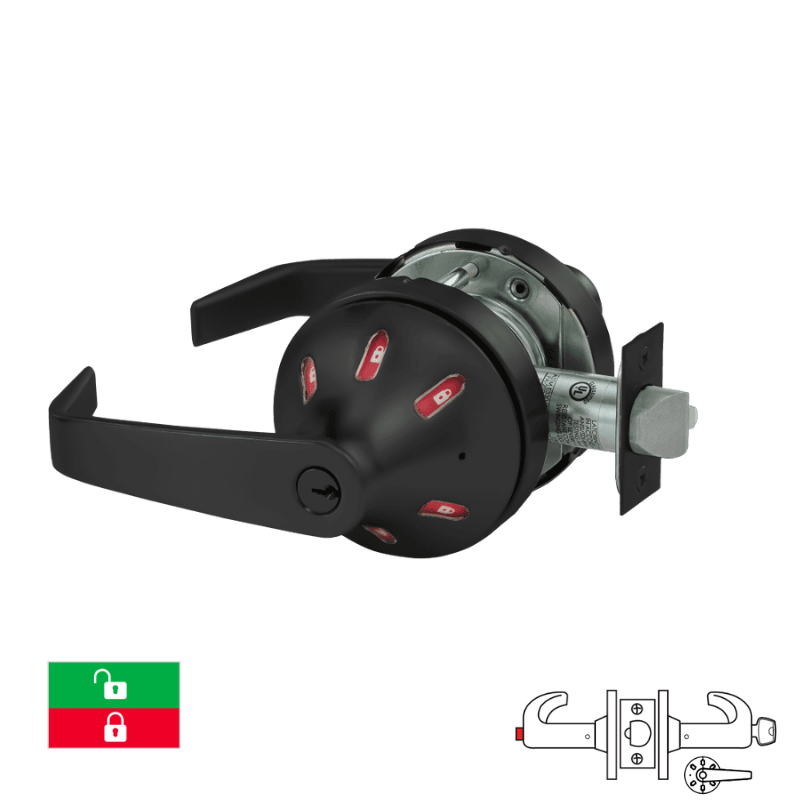

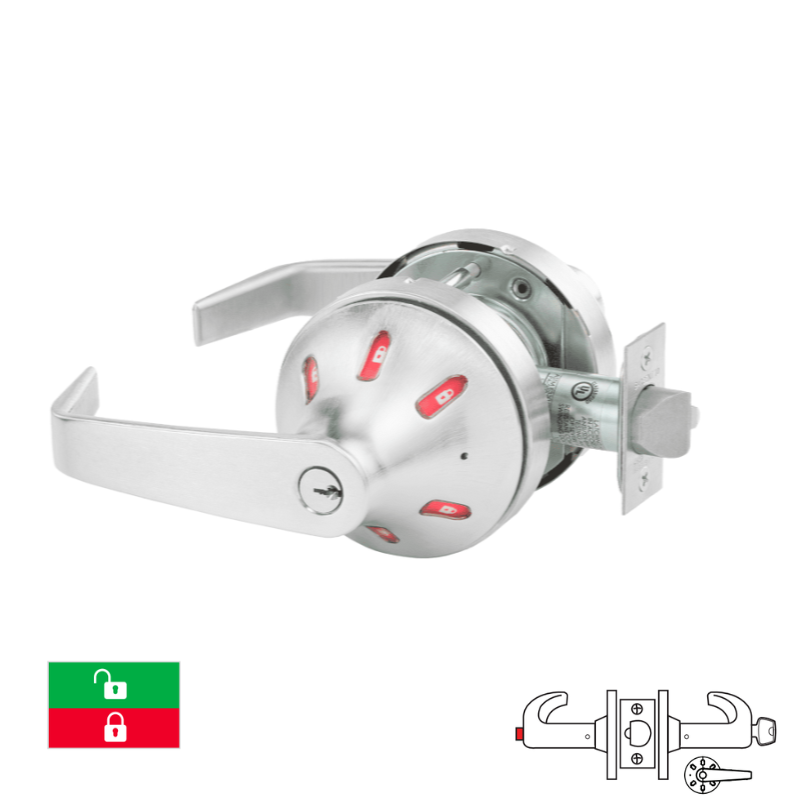

Sargent V30-10XG44-VSLL-LAKD Service Station Function Cylindrical Lock, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red
Sargent V30-10XG44-VSLL-LAKD cylindrical lock delivers Grade 1 security for service station applications with exterior-only visual indicator trim. Features a 2 3/4" backset, 4 7/8" strike, and LA keyway configuration. The "L" lever design pairs with VSL rose trim for reliable performance. Includes two random keys and green/red indicator functionality to signal occupancy status at a glance.
Service Station Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Key retracts latch when outside lever is locked
- Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
- Slotted inside button must be manually released
- ANSI/BHMA F92
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
