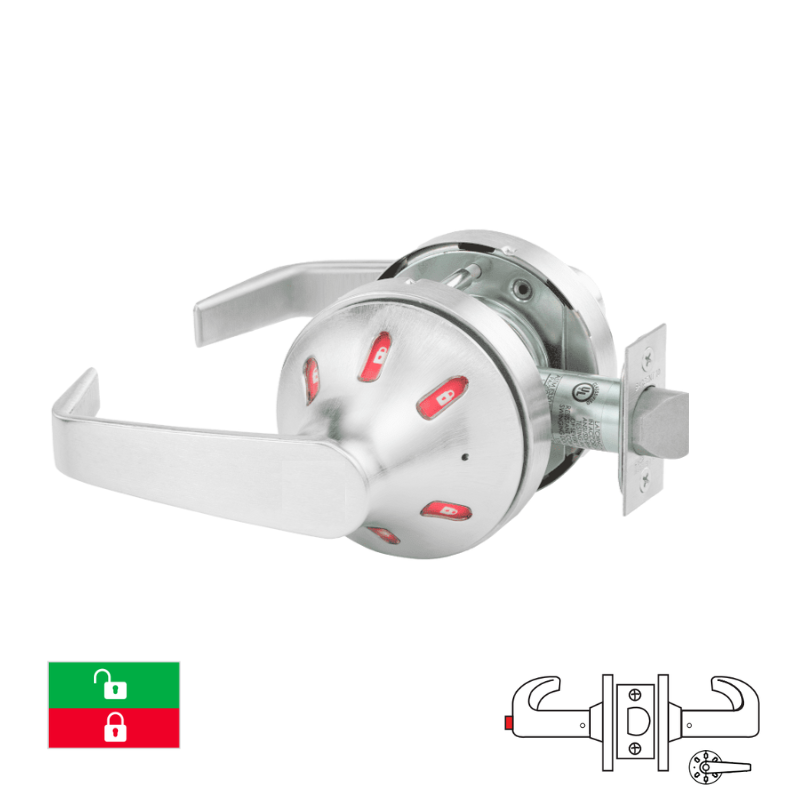

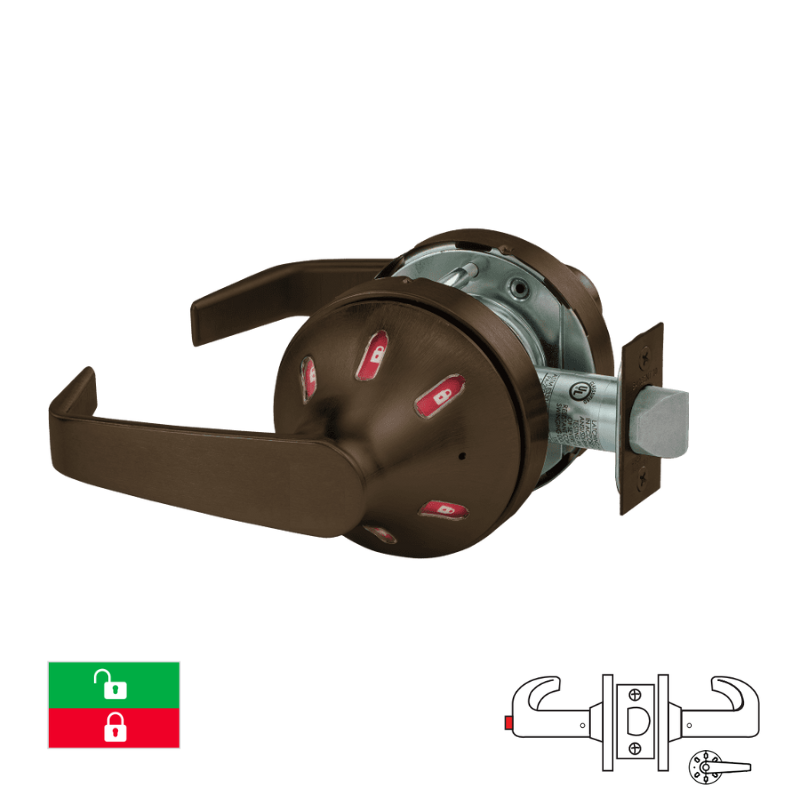

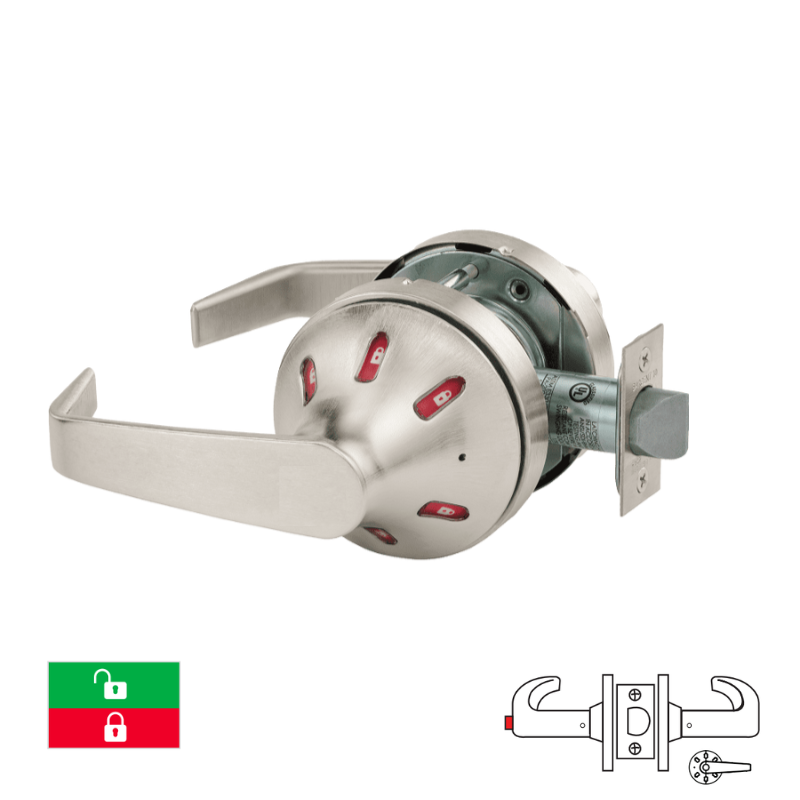

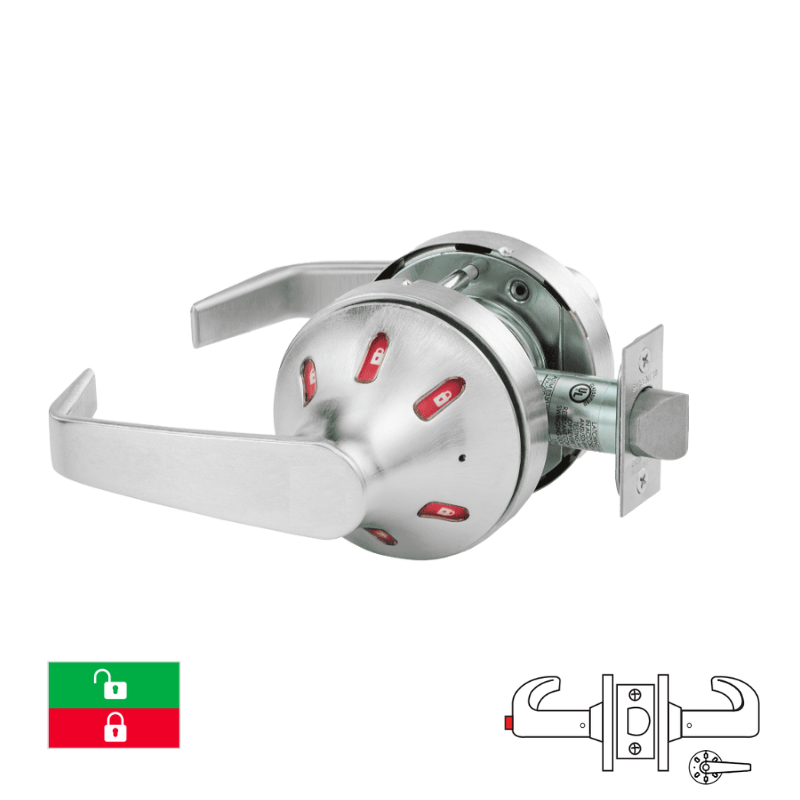

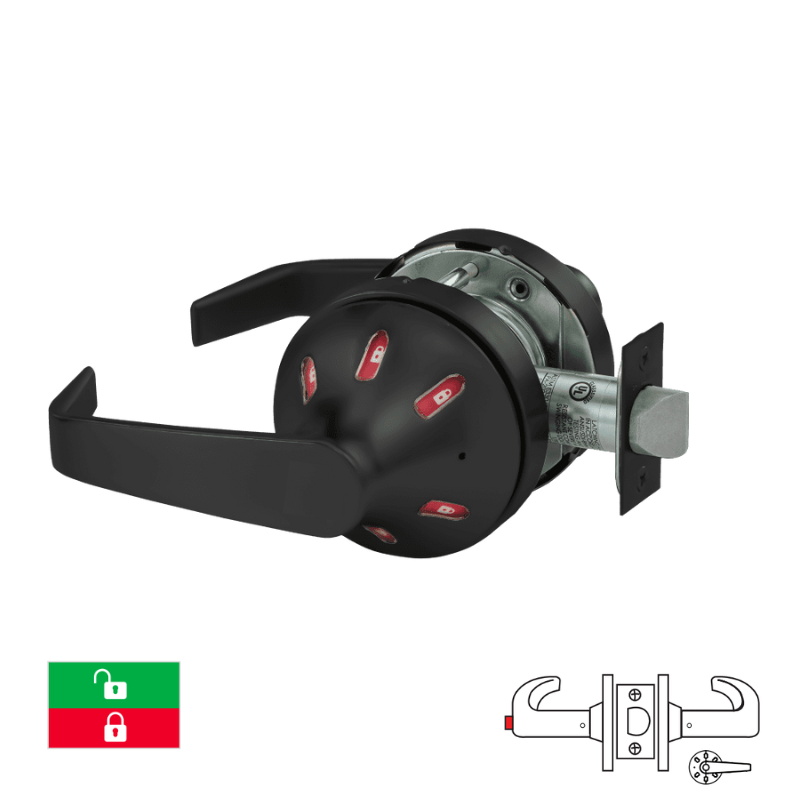

Sargent V30-10XU65-VSLL Privacy/Bathroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, Non-Keyed, Grade 1
The Sargent V30-10XU65-VSLL is a Grade 1 cylindrical lock designed for privacy and bathroom applications. It features a "VSL" rose with an "L" lever design, a green/red visual indicator on the outside trim, a 2 3/4" backset, a 4 7/8" strike, and operates without a key for enhanced privacy control.
Privacy/Bathroom Function:
- Latch by either lever unless outside lever is locked by push button in inside lever
- Turning inside lever or closing door releases button
- Emergency cointurn (key/tool p/n 14-0057, not provided) in outside lever releases inside button
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
