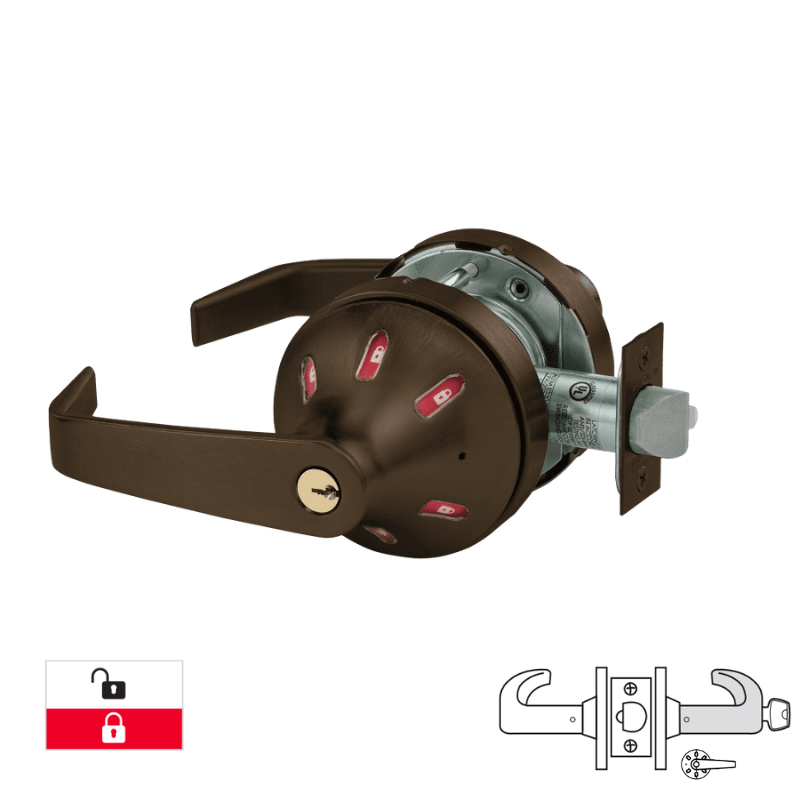

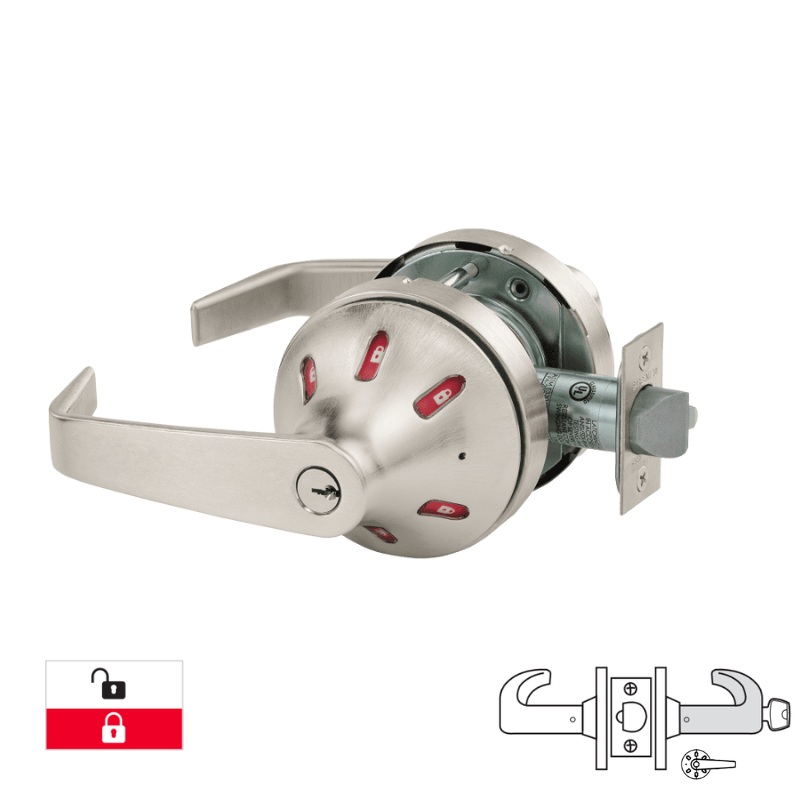

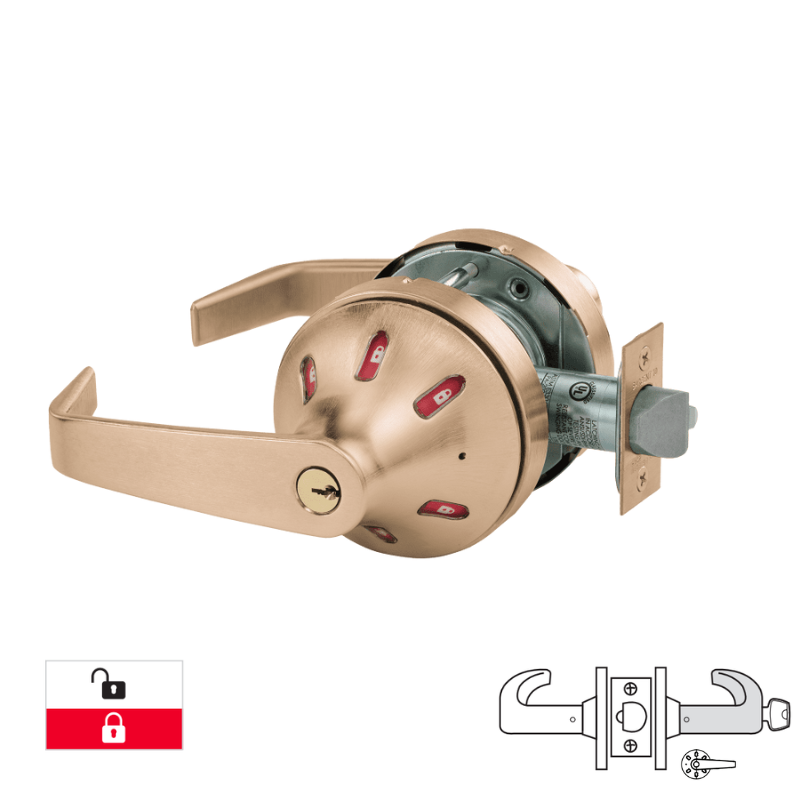

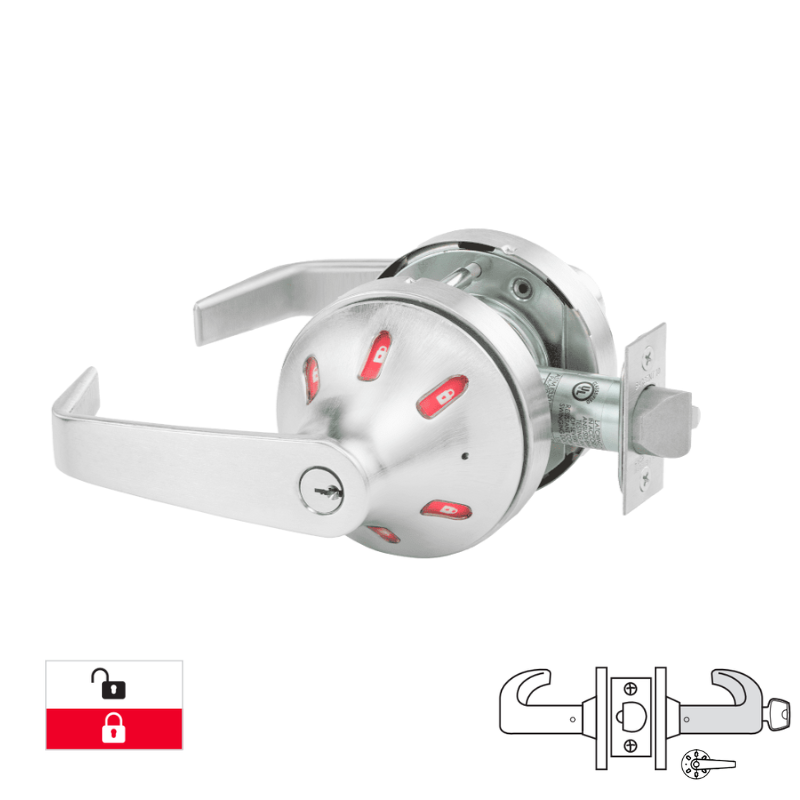

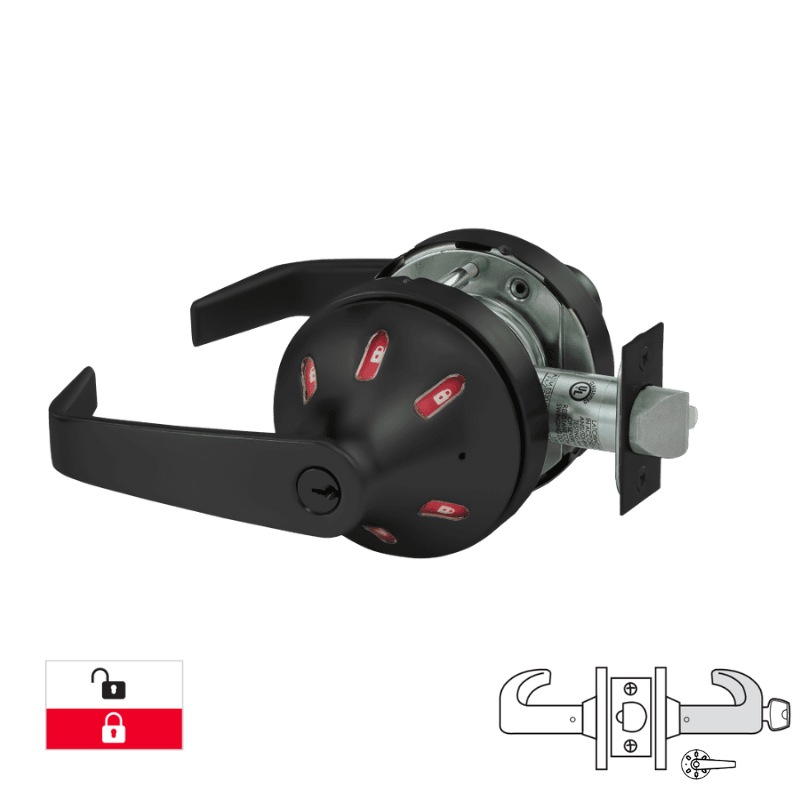

Sargent V60-10XG04-VSLL Storeroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
The Sargent V60-10XG04-VSLL is a Grade 1 storeroom function cylindrical lock featuring a "VSL" rose and an "L" lever design. It includes a white/red visual indicator trim on the outside and is configured with a 2 3/4-inch backset and a 4 7/8-inch strike plate. This lock is keyed random with an LA keyway and comes with two keys.
Storeroom or Closet Function:
- Deadlocking latch
- Latch by lever inside or key outside
- Outside lever locked at all times
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
