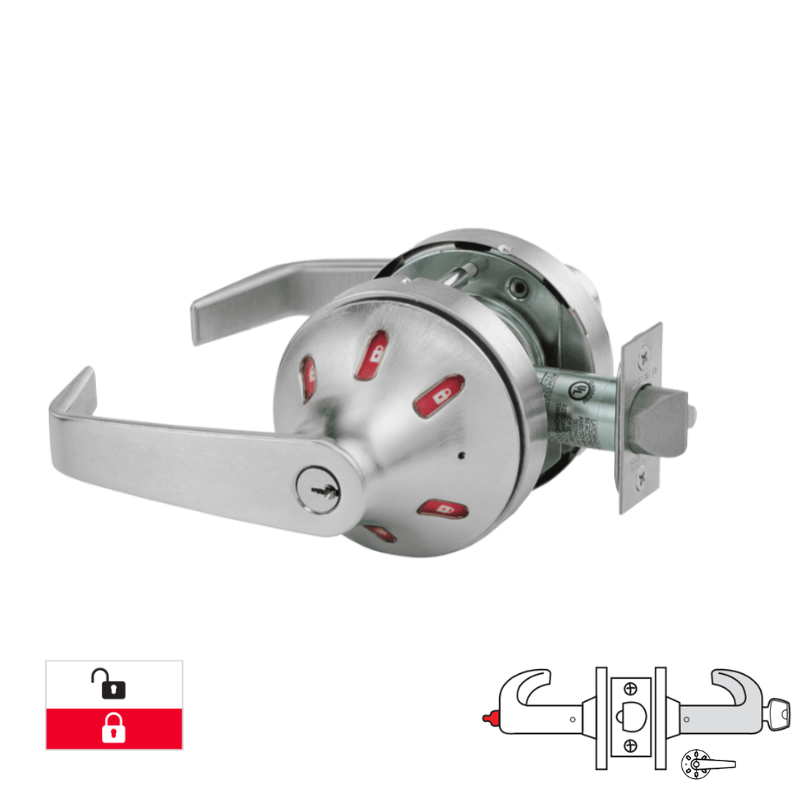

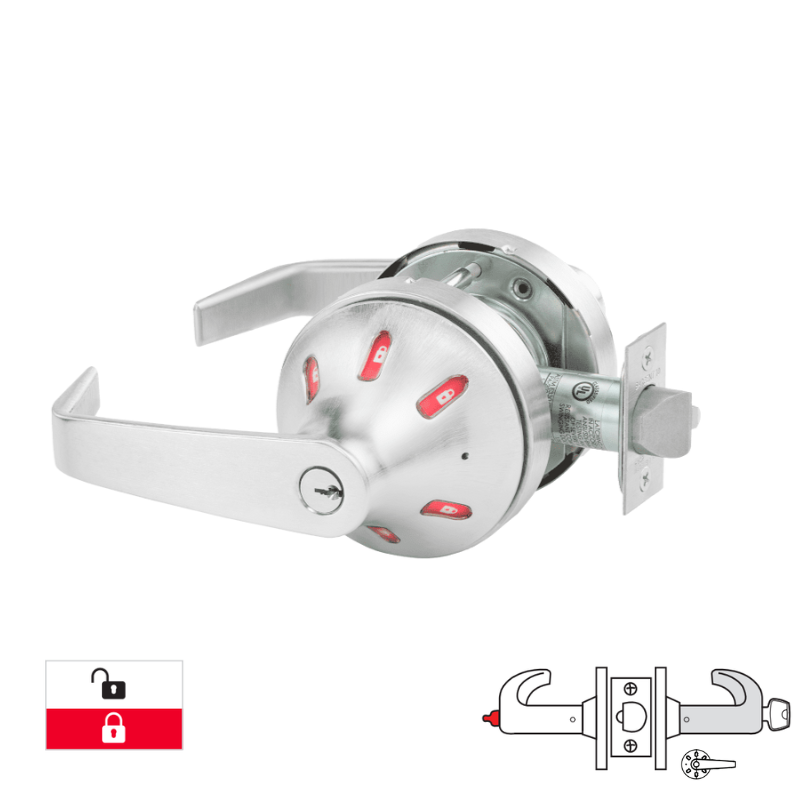

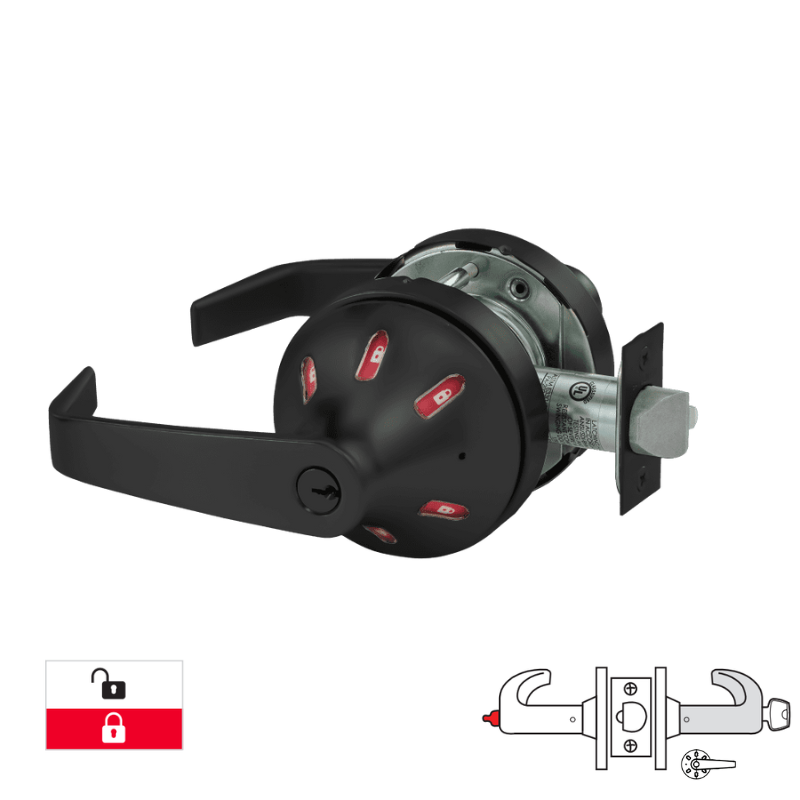

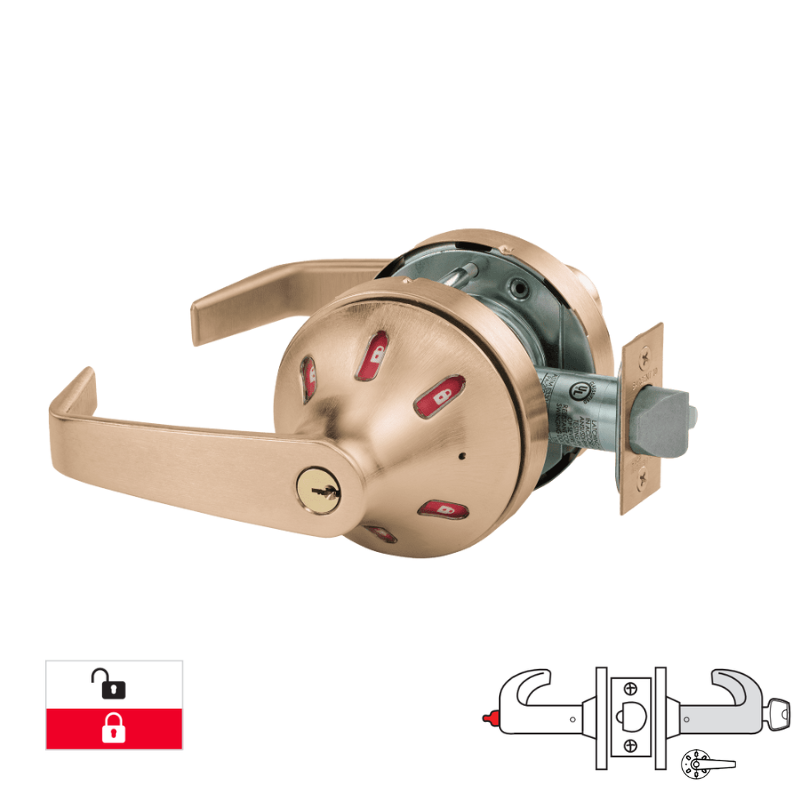

Sargent V60-10XG05-VSLL-LAKD Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
The Sargent V60-10XG05-VSLL-LAKD Office Function Cylindrical Lock features a "VSL" rose and "L" lever design, equipped with a white/red visual indicator trim on the outside only. It includes a 2 3/4" backset, 4 7/8" strike plate, and is keyed randomly with two keys in the LA keyway. This Grade 1 lock provides dependable security tailored for office use.

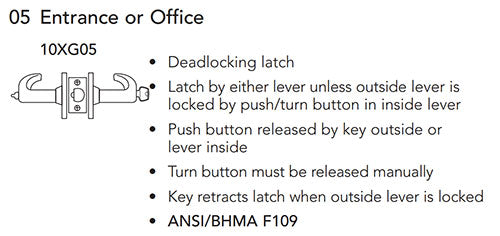

Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
Single Indicator:
Option Code |
Outside |
Inside |
Color |
V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
