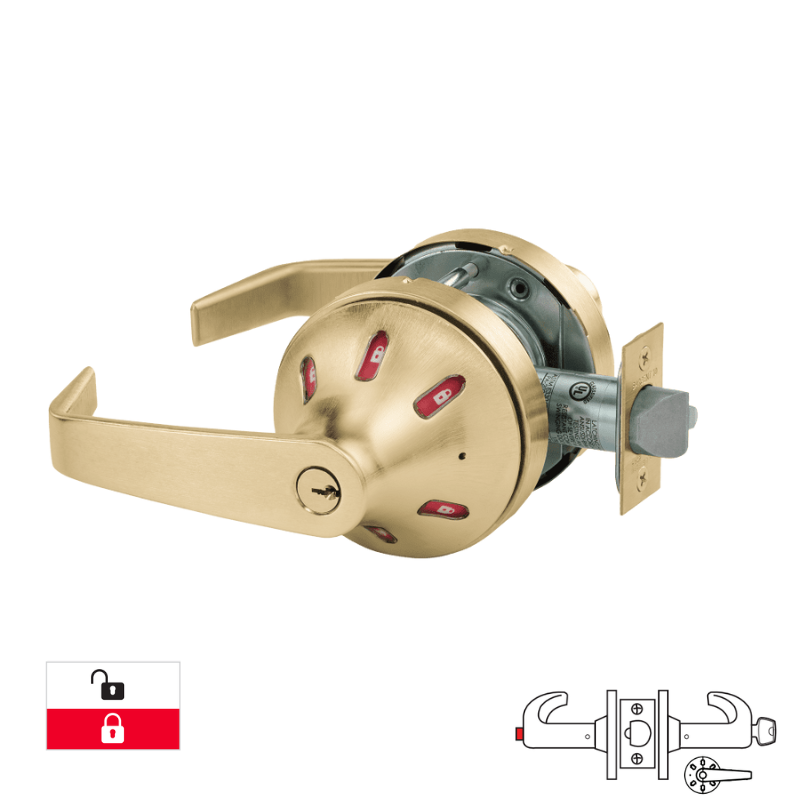

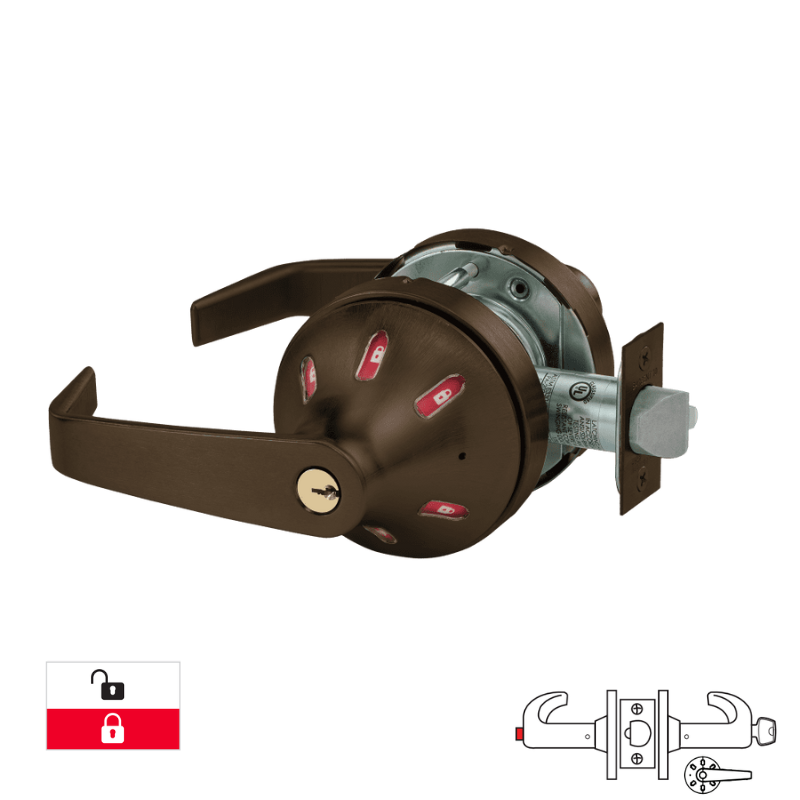

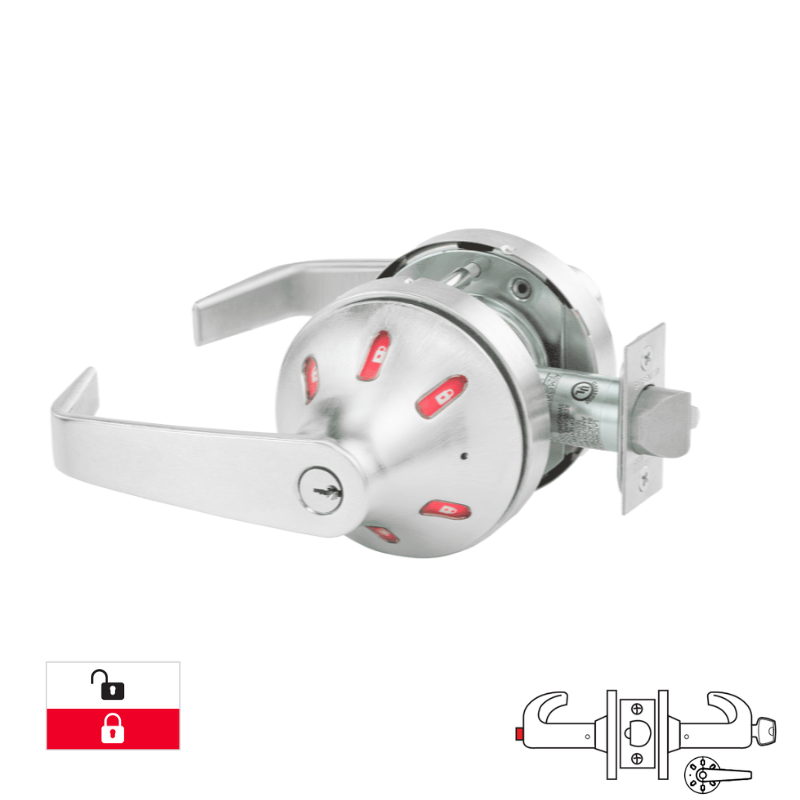

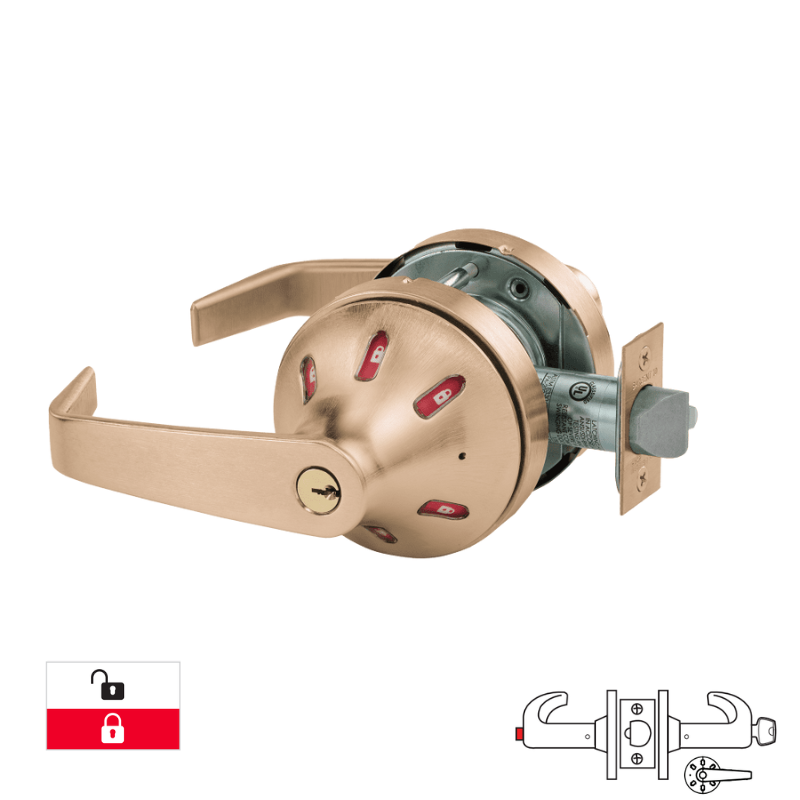

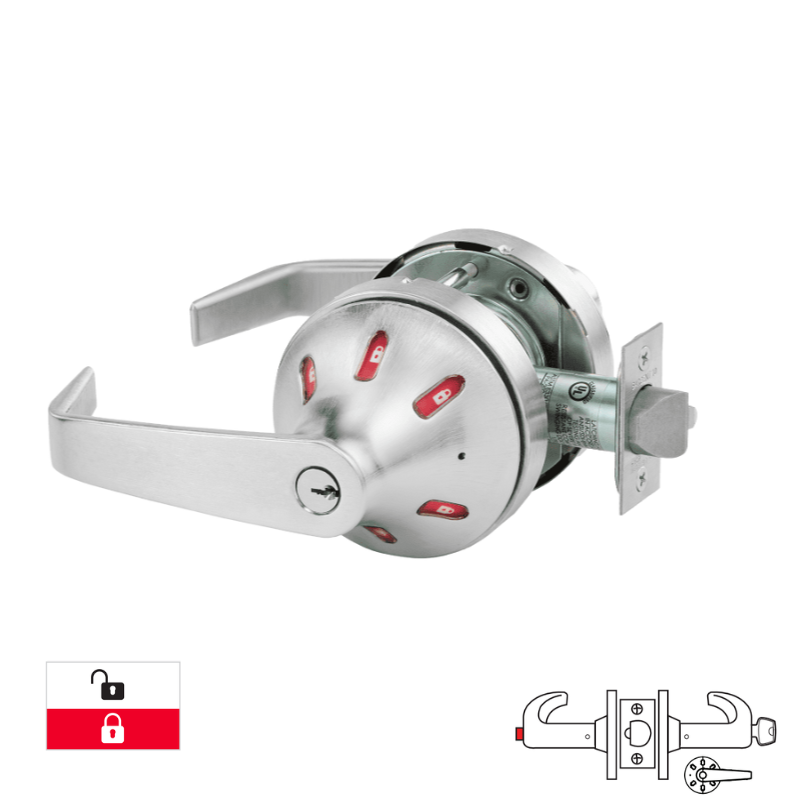

Sargent V60-10XG44-VSLL-LAKD Service Station Cylindrical Indicator Lock, Outside Only Visual Indicator

Sargent V60-10XG44-VSLL-LAKD Service Station Function Cylindrical Lock, Visual Indicator Trim Outside Only, LA Keyway Keyed Random [2] Keys, Grade 1, "VSL" Rose, "L" Lever Design, White/Red, 2 3/4 Backset, 4 7/8 Strike

Sargent V60-10XG44-VSLL-LAKD cylindrical lock delivers Grade 1 security for service station applications with exterior-only visual indicator functionality. Features LA keyway configuration with two random keys, VSL rose design, and L-pattern lever for reliable operation. White and red indicator trim provides clear occupancy status at a glance. Engineered with 2 3/4" backset and 4 7/8" strike for standard commercial door installations. Ideal for controlling access to service areas while maintaining visual monitoring capabilities.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F92

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
