Product Cut Sheet
Description
Active

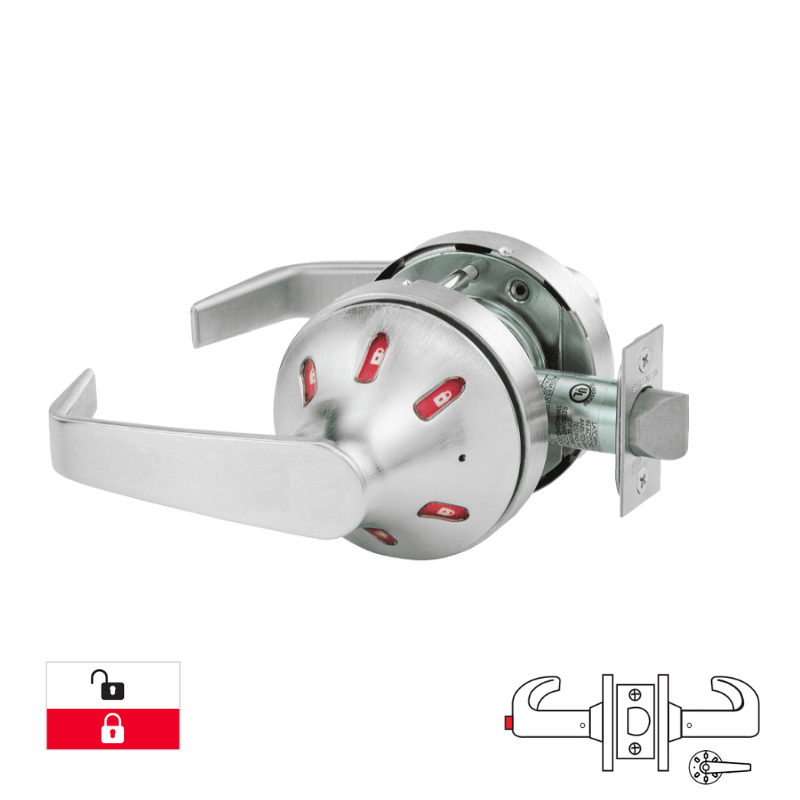

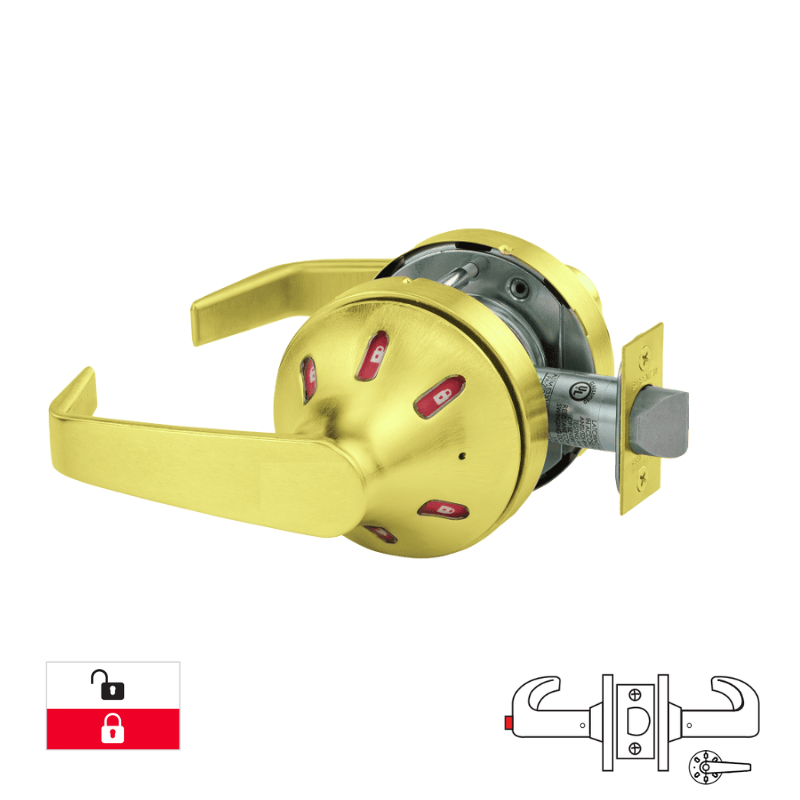

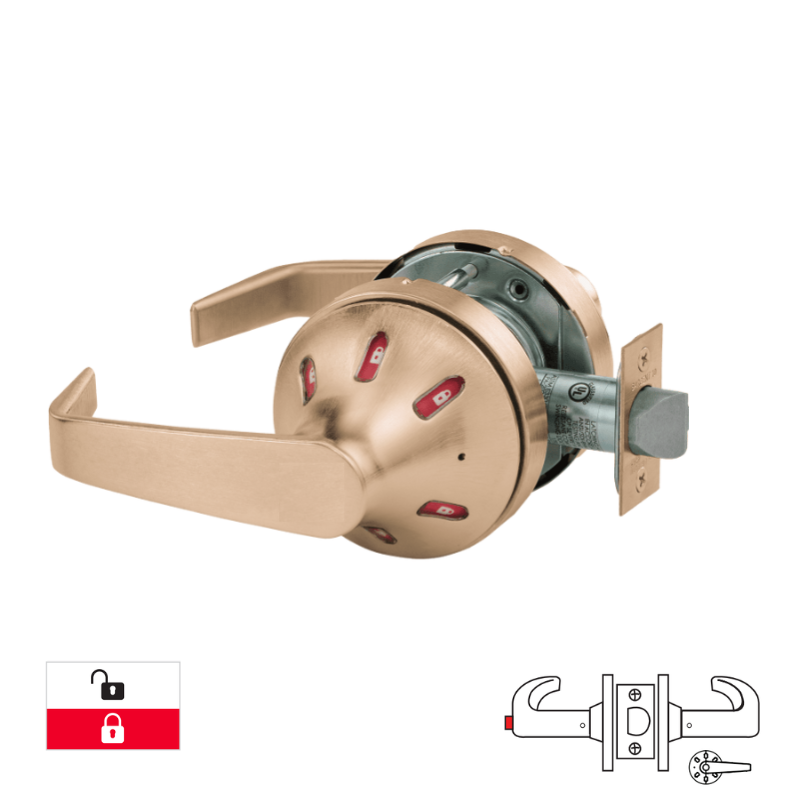

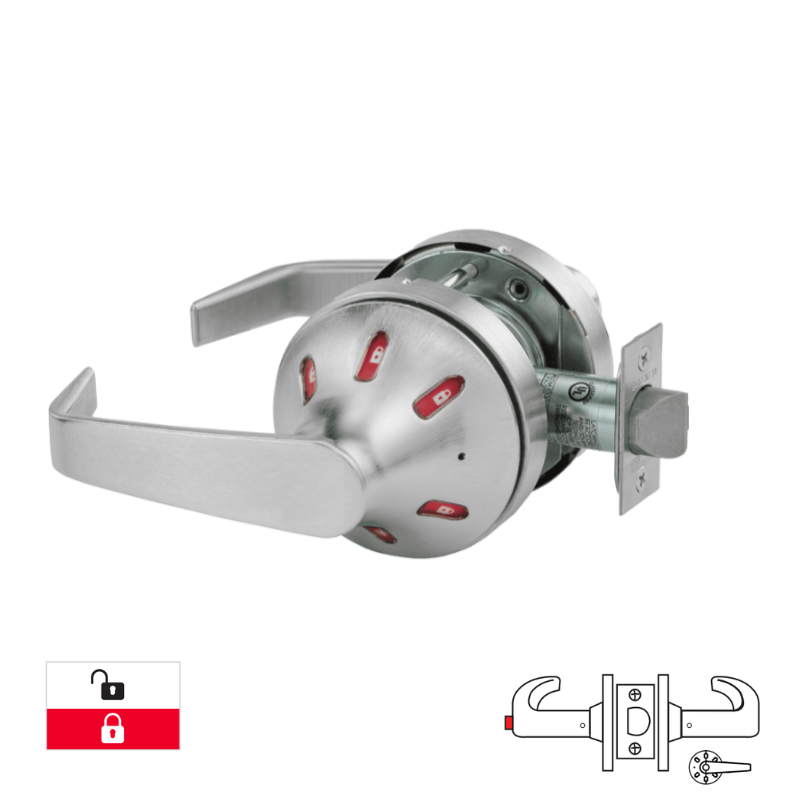

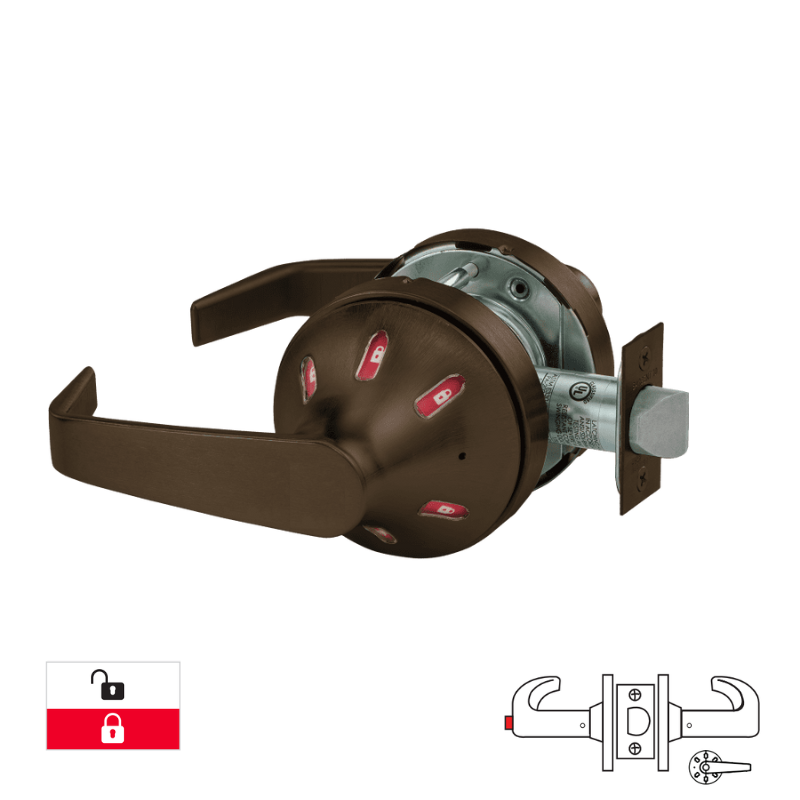

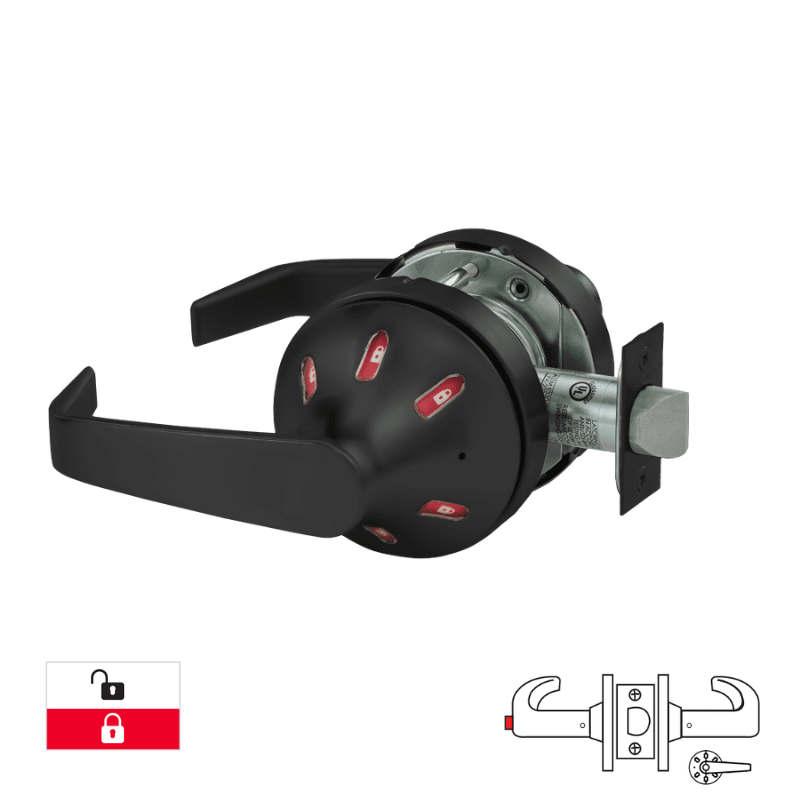

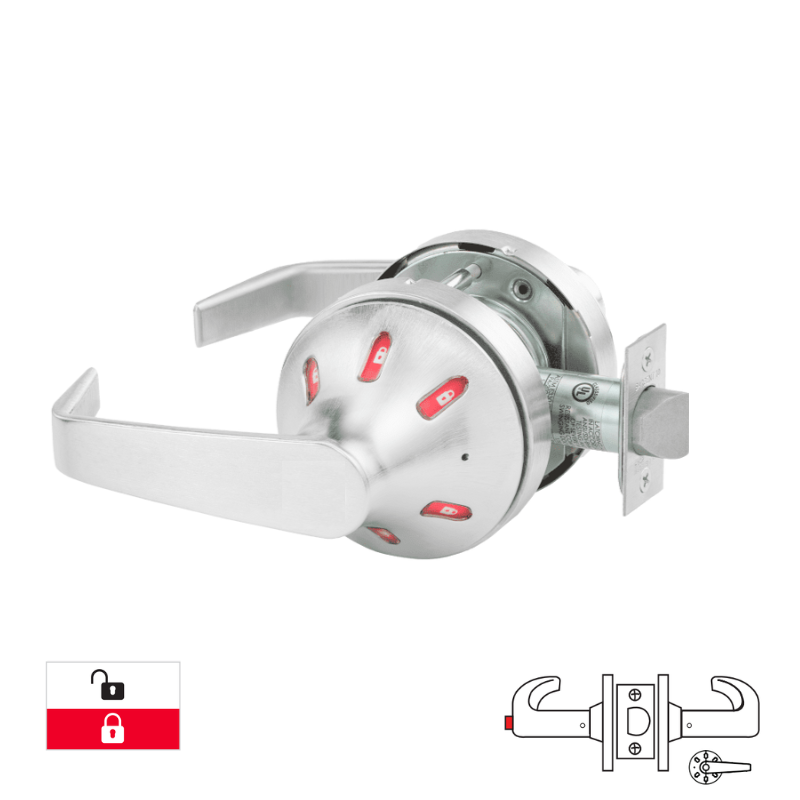

Sargent V60-10XU65-VSLL Privacy/Bathroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, Non-Keyed, Grade 1
Sargent V60-10XU65-VSLL cylindrical lock designed for privacy and bathroom use features a "VSL" rose and an "L" style lever. It includes a white/red visual indicator trim on the outside, has a 2 3/4 inch backset and a 4 7/8 inch strike plate. This non-keyed lock meets Grade 1 standards for durability and security.
Privacy/Bathroom Function:
- Latch by either lever unless outside lever is locked by push button in inside lever
- Turning inside lever or closing door releases button
- Emergency cointurn (key/tool p/n 14-0057, not provided) in outside lever releases inside button
Single Indicator:
| Option Code | Outside | Inside | Color |
| V30 | Indicator Trim | Standard Trim | Green/Red - Icon |
| V60 | Indicator Trim | Standard Trim | White/Red - Icon |
| V03 | Standard Trim | Indicator Trim | Green/Red - Icon |
| V06 | Standard Trim | Indicator Trim | White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
| Manufacturer | Sargent |
| SKU | V60-10XU65-VSLL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Application | Indicator with Icons |
| Function |
65-Privacy/Bathroom
|
| Lever/Knob Design |
L Lever
|
| Rose/Escutcheon Design |
VSL Rose
|
| Cylinder Type |
Non-Keyed
|
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
