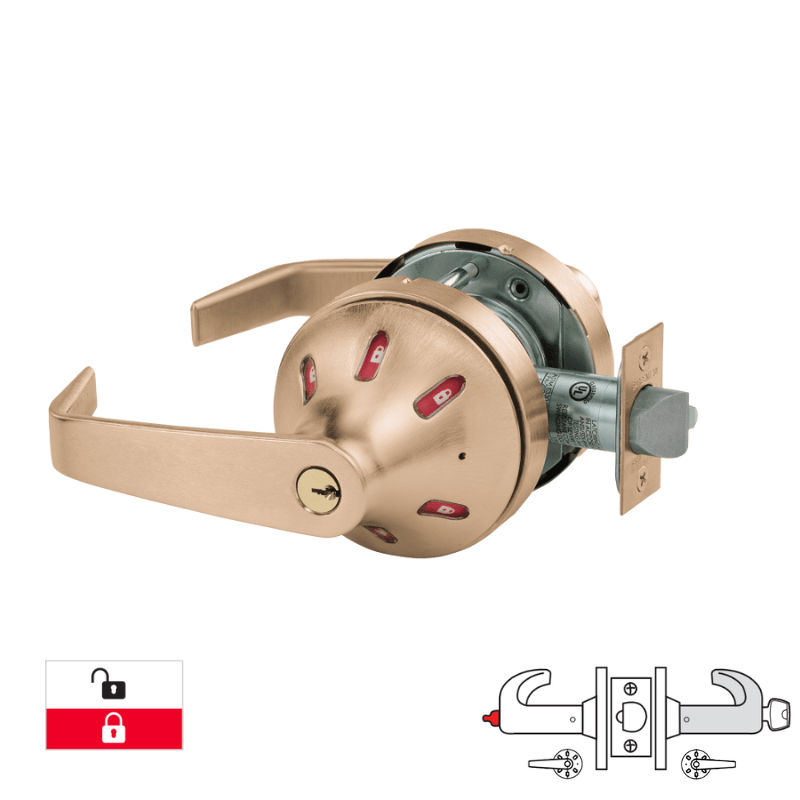

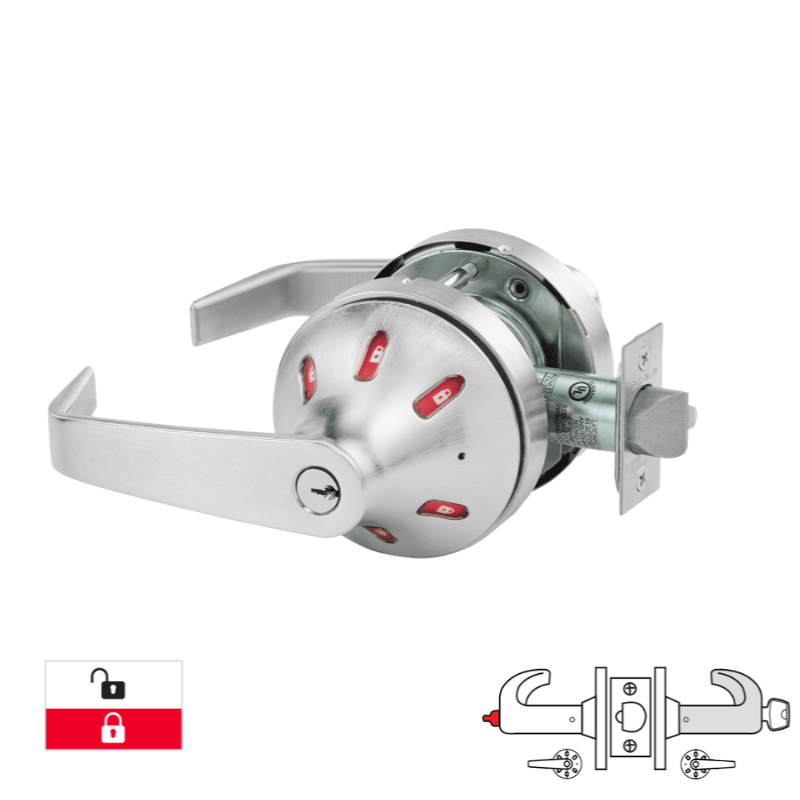

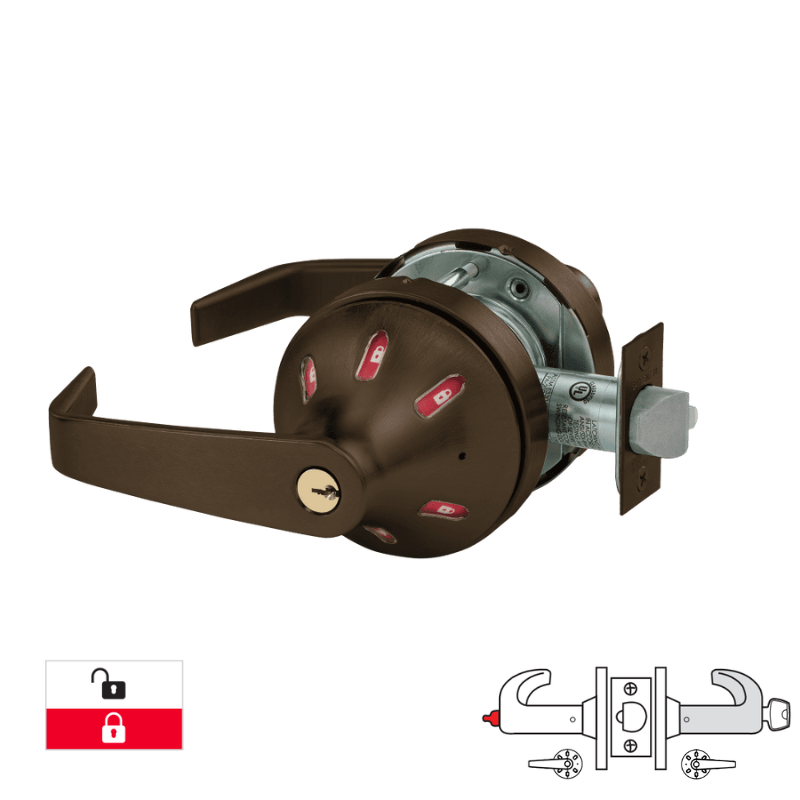

Sargent V66-10XG05-VSLL-LAKD Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Side, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
The Sargent V66-10XG05-VSLL-LAKD is a Grade 1 office function cylindrical lock featuring a "VSL" rose and "L" lever design. It includes a visual indicator trim on both sides in white/red, with a 2 3/4" backset and 4 7/8" strike. This model comes with an LA keyway, randomly keyed, and includes two keys for secure and reliable access control.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
Double Indicator:
| Option Code |
Outside |
Inside |
Color |
| V33 |
Indicator Trim |
Indicator Trim |
Green/Red - Icon |
| V66 |
Indicator Trim |
Indicator Trim |
White/Red - Icon |
| V77 |
Indicator Trim |
Indicator Trim |
Green/Red - Icon |
| V88 |
Indicator Trim |
Indicator Trim |
White/Red - Icon |
