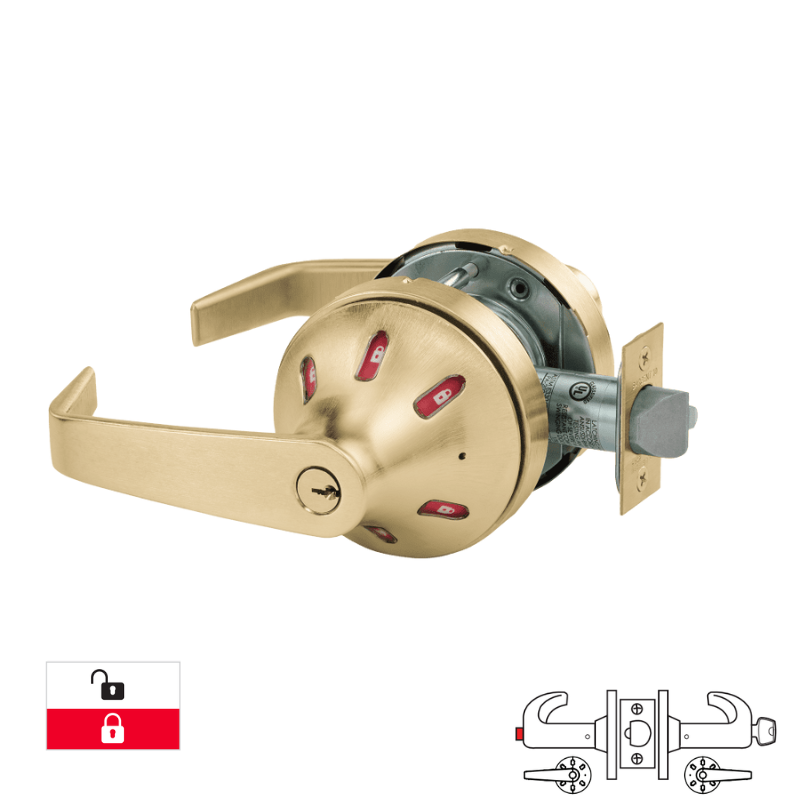

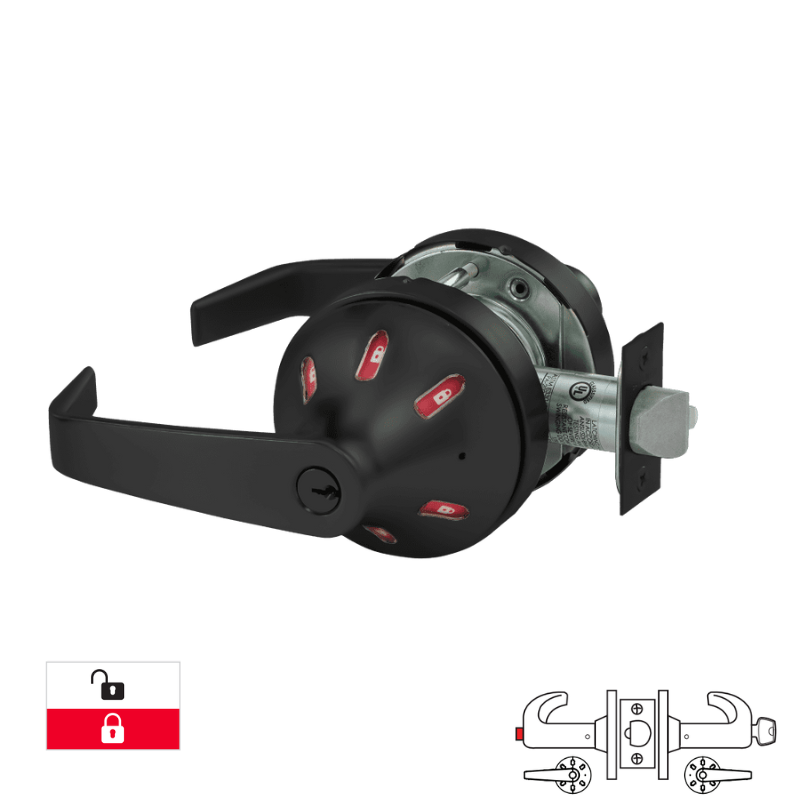

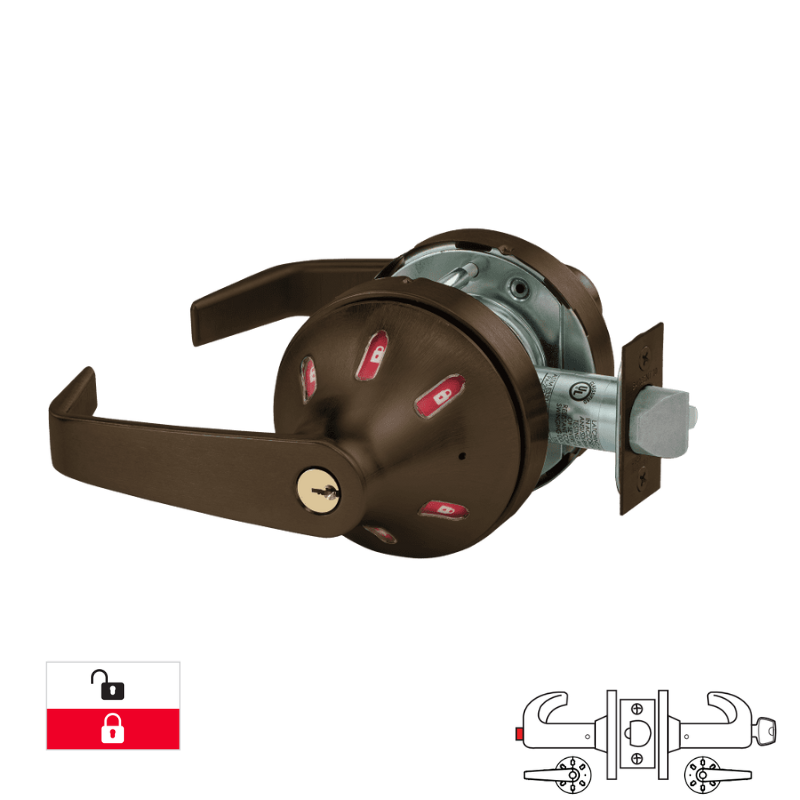

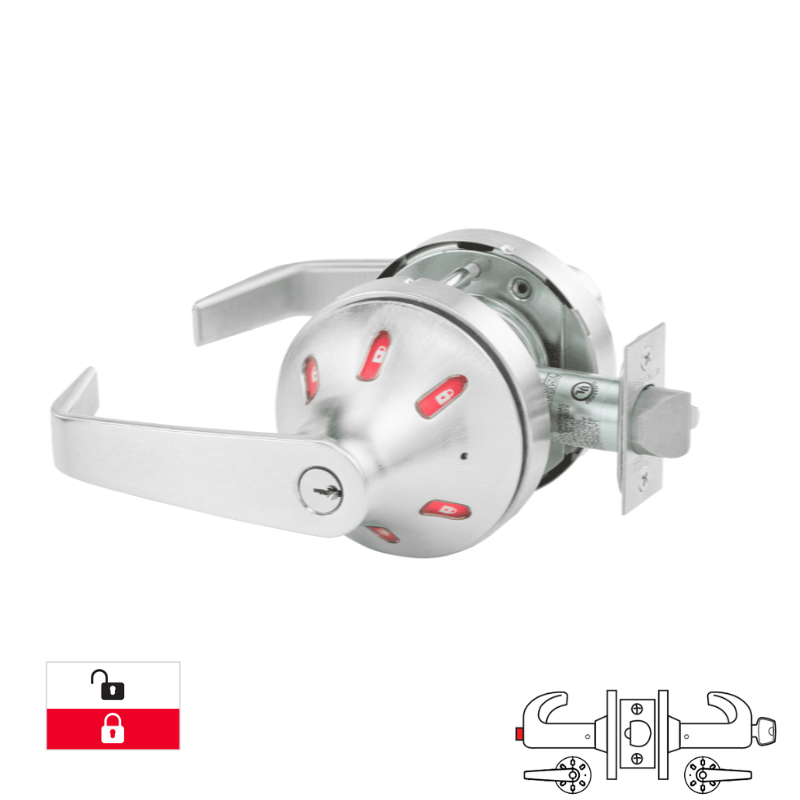

Sargent V66-10XG44-VSLL-LAKD Service Station Cylindrical Indicator Lock, Both Sides Visual Indicator

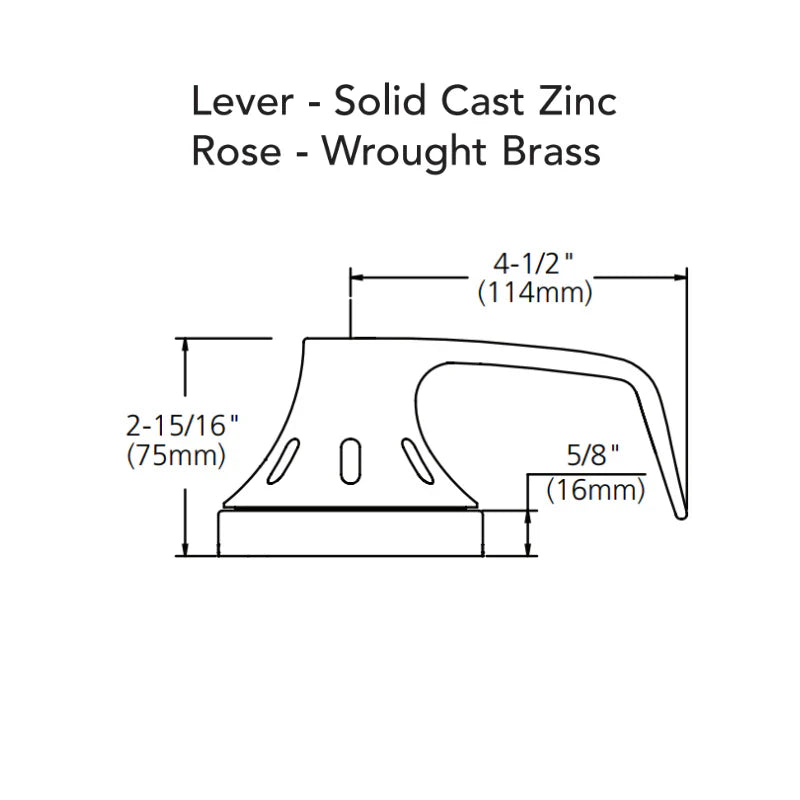

Sargent V66-10XG44-VSLL-LAKD Service Station Function Cylindrical Lock, Visual Indicator Trim Both Sides, 2 3/4 Backset, 4 7/8 Strike, "VSL" Rose, "L" Lever Design, LA Keyway Keyed Random [2] Keys, Grade 1, White/Red

 Sargent V66-10XG44-VSLL-LAKD cylindrical lock engineered for service station applications with dual-sided visual indicator trim. Features Grade 1 security rating, 2 3/4" backset, and 4 7/8" strike compatibility. Equipped with VSL rose configuration and L-pattern lever design. LA keyway supplied with two random keys. White and red indicator finish provides clear occupancy status visibility from both sides of the door.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F92

Double Indicator:
